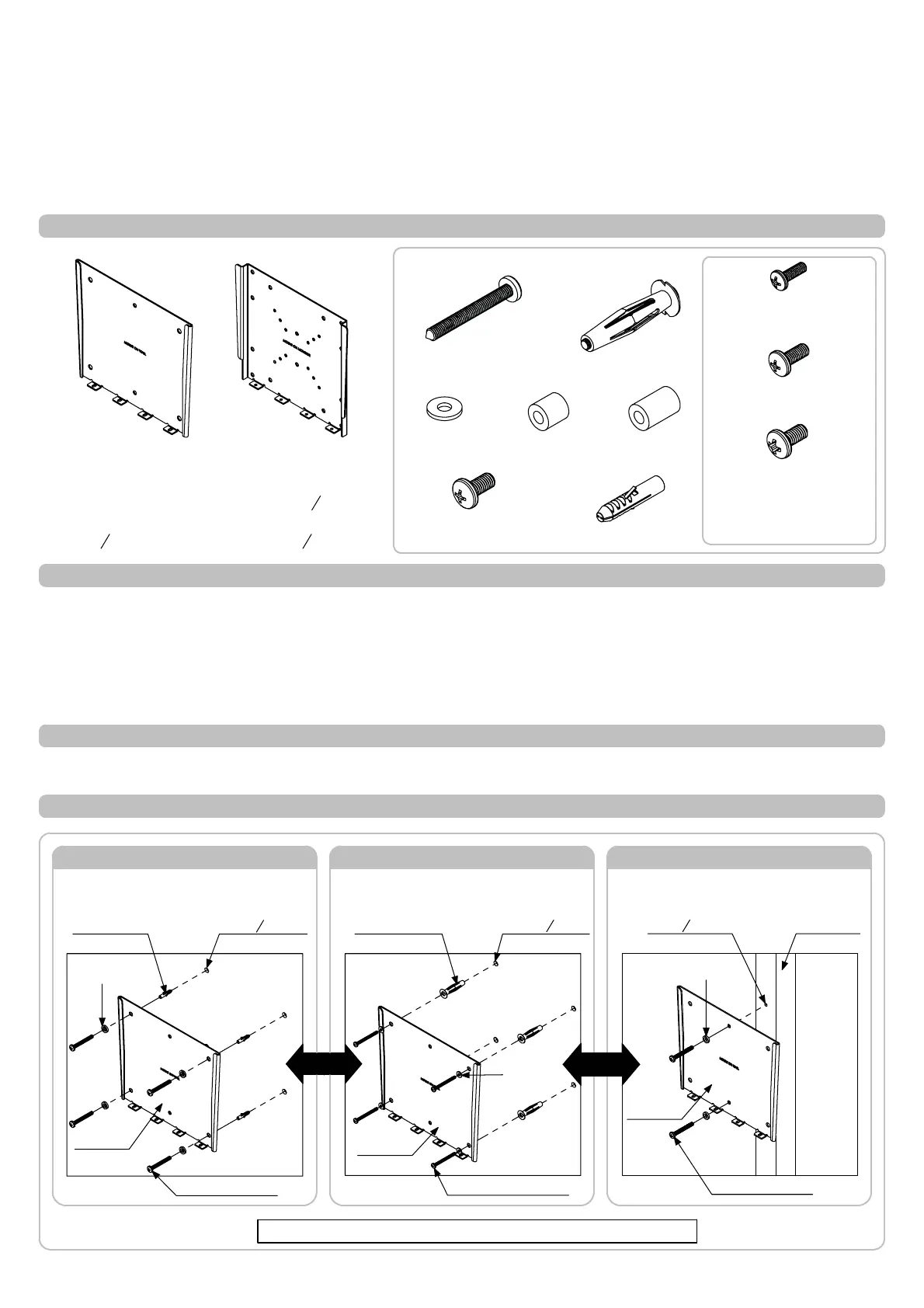

Side 1/2

Plastic Anchor (x4)

Self-Tapping Screw (x4)

Hardware

Dry Wall Anchor (x4)

M6 Washer

(x4)

M4x12/25/30mm

(x4 each)

M5x12/25/30mm

(x4 each)

M6x12/25/30mm

(x4 each)

Display Mounting

Screws

Self-Tapping Screw

M6 Washer

Wall Plate

Plastic Anchor

8mm (

") Hole

Dry Wall

Timber Stud

10mm (

") Hole

Dry Wall Anchor

Dry Wall Anchor Screw

Washer

Wall Plate

Self-Tapping Screw

M6 Washer

Wall Plate

4mm (

") Hole

Timber Stud

13mm Spacer

Bush (x4)

20mm Spacer

Bush (x4)

M5x10mm

Security Screw (x4)

Components Checklist

Wall Plate

Display Plate

IMPORTANT INFORMATION

! IMPORTANT - Install Wall Mount as per Installation Instructions.

! This product supports a maximum load of 50kg (110lbs).

! This products only supports VESA compliant displays with 50mmx50mm (2"x2"), 75mmx75mm (3"x3"),

100mmx100mm (4"x4"), 120mmx180mm (4¾"x7"), 200mmx100mm (8"x4") and 200mmx200mm

(8"x8") mounting hole patterns.

! The manufacturer does not accept responsibility for incorrect installation.

Step 1. Check Components

Check you have received all parts against the component checklist and Hardware above.

Step 2. Mounting the Wall Plate

Tip: Use a spirit level to ensure wall plate is horizontal

Masonry Wall

Tools Required:

Power Drill



4mm (

") drill bit



Phillips Head screwdriver 

8mm (

") masonry drill bit



10mm (

drill bit



Spirit Level



Installation Instructions

Flat Screen Wall Mount | Fixed

TH-2250-VF

Produkspesifikasjoner

Merke:	Atdec
Kategori:	veggfeste
Modell:	TH-2250-VF
Pakkevekt:	1600 g
Produktfarge:	Sølv
Skjermstørrelsekompabilitet:	20 - 47 "
Monteringsgrensesnitt:	VESA 100mm x 100mm / 100mm x 200mm / 200mm x 200mm
Montasjetype:	Vegg
Pakningsstørrelse (BxDxH):	254 x 36 x 238 mm
Vekt (maks):	50 kg
