Side 1/2

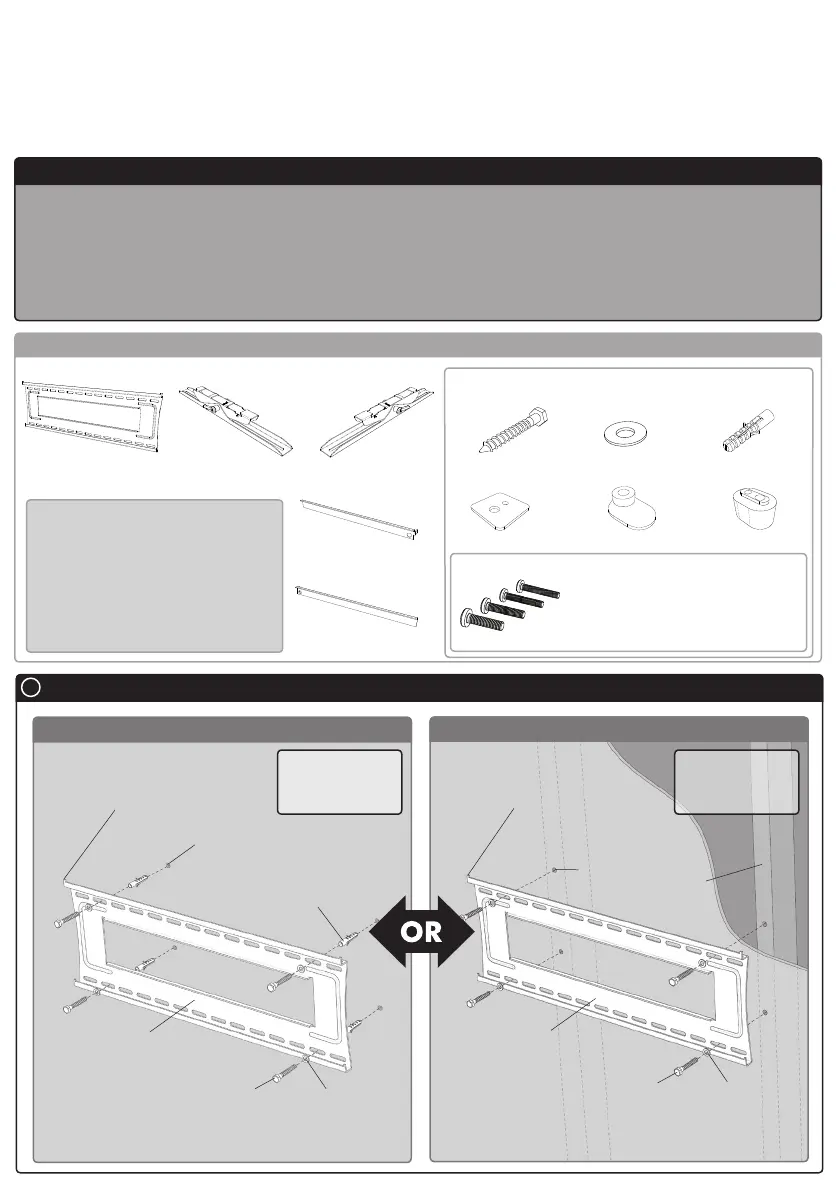

Component Checklist
Bits Bag
Installation Instructions
TELEHOOK
32”-63” WALL TILT
Mounting the Wall Plate
A
Timber Stud Wall
Masonry Wall

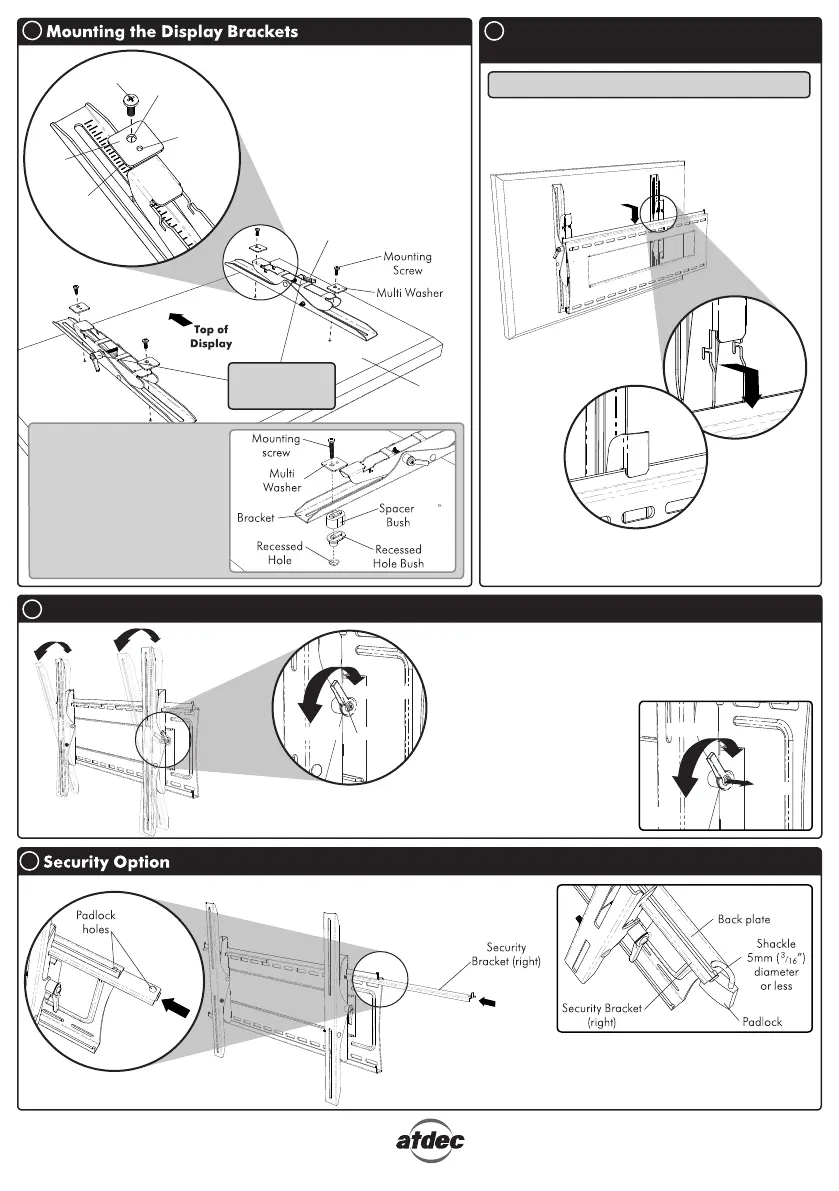

Display Bracket (left)
Wall Plate
Coach Screw (x4)
Masonry Wall Plug (x4)
Washer (x4)
Recessed Hole Bush (x4)
Washer
Masonry
Wall Plug
Wall Plate
12mm (
1
/
2
”)
Hole
Note: Ensure the Wall Plate
is mounted with the folded
tabs pointing upwards.
Coach Screw
8mm (
5
/
16
”)
Hole
Important Notes
TOOLS REQUIRED:
l
Power Drill
l
12mm (
1
/
2
) or 8mm (
5
/
16
) Drill Bit
l
Phillips Head Screw Driver
l
Spirit Level
l
17mm (
11
/
16
”) Socket Wrench or
Shifter
l
The Telehook 32-63 Wall Tilt supports LCD and Plasma Flat Panel Displays from 32” (81cm)
to 63” (160cm) and supports a maximum load of 91kgs (200lbs).
l
This product suits displays with mounting hole patterns from 180mm to 740mm wide (7”-29”) by 100mm to
500mm high (4”-20”).
l
The manufacturer does not accept responsibility for incorrect installation.
Security Bracket (right)
Security Bracket (left)
Multi Washer (x4)
Spacer Bush (x4)
Mounting Screws
M8x15mm / M8x35mm / M8x45mm (x4 each)
M6x15mm / M6x35mm / M6x45mm (x4 each)
M5x15mm / M5x35mm / M5x45mm (x4 each)
M4x15mm / M4x35mm / M4x45mm (x4 each)
Cross Recessed Screws
TIP: Use a spirit
level to ensure
that the wall plate
is horizontal
Note: Ensure the Wall Plate
is mounted with the folded
tabs pointing upwards.
Wall Plate
Coach Screw
Washer
Timber
Stud
Display Bracket (right)
TIP: Use a spirit
level to ensure
that the wall plate
is horizontal
