Component Checklist
Step 1. Component Checklist
Check you have received all parts against the Component Checklist above.
Hardware
Mounting Fasteners
M8 x 20mm
Screw (x4)
M8 x 40mm
Screw (x4)
Cable Access
Support (x1)

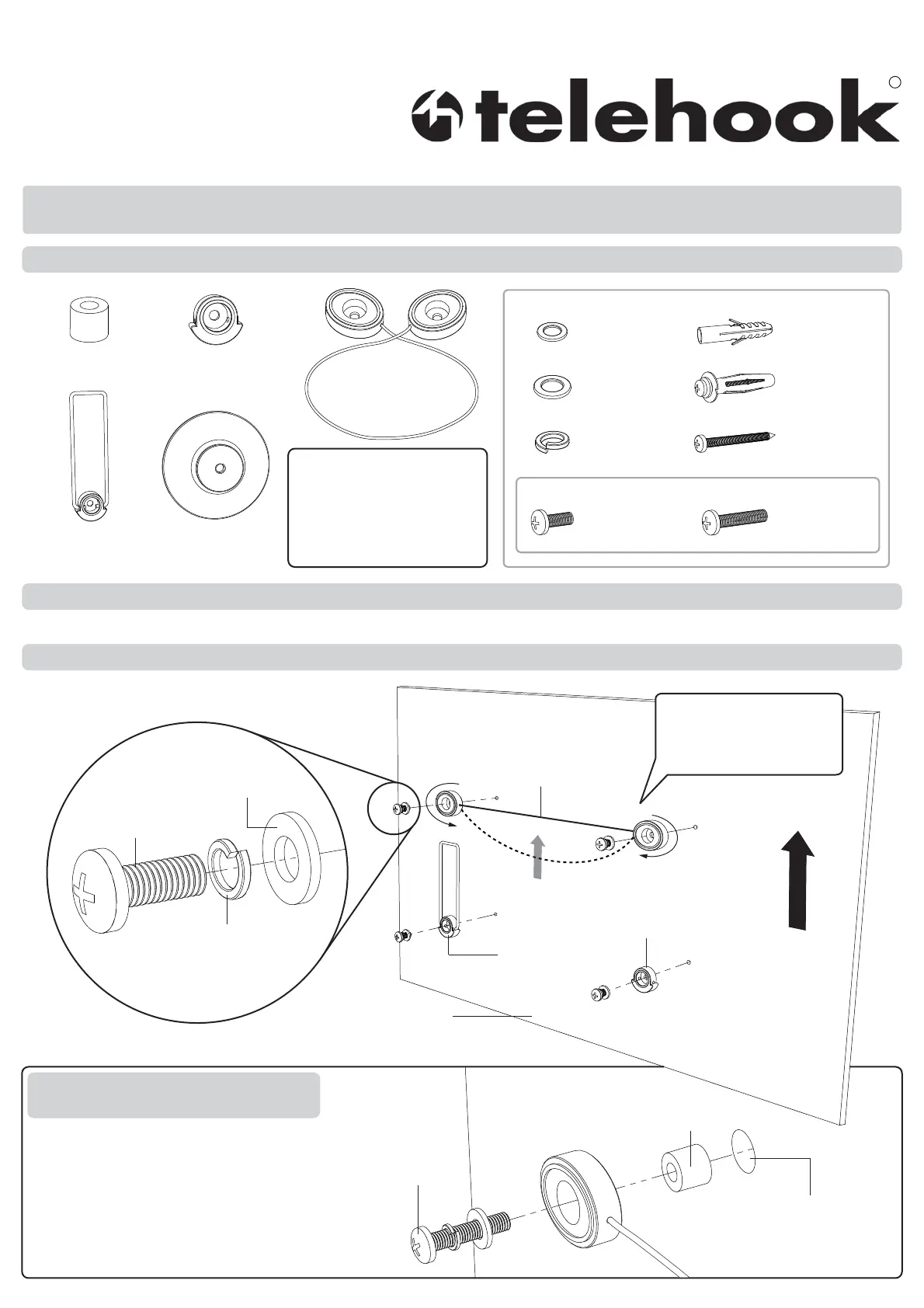

Step 2. Attach Wire Mount to the Display
Note: This product is suitable for LED/LCD displays with VESA mounting hole configurations 400mm (16”) wide, supporting a
maximum weight of 50 kg (110 lbs).

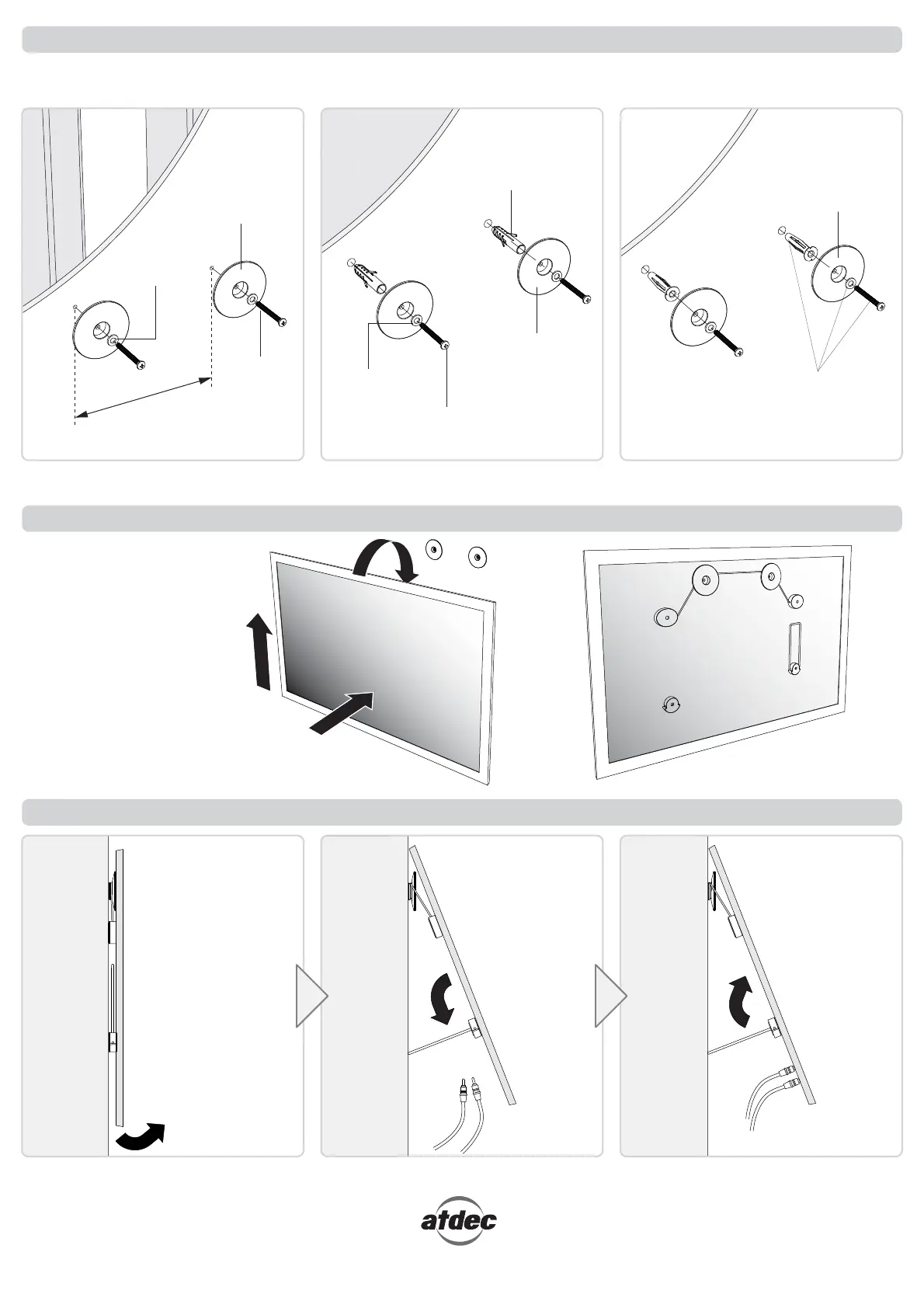

TH-400-LED

70
LED Slim Wall Mount
Installation Instructions
Nylon
Anchor (x2)
M6 Washer
(x2)
M8 Washer
(x4)
Dry Wall
Anchor (x2)
Wall Mount
Screw (x2)
M8 Spring
Washer (x4)
Attach the Wire Mount components to the Display
using the hardware supplied.
TOOLS REQUIRED:
UÊ*ÜiÀÊÀ
UÊ*ps Head Screw Driver
UÊ{Ê
3
/
16
”) Drill Bit
UÊnÊ
5
/
16
”) Masonry Drill Bit
UÊ£äÊ
3
/
8
”) Drill Bit
Ê*>Ìi
(x2)
Support (x1)
Wire Mount (x1)
Spacer Bush (x4)
Top of
Display
Spacer Bush
(x4)
Recessed
Mounting Hole
TWIST
TWIST
M8 Spring
Washer (x4)
M8 Washer
(x4)
M8 x 20mm
Screw (x4)
Display
Cable Access
Support
Support
Wire Mount
Recessed Mounting Holes or
Display with a Curved Rear Panel
If the Mounting Holes are recessed into the
back of the Display, or the Display has a
curved rear panel, use the Spacer Bushes
supplied to pack the Mounting Holes.
NOTE: Use the longer Mounting
Fasteners (M8 x 40mm) supplied.
M8 x 40mm
Screw (x4)
Back of Display
TIP: Ensure that the
Wire Mount is taut by
twisting the ends.
