Belkin F1DN102FLP-DP-3 Bruksanvisning

Belkin Bryter F1DN102FLP-DP-3

Les nedenfor 📖 manual på norsk for Belkin F1DN102FLP-DP-3 (27 sider) i kategorien Bryter. Denne guiden var nyttig for 6 personer og ble vurdert med 5.0 stjerner i gjennomsnitt av 3.5 brukere

Last ned PDF

Side 1/27

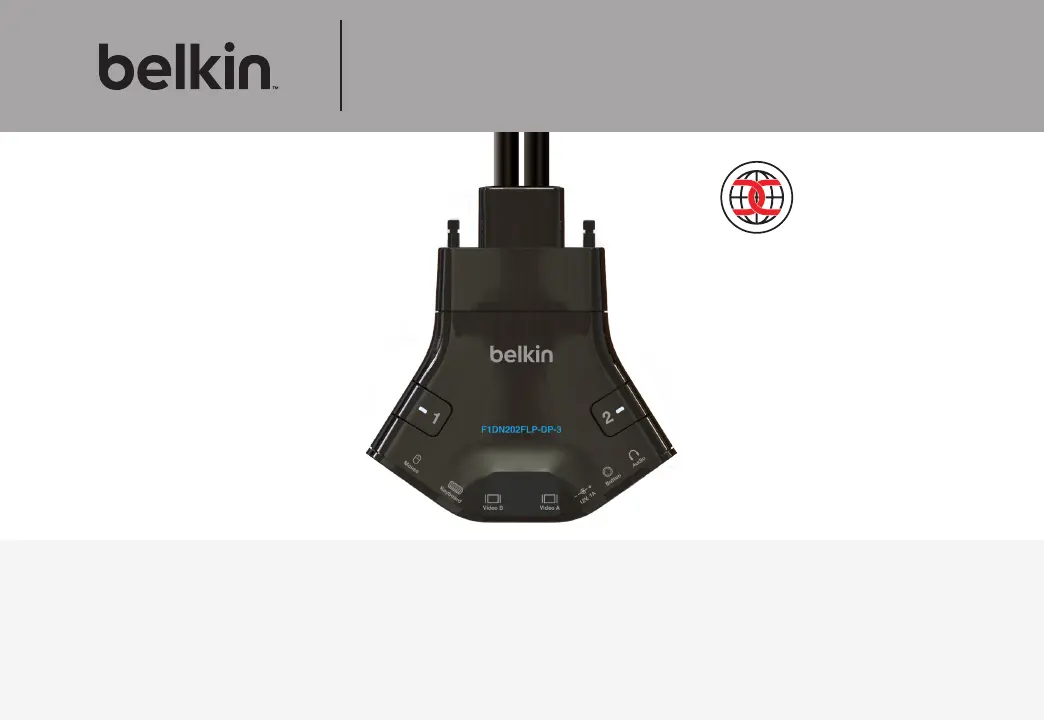

Advanced Secure 2-port DP to DP

Flip KVM Switch

User Manual

F1DN102FLP-DP-3 – Secure 2-port Flip DP-to-DP KVM with Audio, PP 3.0

F1DN202FLP-DP-3 – Secure 2-port Flip DP-to-DP Dual Head KVM with Audio, PP 3.0

Document Number -

LNKPG-00543 Rev. A00

This Belkin product is compliant

with latest NIAP Protection Proﬁle

PSS Ver. 3.0, which exceeds EAL4

and PP PSS Ver. 3.0.

Belkin Advanced Secure 2-port DP to DP Flip KVM Switch User Manual

TABLE OF CONTENTS

SECTIONS

1 2 3 4 5 6

Table of Contents

Introduction ..............................................1

Package Contents.........................................1

Overview.................................................2

Security Features .........................................2

Operational Features ......................................4

Flip KVM ................................................5

Equipment Requirements ...................................6

Safety Precautions ........................................8

User Guidance & Precautions ...............................9

Tamper Evident Labels ....................................10

Product Specifications ....................................11

F1DN102FLP-DP-3 Features ...............................12

F1DN202FLP-DP-3 Features ...............................13

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Before Installation ........................................14

Setup ..................................................17

Operation ...............................................18

Operating the Belkin Secure Flip KVM Switch .................18

Troubleshooting .........................................19

Information..............................................22

Produkspesifikasjoner

Merke:	Belkin
Kategori:	Bryter
Modell:	F1DN102FLP-DP-3
Innebygd skjerm:	Nei
LED-indikatorer:	Ja
USB-kontakttype:	USB Type-A
Maksimal oppløsning:	3840 x 2160 piksler
Sertifisering:	FCC, Class A UL CE, RoHS, ICES, RCM
Antall DisplayPorts:	1
USB-hub:	Ja
Utgangsstrøm:	12 V
Antall skjermer som støttes:	1
Antall datamaskiner:	2
Antall USB 2.0 Type-A hub-porter:	2
Videobåndbredde:	30 Hz
Lydtilkoblinger:	Ja
Produktfarge:	Sort
HD-type:	4K Ultra HD
Driftstemperatur (T-T):	-20 - 60 °C
Bærekraftsertifikater:	RoHS
Kroppsmateriale:	Akrylonitril-butadien-styren (ABS)
DC-inngangskontakt:	Ja
AC-adapter bunt:	Ja
Video tilkoblingstype:	DisplayPort
Tastatur tilkoblingstype:	USB
Mus tilkoblingstype:	USB
Konsoll porter:	DisplayPort
Trykk på knapp:	Ja
Sjerm bryter-knapp:	Ja
