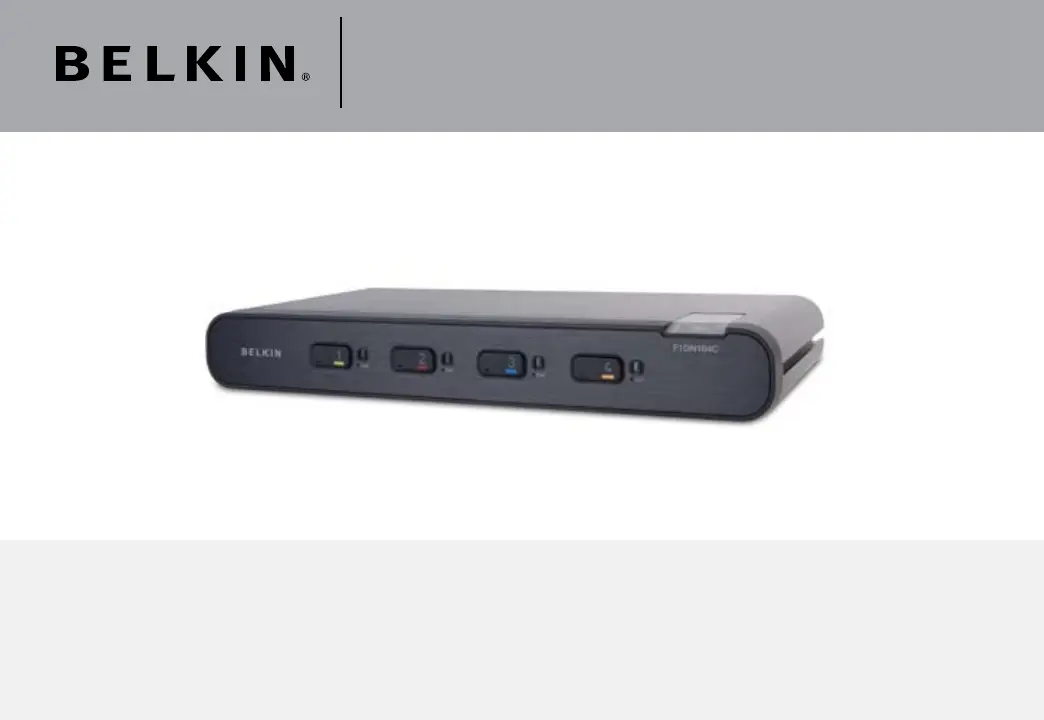

Secure DVI-I KVM Switch with Audio

User Manual

F1DN102B – Secure 2-Port DVI-I KVM with Audio

F1DN102C – Secure 2-Port DVI-I KVM with Audio Plus

F1DN104B – Secure 4-Port DVI-I KVM with Audio

F1DN104C – Secure 4-Port DVI-I KVM with Audio Plus

8820-00762 Rev. A00

Secure DVI-I KVM Switch with Audio

TABLE OF CONTENTS

SECTIONSTable of Contents 1 2 3 4 5 6 7 8SECTIONS 1 2 3 4 5 6 7 8Table of Contents

Operating the KVM Switch ............................... 14

Common Access Card (CAC) Configuration and Installation . . 15

Frequently Asked Questions ............................. 16

Troubleshooting ........................................ 17

Information............................................. 19

Introduction ............................................. 1

Package Contents ..................................... 1

Overview................................................ 2

Security Features ...................................... 2

Other Features ........................................ 4

Equipment Requirements ............................... 5

System Requirements .................................. 6

Unit Display Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Specifications......................................... 9

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Pre-Configuration .................................... 11

Connection and Installation............................. 11

Color Code Chip Installation ............................ 13

Secure DVI-I KVM Switch with Audio

INTRODUCTION

SECTIONSTable of Contents 1 2 3 4 5 6 7 8SECTIONSTable of Contents 1 2 3 4 5 6 7 8

Thank you for purchasing this Belkin Secure DVI-I KVM Switch (the

Switch). This KVM Switch is designed for use in secure defense and

intelligence installations. The Switch offers safe centralized control,

which prevents unintended data transfer between computers running

at different security levels. The Switch provides the highest security

safeguards and features that meet today’s IA (Information Assurance)

computing requirements.

This User Manual provides all the details you’ll need to install and

operate your new Switch, in addition to expert troubleshooting

advice—in the unlikely event of a problem.

Package Contents

• Belkin Secure DVI-I KVM Switch

• 12V 1.5A DC Power Supply and Power Cord

• 10 Interchangeable Port Color Chips (multiple colors)

• 12 Port-Naming Labels

• 6 Ft. USB Cable (F1DN102C, F1DN104C models only)

• User Manual

Important: This Switch is equipped with active anti-tamper

triggers. Any attempt to open the enclosure will activate the

anti-tamper triggers and render the unit inoperable. If the

unit’s enclosure appears disrupted or if all the port LEDs flash

continuously, please call Belkin Technical Support at

(800) 282-2355.

Produkspesifikasjoner

Merke:	Belkin
Kategori:	Bryter
Modell:	F1DN104C
Vekt:	1769 g
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Maksimal oppløsning:	2560 x 1600 piksler
Antall USB 2.0-porter:	11
Hodetelefonutganger:	5
Dimensjoner (B x D x H):	317.5 x 162.6 x 43.18 mm
Antall porter:	4
Antall datamaskiner:	4
Produktfarge:	Sort
Driftstemperatur (T-T):	0 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	-20 - 60 °C
Ekstern strømadapter:	Ja
DC-inngangskontakt:	Ja
Relativ luftfuktighet under drift (H-H):	-20 - 80
Video tilkoblingstype:	DVI-I
Tastatur tilkoblingstype:	USB, PS/2
Mus tilkoblingstype:	USB, PS/2
