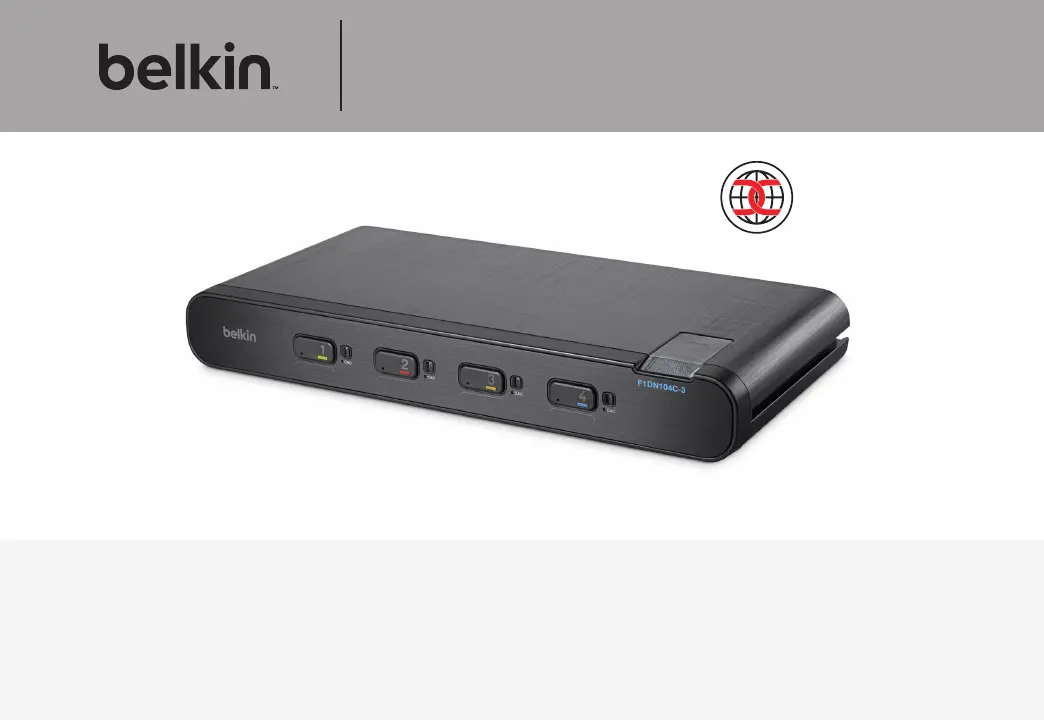

Advanced Secure 4-Port DVI-I

KVM Switch

User Manual

F1DN104B-3 – Belkin Advanced Secure DVI-I KVM Switch; 4-Port

F1DN104C-3 – Belkin Advanced Secure DVI-I KVM Switch; 4-Port Plus

Document Number 8820-02501 (A00)

This Belkin product is compliant

with latest NIAP Protection Proﬁle

PSS Ver. 3.0, which exceeds EAL4

and PP PSS Ver. 2.1.

Belkin

Secure DVI-I KVM Switch User Manual

TABLE OF CONTENTS

SECTIONS

1 2 3 4 5 6 87

Table of Contents

Introduction ..............................................1

Package Contents.........................................1

Safety Precautions ........................................2

User Guidance & Precautions ...............................3

Overview.................................................5

Security Features .........................................5

Tamper Evident Labels .....................................6

Other Features ...........................................7

Equipment Requirements ...................................8

System Requirements......................................9

Unit Display Diagrams ....................................11

Specifications ...........................................13

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Pre-Configuration ........................................14

Connection and Installation ................................15

Color Code Chip Installation ...............................17

Operating the KVM Switch ................................18

Common Access Card (CAC) Configuration and Installation ...19

Frequently Asked Questions...............................20

Troubleshooting .........................................21

Information..............................................23

Safety Statement ........................................23

Belkin

Secure DVI-I KVM Switch User Manual

INTRODUCTION

SECTIONS

Table of Contents

2 3 4 5 6 871

Thank you for purchasing this Belkin Advanced Secure DVI-I KVM

Switch (the Switch). This KVM Switch is designed for use in secure

defense and intelligence installations. The Switch offers safe centralized

control, which prevents unintended data transfer between computers

running at different security levels. The Switch provides the highest

security safeguards and features that meet today’s IA (Information

Assurance) computing requirements.

This User Manual provides all the details you’ll need to install and

operate your new Switch, in addition to expert troubleshooting advice—

in the unlikely event of a problem.

Important: This Switch is equipped with active anti-tamper triggers.

Any attempt to open the enclosure will activate the anti-tamper

triggers and render the unit inoperable. If the unit’s enclosure

appears disrupted or if all the port LEDs flash continuously, please

call Belkin Technical Support at (800) 282-2355.

Important Security Note:

If you are aware of potential security vulnerability while installing or

operating this product, we encourage you to contact us immediately

at the following email address: gov_security@belkin.com

Please note: Belkin Secure KVMs cannot be upgraded, serviced

or fixed.

Package Contents

• Belkin Advanced Secure DVI-I KVM Switch

• 12V 1.5A DC Power Supply

• One set of Interchangeable Port Color Chips (multiple colors)

• One set of Port-Naming Labels

• 6 Ft. USB Cable (F1DN104C-3 model only)

• User Manual

Produkspesifikasjoner

Merke:	Belkin
Kategori:	Bryter
Modell:	F1DN104B-3
Innebygd skjerm:	Nei
Vekt:	1700 g
Bredde:	320 mm
Dybde:	157.5 mm
Høyde:	44.2 mm
Strømkilde:	DC
USB-kontakttype:	USB Type-A, USB Type-B
Maksimal oppløsning:	3840 x 2160 piksler
Hodetelefonutganger:	1
AC-inngangsfrekvens:	50 - 60 Hz
Antall datamaskiner:	4
Lydtilkoblinger:	Ja
Produktfarge:	Sort
HD-type:	4K Ultra HD
Driftstemperatur (T-T):	0 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	-20 - 60 °C
Lagringsrelativ fuktighet:	0 - 80
Bærekraftsertifikater:	CE, Federal Communications Commission (FCC), RoHS
Antall DVI-I-porter:	5
Relativ luftfuktighet under drift (H-H):	0 - 80
Innput-strøm:	1.5 A
Video tilkoblingstype:	DVI-I
Tastatur tilkoblingstype:	USB, PS/2
Mus tilkoblingstype:	USB, PS/2
Konsoll porter:	3.5mm headphone, DVI-I, RJ-14, USB A, USB B
