Advanced Secure Ultra High Def

KVM Switch

User Manual

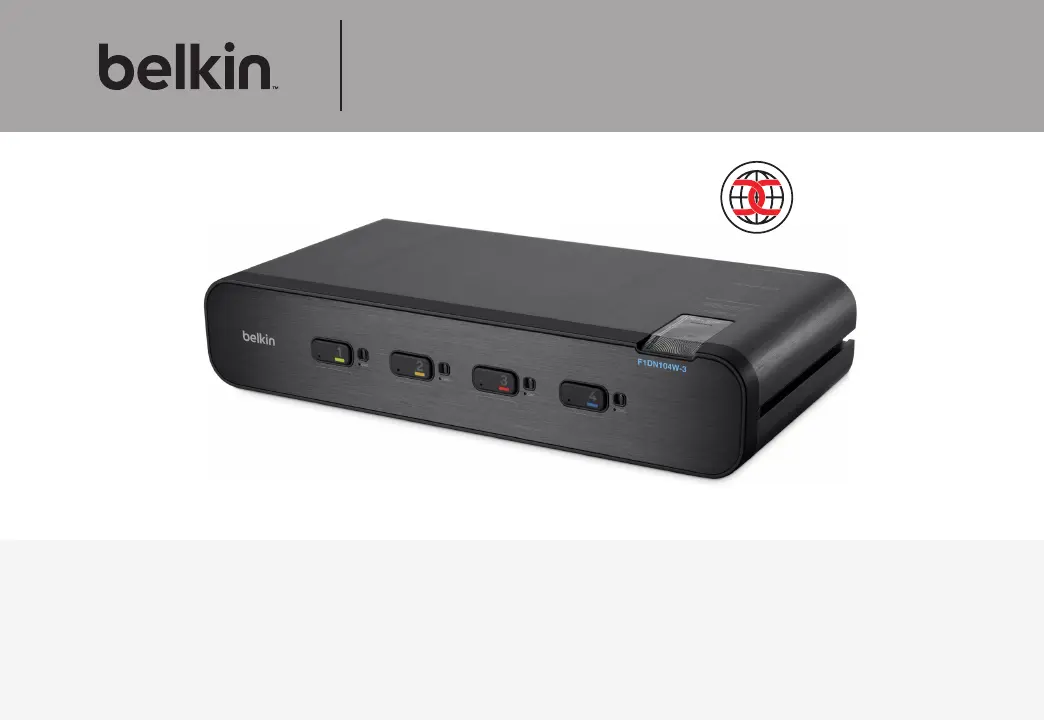

F1DN104P-3 – Belkin Advanced Secure Ultra High Def KVM Switch; 4-Port Plus

F1DN104W-3 – Belkin Advanced Secure Ultra High Def Dual-Head KVM Switch; 4-Port Plus

F1DN104Q-3 – Belkin Advanced Secure Ultra High Def Quad-Head KVM Switch; 4-Port Plus

Document Number 8820-02504 (A00)

This Belkin product is compliant

with latest NIAP Protection Proﬁle

PSS Ver. 3.0, which exceeds EAL4

and PP PSS Ver. 2.1.

Belkin

Advanced Secure Ultra High Def KVM Switch User Manual

TABLE OF CONTENTS

SECTIONS

1 2 3 4 5 6 7

Table of Contents

Introduction ..............................................1

Package Contents.........................................1

Safety Precautions ........................................2

User Guidance & Precautions ...............................3

Overview.................................................5

Security Features .........................................5

Tamper Evident Labels .....................................6

Other Features ...........................................7

Equipment Requirements ...................................9

System Requirements ....................................10

Unit Display Diagrams ....................................11

Specifications ...........................................15

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Pre-Configuration ........................................17

Connection and Installation ................................18

Color Code Chip Installation ...............................20

Operating the KVM Switch ................................21

Common Access Card (CAC) Configuration and OPERATION ..22

Troubleshooting .........................................23

Information..............................................27

Belkin

Advanced Secure Ultra High Def KVM Switch User Manual

INTRODUCTION

SECTIONS

Table of Contents

2 3 4 5 6 71

Thank you for purchasing this Belkin Secure DisplayPort KVM. This

Switch is designed for use in secure environment installations. The

Switch offers safe centralized control, which prevents unintended data

transfer between computers running at different security levels. The

Switch provides the highest security safeguards and features that meet

today’s Information Assurance (IA) computing requirements.

Belkin Advanced Secure DisplayPort KVM is especially challenging in

terms of security as DisplayPort is a very robust protocol by nature,

which is capable of transferring various types of information, such as

USB and Ethernet other than display. Belkin has developed this unique

Secure KVM switch with the highest possible security in mind, assuring

no leakage of information between connected computers through any

channels including DP dedicated channels.

This User Manual provides all the details you’ll need to install and

operate your new Switch, in addition to expert troubleshooting advice—

in the unlikely event of a problem.

Reporting Belkin Product Security Vulnerability

If you are aware of potential security vulnerability while installing or

operating this product, we encourage you to contact us immediately

at the following email address: gov_security@belkin.com

Please note: Belkin Secure KVMs cannot be upgraded, serviced

or fixed.

Package Contents

• Belkin Advanced Secure DisplayPort KVM

• 12V 1.5A DC Power Supply (F1DN104P-3)

• 12V 3A DC Power Supply (F1DN104W-3, F1DN104Q-3)

• Interchangeable Port Color Chips

• Port-Naming Labels

• HDMI to DVI Display Cable, 10 ft.

• USB Cable, 6 ft

• User Manual

Important: This product is equipped with an always-on active

anti-tamper system. Any attempt to open the enclosure may

activate the anti-tamper system and render the unit permanently

inoperable. If the unit’s enclosure appears disrupted or if all the

port LEDs flash continuously, please call Belkin Technical Support

toll-free at (800) 282-2355.

Produkspesifikasjoner

Merke:	Belkin
Kategori:	Bryter
Modell:	F1DN104W-3
Vekt:	2222 g
Bredde:	317.5 mm
Dybde:	162.5 mm
Høyde:	63.5 mm
USB-kontakttype:	USB Type-A, USB Type-B
Maksimal oppløsning:	3840 x 2160 piksler
Antall HDMI-porter:	2
Hodetelefonutganger:	1
Sertifisering:	FCC Class B, CE, UL, ICES
HDMI-versjon:	1.4
Antall DisplayPorts:	8
Utgangsstrøm:	12 V
DisplayPort-versjon:	1.2
AC-inngangsfrekvens:	50 - 60 Hz
Antall datamaskiner:	4
Produktfarge:	Sort
HD-type:	4K Ultra HD
Driftstemperatur (T-T):	0 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	-20 - 60 °C
Kroppsmateriale:	Aluminium
Antall PS/2-porter:	2
Antall USB 2.0 Type-B-porter:	8
Relativ luftfuktighet under drift (H-H):	0 - 80
Video tilkoblingstype:	HDMI/DisplayPort
Tastatur tilkoblingstype:	USB, PS/2
Mus tilkoblingstype:	USB, PS/2
Konsoll porter:	RJ-14, 3.5mm headphone, HDMI, PS/2, USB A
