Side 1/36

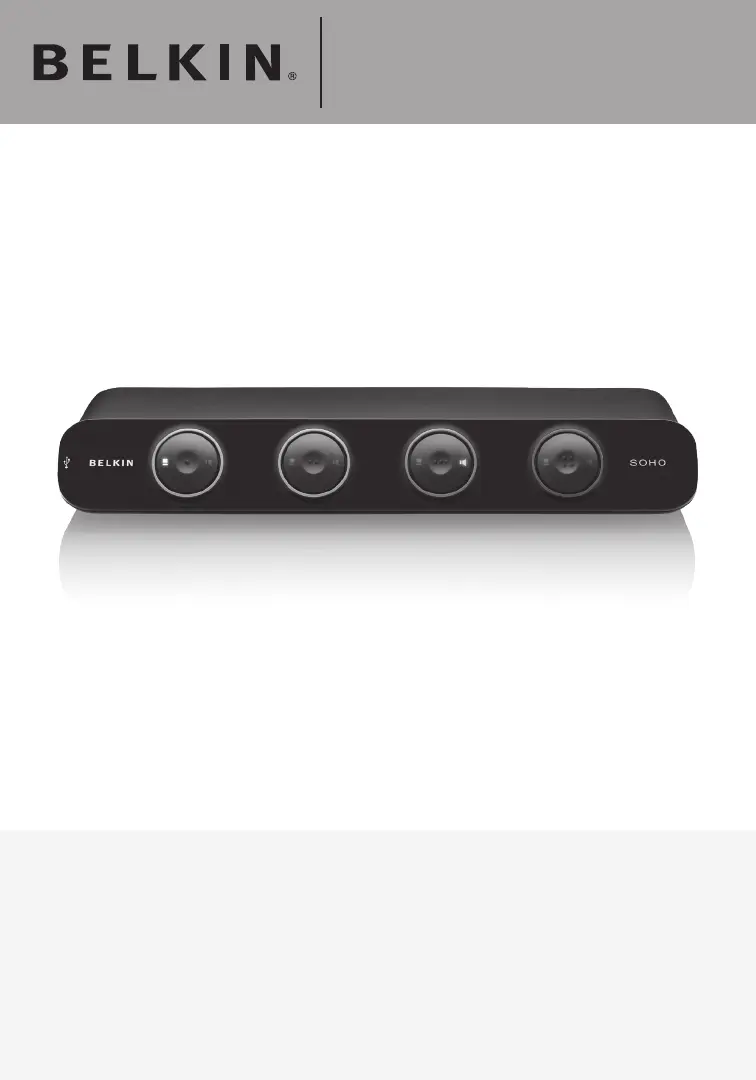

User Manual
F1DH102L
F1DH104L
OmniView
®
SOHO KVM
Switch with Audio
Dual-Head VGA with USB Console and Host Support
Table of Contents
1. Introduction ............................................................................... 1
Package Contents ...........................................................1
2. Overview .................................................................................... 2
Feature Overview .............................................................2
Equipment Requirements .................................................3
Unit Display Diagrams ......................................................4
Specifications ..................................................................5
3. Installing the KVM Switch ........................................................... 6
Pre-Configuration ............................................................6
Connecting the KVM Switch .............................................7
Audio and Microphone Connections .................................8
Powering Up the Systems ................................................9
4. Using the KVM Switch ............................................................... 10
Selecting a Computer Using Direct-Access Port Selectors ............ 10
Selecting a Computer Using Keyboard Hot-Key Commands ......... 10
Hot-Key Preceding Sequence Configuration ............................. 11
Hot Key Quick Reference Table .............................................12
Switching the Audio/Mic ...................................................... 13
5. Firmware-Upgrade Guide ......................................................... 14
Upgrade Using the Windows Version Utility ..................... 14
Upgrade Using the Mac Version Utility ............................ 18
6. FAQs ......................................................................................... 24
7. Troubleshooting ....................................................................... 26
Firmware-Upgrade Troubleshooting ................................ 30
8. Information .............................................................................. 31
1
1
2
3
4
5
6
7
8
section
Introduction
1
Congratulations on your purchase of the Belkin OmniView SOHO KVM Switch with
Audio. Our diverse line of quality KVM solutions exemplifies the Belkin commitment
to delivering high-quality, durable products at a competitive price. Engineered to
give you control over multiple computers/servers from one console, Belkin KVM
Switches come in a variety of capacities suitable for all configurations, large or small.
This compact, affordable Belkin OmniView KVM Switch is backed by a Belkin 3-Year
Warranty and free technical support.
This User Manual will provide details about your new Switch, from installation and
operation, to troubleshooting—in the unlikely event of a problem. For easy installation,
please refer to the Quick Installation Guide included with your KVM Switch.
Thank you for purchasing the Belkin OmniView SOHO KVM Switch with Audio. We
appreciate your business and have confidence that you will soon see for yourself why
over 1 million Belkin OmniView KVM Switches are being used worldwide.
Package Contents
OmniView
SOHO KVM
Switch with Audio
2/4 SOHO USB
Cable Kits, 6 ft.
User Manual Quick Installation
Guide
Power Supply
9V, 1.1A DC Adapter
