Side 1/6

Thank you for purchasing this product. For optimum performance and safety, please read the

instructions carefully and keep the manual for future referency.

Important safety notice

Please read below safety instructions carefully before installation and operation:

 Please pay attention to all the warnings and hints on this device.

 Do not expose this unit to rain, moisture and liquid.

 Do not put any stuff into the device.

 Do not repair or open this device without professional people’s guidance.

 Make sure good ventilation openings to avoid product overheating damage.

 Shut off power and make sure environment is safe before installation.

 Do not plug-in/out the network cables and IR cables when it is in using to avoid cables

damage.

 Use DC5V only. Make sure the specification matched if using 3

party DC adapters.

1 Introduction

SDI HDbitT fiber optic extender, supports HDbitT transport protocol, extends SDI signal up to

20KM between the source device and display device over optical fiber cables. It supports IR pass

back. This product is perfect for long distance transmisson filed.

2 Features

1. Transmission over single mode optical fiber cables, plug and play

2. Extend resolution 1080p up to 20KM

3. Support IR pass back and remote control conveniently

4. Avoid the electromagnetic interference in environment for long distance transmission

5. Low signal loss, wide frequency band and strong anti-interference

6. Aluminium heat sink shell

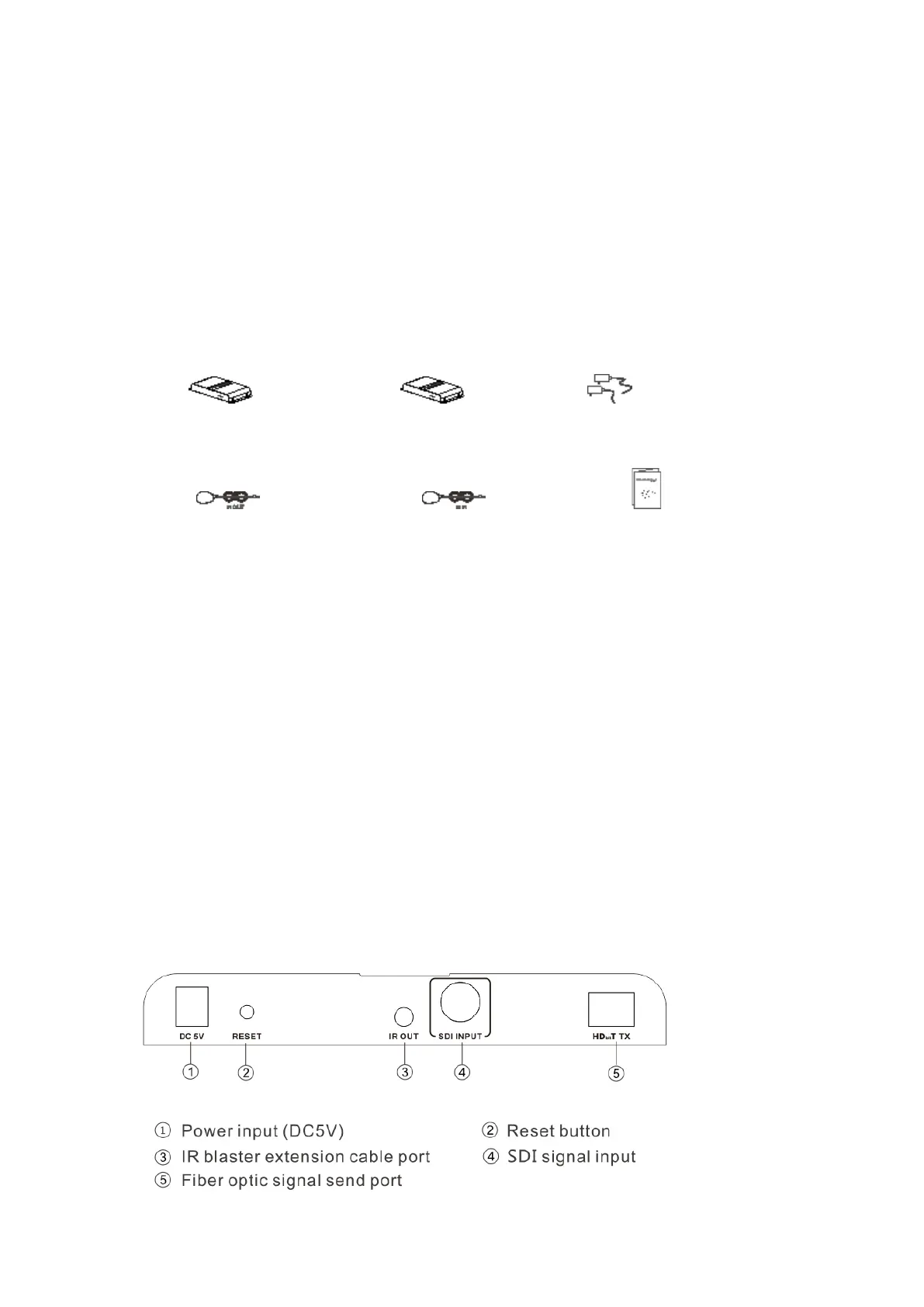

3 Package Contents

SDI extender TX*1pcs SDI extender RX*1pcs DC5V2A*2pcs

IR blaster extension cable*1pcs IR receiver extension cable*1pcs User’s manual*1pcs

4 Installation Requirements

1. SDI source device (computer graphics card, DVD, PS3, HD monitoring equipment etc)

2. SDI display device like SDTV, HDTV, and projector with HDMI port

3. Cables(SDI cables and single mode optical fiber cables)

5 Panel Description

5.1 SDI Extender TX transmission

Produkspesifikasjoner

Merke:	HELGI
Kategori:	AV ekstender
Modell:	HI0378SDI
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Maksimal oppløsning:	1920 x 1080 piksler
Maksimal oppdateringshastighet:	60 Hz
Impedans:	75 Ω
Utgangsstrøm:	2 A
Mottakervekt:	400 g
Strømforbruk (TX):	10 W
Strømforbruk (RX):	10 W
Produktfarge:	Sort
Kontrolltype:	Knapper
Pakketype:	Boks
Støttede videofunksjoner:	480i, 576i, 720p, 1080i, 1080p
Modell/Type:	AV-sender og -mottaker
Største båndbredde for port:	2.97 Gbit/s
Maksimal overføring avstand:	20000 m
Kabeltyper som støttes:	Fiber
Trådløs mottaker (B x D x H):	168 x 95 x 22 mm
Senderdimensjoner (BxDxH):	168 x 95 x 22 mm
Sendervekt:	400 g
3,5 mm inn:	Ja
3.5 mm ut:	Ja
Drift spenning (sender):	5 V
Drift spenning (modtaker):	5 V
