Please read below safety instructions carefully before installation and

operation:

1. Please pay attention to all the warnings and hints on this device.

2. Do not expose this unit to rain, moisture and liquid.

3. Do not put any stuff into the device.

4. Do not repair the device or open the enclosure without professional

person guidance to avoid electronic shock.

5. Make sure good ventilation openings to avoid product overheating

damage.

6. Shut off power and make sure environment is safe before installation.

7. Do not plug-in/out the network cables and IR cables when it is in

using to avoid cables damage.

8. Use DC5V only. Make sure the specification matched if using 3

party DC adapters.

HDMI Extender TX

sender*1pcs

HDMI Wireless Extender-50M

HDMI Extender RX

receiver*1pcs

DC5V/2A power

adapter*2pcs

IR blaster extension

cable*1pcs

1. HDMI Extender TX sender

User manual

• Important safety notice

This transmitter extends HDMI signal wirelessly from source device to

display device up to 50meters with the advanced application of HDbitT

transport protocol and wireless technology. It requires no cables

between sender (TX) and receiver (RX) which makes the installation

easy and clean.

• Introduction

Note:

1) Transmission distance will be different due to the environment.

2) Wall, brick or glass will shorten the signal cover range or cause big

signal loss.

1. Transmit HDMI signal from source device to display device up to

50meters wirelessly.

2. Support IR remote control function to control source device content

from long distance.

3. No cable between sender(TX) and receiver(RX).

4. Easy and clean installation.

• Features

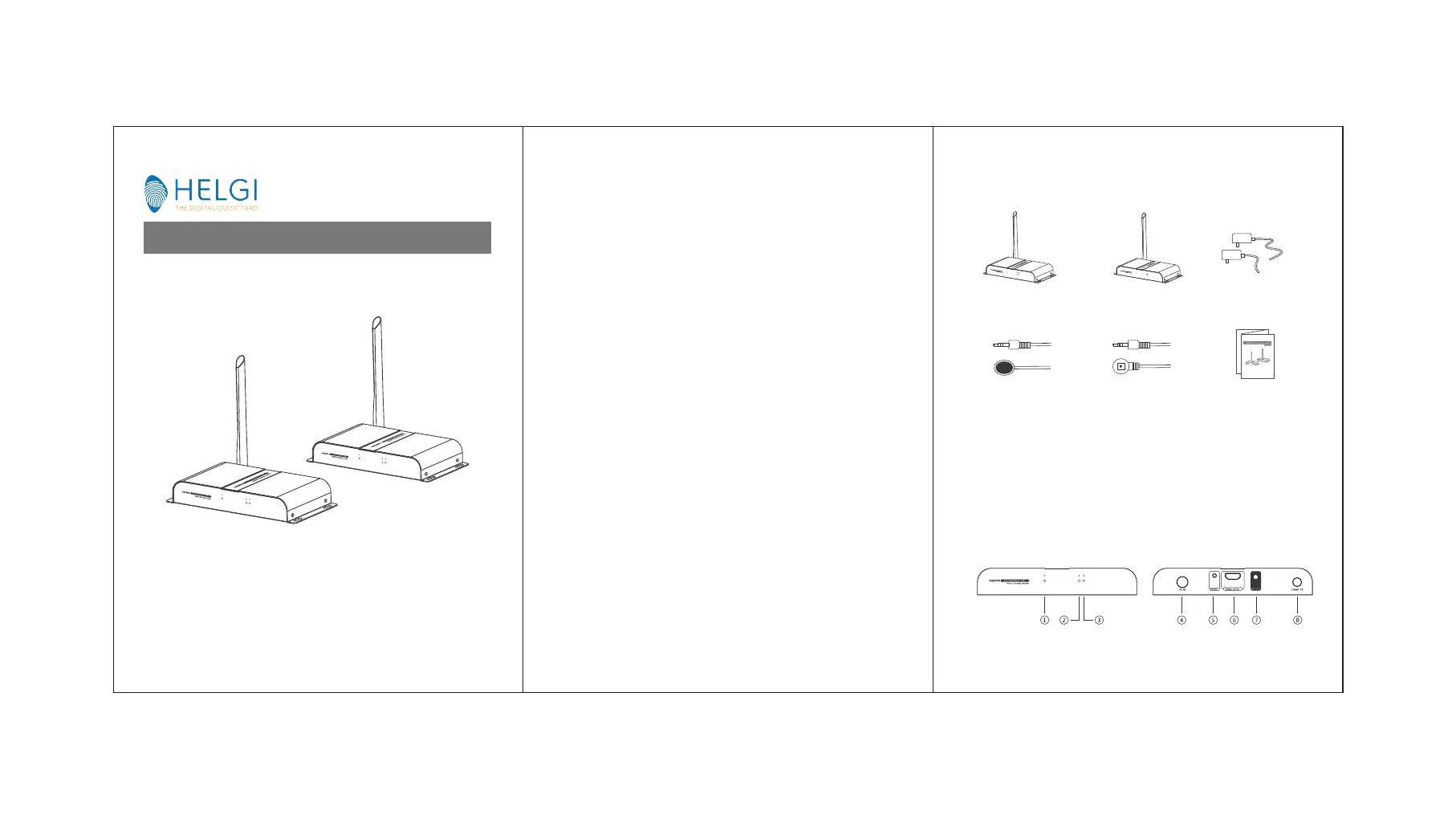

• Package contents

IR receiver extension

cable*1pcs

User manual*1pcs

1. HDMI source device (DVD, PS3, Set top box, PC etc)

2. HDMI display device like SDTV, HDTV, and projector with HDMI port.

• Installation Requirement

• Panel description

Power led It lights when power is on

Data transmission

led

Led blinks slowly when it is building connection. Led blinks fast

when it is successfully connected and transmitting data

Connection led It lights when wireless signal is well connected

Power input Connect with DC5V/2A power adapter

Reset

Press reset button to restart the device

HDMI input

Connect with HDMI source device

IR blaster extension

cable interface

Connect with IR blaster extension cable. Please put the IR blaster

close to source device to best transmit the IR signal from receiver

Antenna

Launch wireless signal

2. HDMI Extender RX receiver

DVD

HDMI Cable

Connection instruction:

1). Connect HDMI input with HDMI source device and connect IR blaster

extension cable with IR OUT interface of the sender (TX).

2). Connect HDMI output with HDMI display device and connect IR

receiver extension cable with IR IN interface.

3). Power on the device (power led lights) and it works.

Note:

1） When the wireless signal transmits through wall, glass or other

obstacles, it will cause signal loss. Suggest installing this device in

good environment with few obstacles.

2） The external environment wireless signal interfere the transmission,

such as micro waver, wireless mouse and keyboard etc.

Specification

HDMI signal Full compatible with HDCP

Support resolution

480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz,

720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz

Transmit distance

Up to 50m for 1080p 60Hz

IR remote control

Support 20~60kHz IR remote device

Working temperature

0℃～60℃

Power supply

DC5V/2A *2PCS

Power consumption

TX: 8.5W; RX: 5.5W

Product dimension

Weight

Color

195.4(W) x 137.5(D) x 30.8(H)mm *2PCS

Items

Black

TX: 531g RX: 528g

Enclosure material

Metal

Transport protocol HDbitT

Power led It lights when power is on

Data transmission

led

Led blinks slowly when it is building connection. Led blinks fast

when it is successfully connected and transmitting data

Connection led It lights when wireless signal is well connected

Power input Connect with DC5V/2A power adapter

Reset

Press reset button to restart the device

HDMI output

Connect with HDMI display device

IR receiver extension

cable interface

Connect with IR receiver extension cable. Please make sure the

remote control is within the required range of IR receiver

Antenna

Receive wireless signal

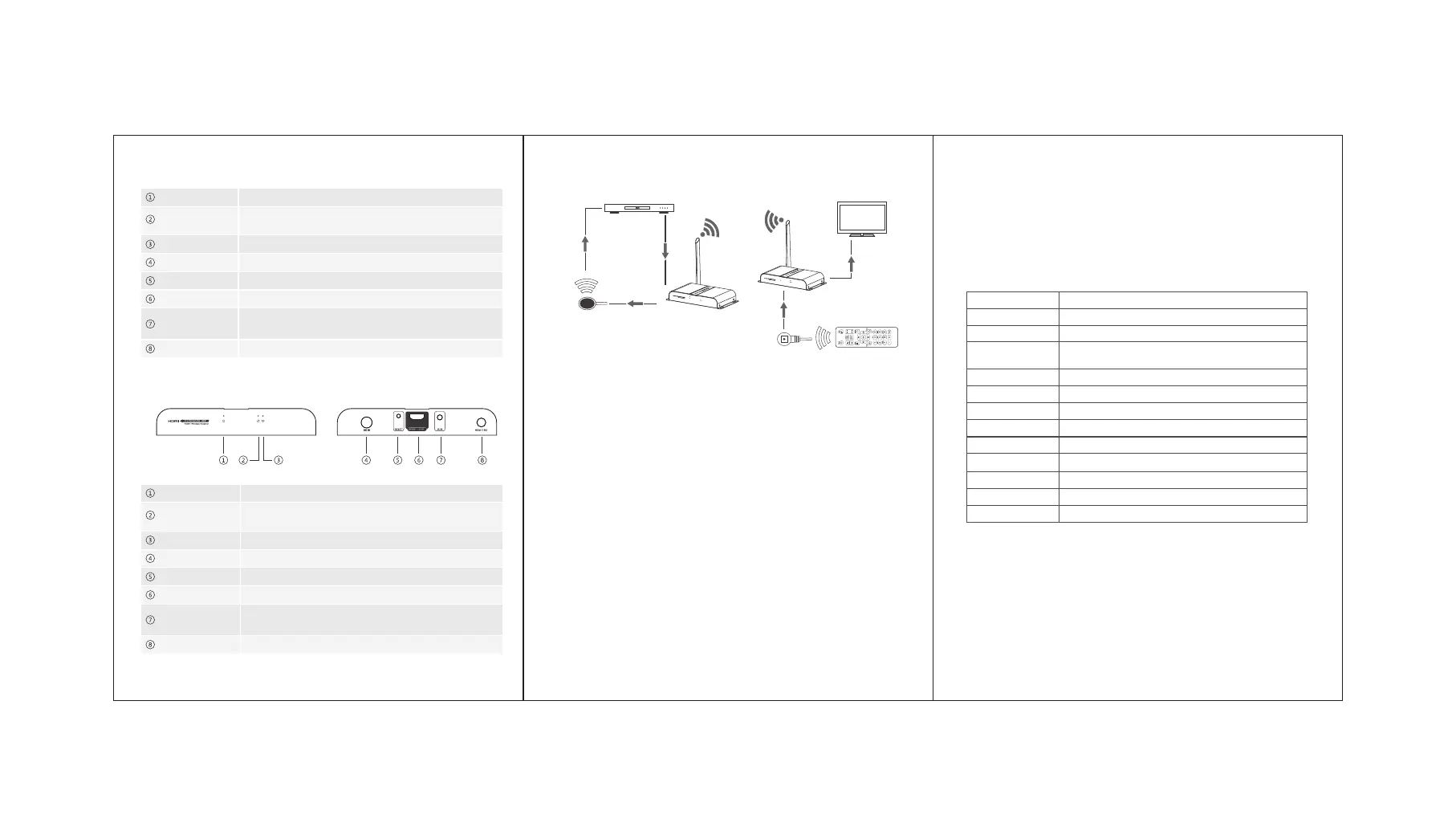

• Connection

HDMI Extender

TX sender

HDMI Extender

RX receiver

• FAQ

Q: TV display “waiting for connection” on the bottom right corner?

A: Please check if the power supply of TX (sender) and RX(receiver) is well

connected and the power indicator led lights on.

Q: TV display “Please check the TX input signal”?

A: 1) please check if there is an HDMI signal input of sender TX

2) Try to connect the signal source directly to display device to see if there

is signal output from source device or change the signal source, HDMI

cables and try again.

Q: Display not fluent and stable?

A: 1) Please move the position of sender (TX) and receiver (RX) and make sure

the device is within the required signal range.

2) Click “reset” button on the RX/RX panel, reset and reconnect.

3) Remove other wireless signal disturbance and reduce the obstacles on

the way.

• Specification

The product name and brand name may be registered trademark of related

manufacturers.TM and ® may be omitted on the user manual. The pictures

on the user manual are just for reference,and there may be some slight

difference with the real products.

We reserve the rights to make changes without further notice to a product

or system described herein to improve reliability, function or design.

Disclaimer

HDMI Cable

Produkspesifikasjoner

Merke:	HELGI
Kategori:	AV ekstender
Modell:	HLG0388
Bredde:	195.4 mm
Dybde:	137.5 mm
Høyde:	30.8 mm
Bruksanvisning:	Ja
Wi-Fi:	Ja
Tilkoblingsteknologi:	Ledning & Trådløs
Maksimal oppløsning:	1920 x 1080 piksler
HDCP:	Ja
Maksimal oppdateringshastighet:	60 Hz
Materiale:	Metall
Utgangsstrøm:	2 A
HDMI inn:	1
Antall HDMI-utganger:	1
Mottakervekt:	528 g
HDCP-gjennomgang:	Ja
Produktfarge:	Sort
Støttede grafikkoppløsninger:	854 x 480 (WVGA), 1024 x 576 (WSVGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Støttede videofunksjoner:	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Driftstemperatur (T-T):	0 - 60 °C
Modell/Type:	AV-sender og -mottaker
DC-inngangskontakt:	Ja
Kan monteres på vegg:	Ja
Fjern (IR)-utgang:	1
AC-adapter bunt:	Ja
Plugg inn og spill:	Ja
Fjerninngang (IR):	1
Maksimal overføring avstand:	50 m
Sendervekt:	531 g
Antall antenner:	1
Strømforbruk (sender) (maks):	8.5 W
Kraftforbruk (mottaker) (max):	5.5 W
Drift spenning (sender):	5 V
Drift spenning (modtaker):	5 V
Innebygd antenne:	Ja
