HDMI Wireless Transmitter 200m

User Manual

Thank you for purchasing this product. For optimum performance and safety, please read the

instructions carefully and keep the manual for future reference.

Important safety notice

Please read below safety instructions carefully before installation and operation:

 Please pay attention to all the warnings and hints on this device.

 Do not expose this unit to rain, moisture and liquid.

 Do not put any stuff into the device.

 Do not repaire the device or open the enclosure without professional person guidence to avoid electronic

shock.

 Make sure good ventilation openings to avoid product overheating damage.



Shut off power and make sure environment is safe before installation.

 Do not plug-in/out the network cables and IR cables when it is in using to avoid cables damage.

 Use DC5V only. Make sure the specification matched if using 3

party DC adapters.

1.Introduction

This transmitter extends HDMI signal wirelessly from source device to display device up to 200meters with

the advanced application of HDBitT transport protocol and wireless technology. It requires no cables between

sender (TX) and receiver (RX) which makes the installation easy and clean.

Note:

1) Transmission distance will be different due to the environment.

2) Wall, brick or glass will shorten the signal cover range or cause big signal loss.

2.Features

1) Transmit HDMI signal from source device to display device up to 200meters wirelessly.

2) Support IR remote control function to control source device content from long distance.

3) No cable between sender(TX) and receiver(RX)

4) Easy and clean installation

3.Package contents

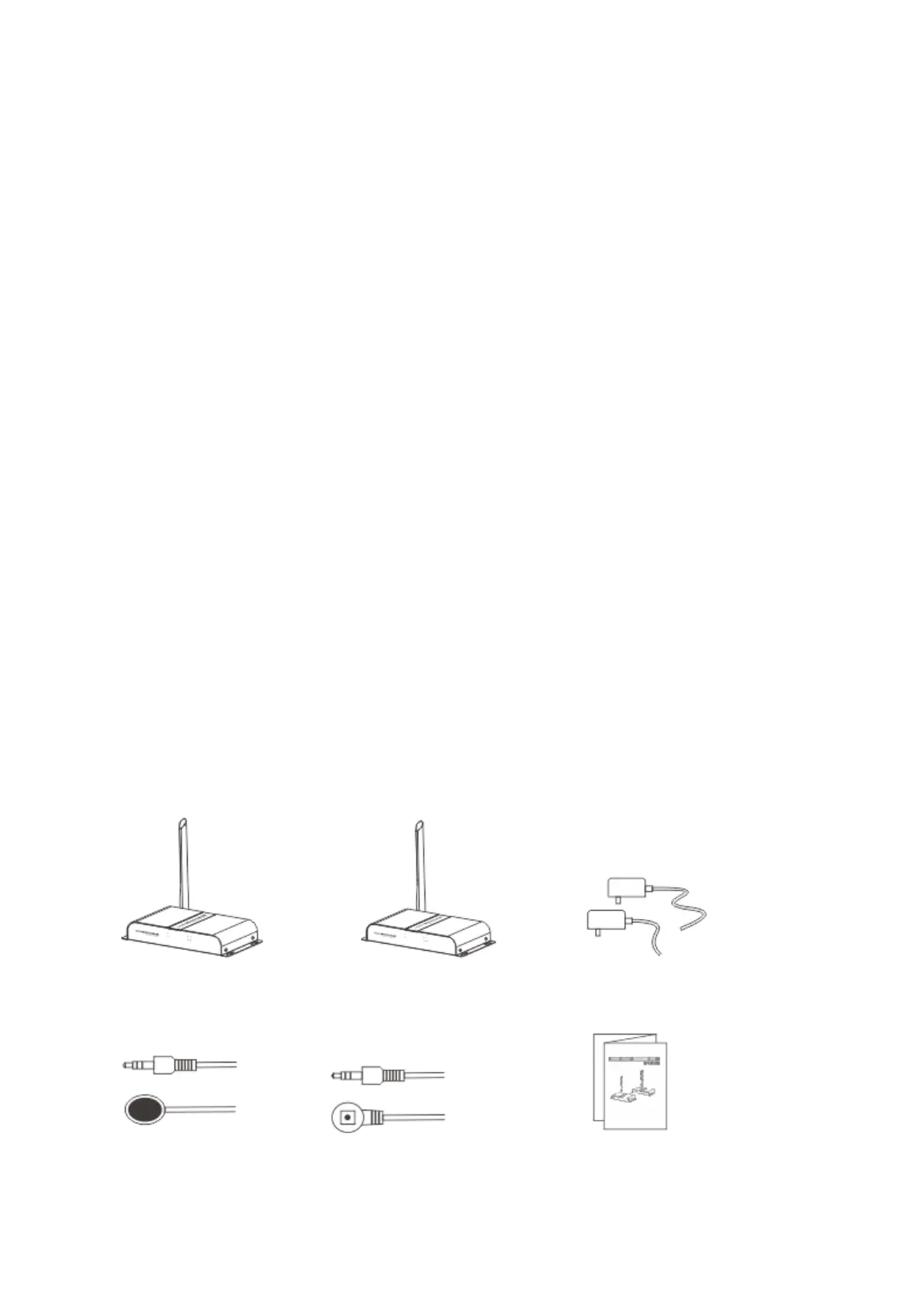

HDMI extender TX sender*1pcs HDMI extender RX receiver*1pcs DC5V2A power adapter*2pcs

IR blaster extension cable*1pcs IR receiver extension cable*1pcs User manual*1pcs

4.Installation Requirement

1. HDMI source device (DVD, PS3, Set top box, PC etc)

2. HDMI display device like SDTV, HDTV, and projector with HDMI port.

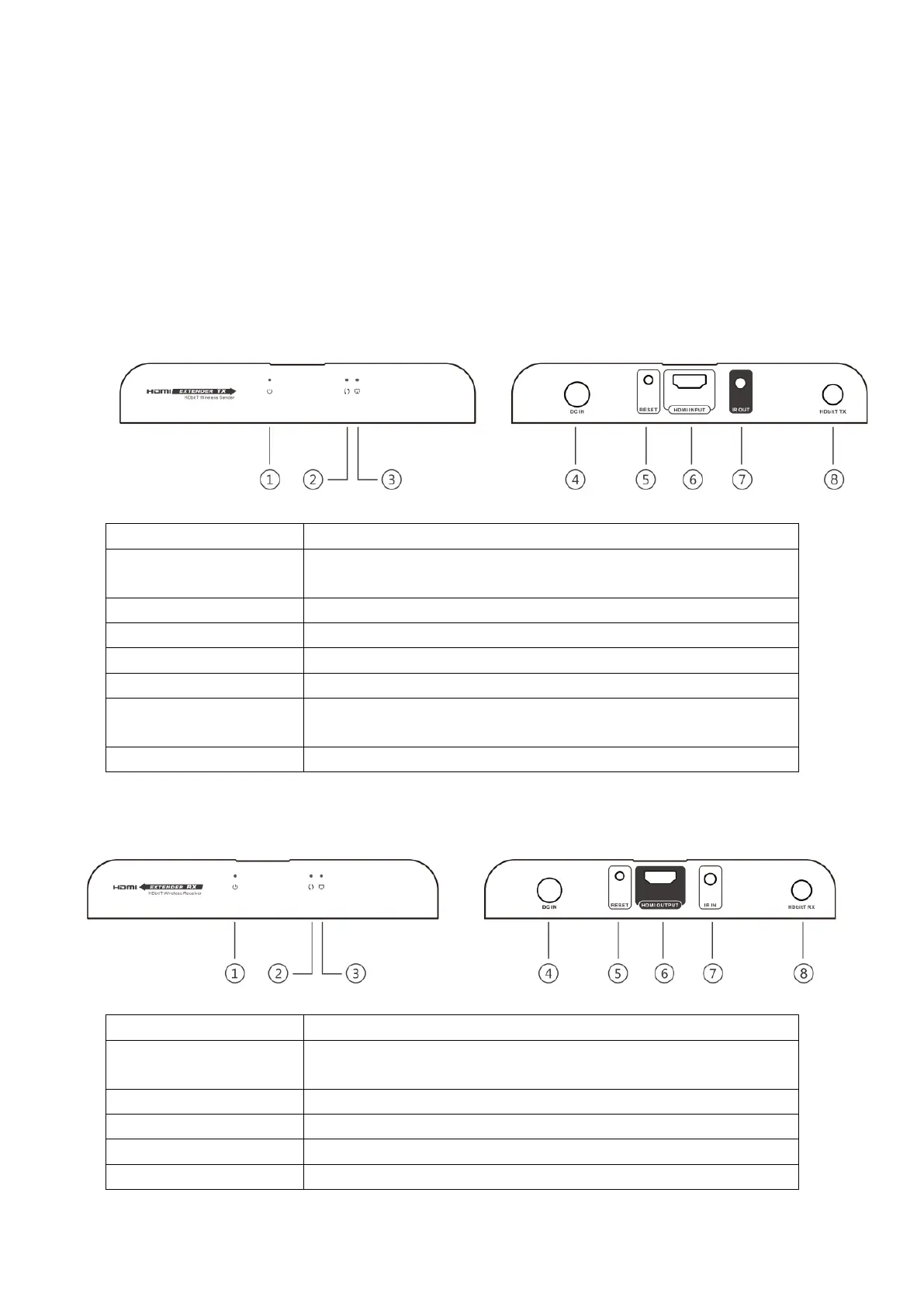

5.Panel description

1.HDMI Extender TX sender

1 Power led It lights when power is on

2 Data transmission led Led blinks slowly when it is building connection.

Led blinks fast when it is successfully connected and transmitting data.

3 Connection led It lights when wireless signal is well connected.

4 Power input Connect with DC5V2A power adapter

5 Reset Press reset button to restart the device

6 HDMI input Connect with HDMI source device

7IR blaster extension cable

interface

Connect with IR blaster extension cable. Please put the IR blaster close

to source device to best transmit the IR signal from receiver.

８Antenna Launch wireless signal

2.HDMI extender RX receiver
