HELGI HLG0318PRO Bruksanvisning

HELGI AV ekstender HLG0318PRO

Les nedenfor 📖 manual på norsk for HELGI HLG0318PRO (2 sider) i kategorien AV ekstender. Denne guiden var nyttig for 4 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere

Last ned PDF

Side 1/2

Working temperature

0℃～60℃

Power supply

DC5V/3A

Power consumption

<20W

Dimension

310mm(L)x112mm(W)x28mm(H)

Weight

453g

Color

Black

The product name and brand name may be registered trademark of related

manufacturers.TM and ® may be omitted on the user manual. The pictures

on the user manual are just for reference,and there may be some slight

difference with the real products.

We reserve the rights to make changes without further notice to a product

or system described herein to improve reliability, function or design.

Disclaimer

Specifications

Input ports 1 x HDMI

Output ports 8 x HDMI

Power indicator led

1 xLED (Orange)

Q: No image output?

Signal indicator led

8 xLED (Blue)

HDCP

Compatible with HDCP

Frequency range

25MHz-340MHz

Max transmission rate

10.2Gbps

Color depth

Supports 12-bit deep Full HD, 3D, 4Kx2K video

Audio

Support standard audio and DSD（Direct Stream

Digital）and HD(HBR) audio

Resolution

480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz,

720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz,

1080p@24Hz 3D, 720@50/60Hz 3D,4Kx2K@25/30Hz

Items

• FAQ

A: 1) Check the power supply of splitter, make sure the power light is on.

2) Check if the HDMI cables connected well.

3) Check and make sure the TV has been set up to the right channel.

4) While connect with PC or notebook via HDMI, please make sure the

output mode is mirror or extend.

Q: Display is unstable, splash screen, snowflakes or audio stuck?

A: 1) Check and make sure all connections are good and correct.

2) Try to directly connect HDMI source to display, if it is the same,

please change the source device.

3) Use high-quality HDMI 1.4 cable for transmitting 4K×2K UHD signal.

• SPECIFICATION

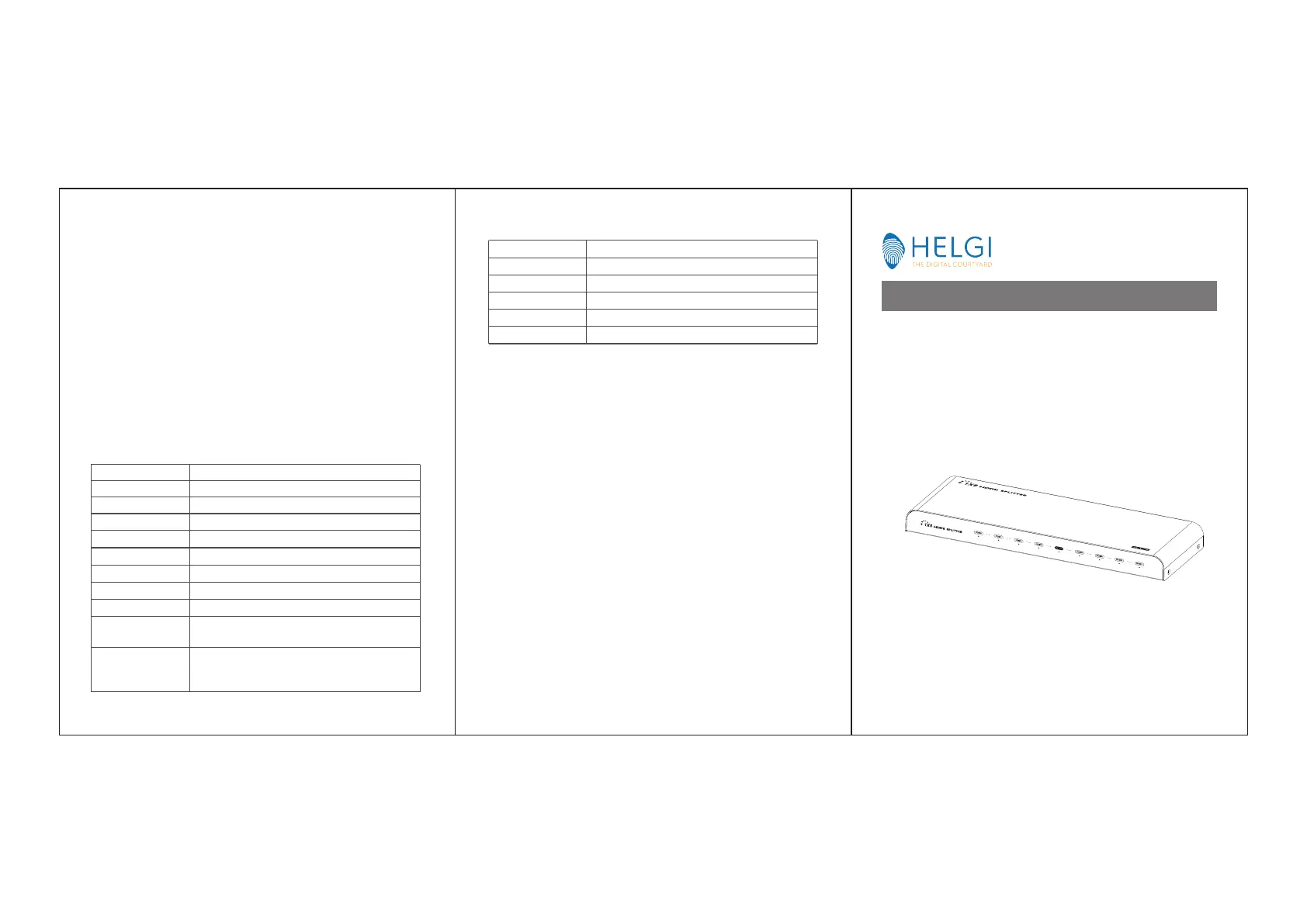

4KX2K 1X8 ports HDMI Splitter

User manual

1. Source: HDMI video source, such as DVD, PS3, STB, PC, Etc.

2. Display: HDTV, projector or other display with HDMI por t

3. Cable: High standard HDMI cable (can support 4Kx2K)

• INSTALLATION REQUIREMENT

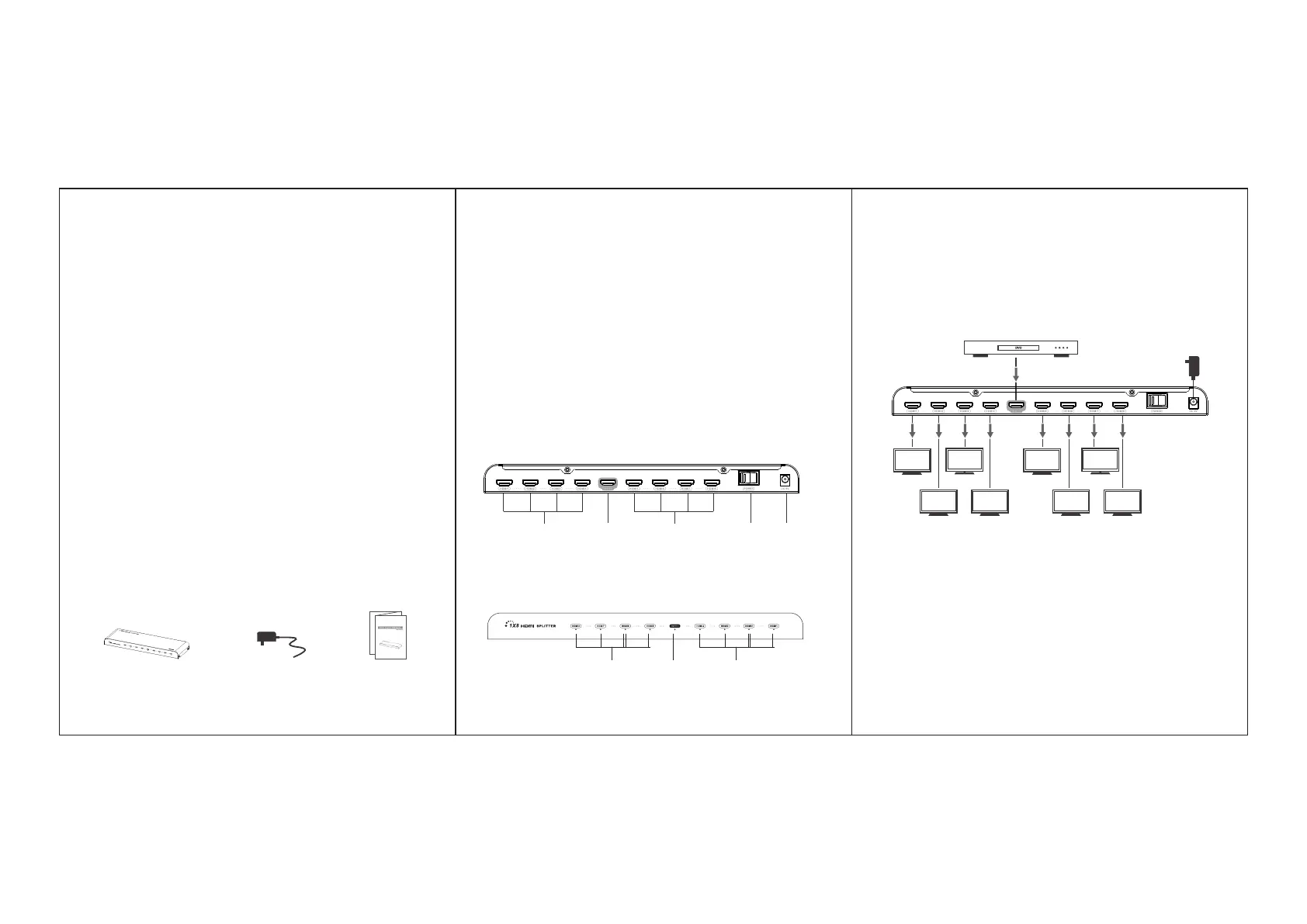

• INTERFACE SPECIFICATION

Power

HDMI Output

Ports

HDMI Input

Port

HDMI Output

Ports

Power Input

（DC5V/3A）

Output LED

HDMI Input

Port

Output LED

• INTRODUCTION

1x8 HDMI splitter distributes 1 HDMI source to 8 HDMI displays simul-

taneously. Apply for STB, DVD, Media Player, Laptop, D-VHS and other

HD-Player devices. It's compatible with HDMI 3D and 4Kx2K.

HDMI Splitter×1

User Manual×1

• PACKAGE CONTENTS

DC5V/3A Power

Adapter×1

Important Safety instructions:

1. Use DC 5V power supply only. Make sure the specification matched if

using 3 party DC adapters.

2. Put product in dry and ventilated place for normal heat dissipation.

3. Keep product away from strong static and magnetic environment.

Thank you for purchasing this product. For optimum performance and

safety, please read the instructions carefully and keep the manual for

future reference.

1. Connection

• INSTALLATION

1） Connect the HDMI video source output port to the splitter input port

by HDMI cable

2）C onnect the splitter output port to HDMI display by HDMI cable

3）S et the TV input to right HDMI channel

4）P ower on the splitter(Power indicator led will light on)

Display

HDMI Splitter

DVD

Produkspesifikasjoner

Merke:	HELGI
Kategori:	AV ekstender
Modell:	HLG0318PRO
Vekt:	453 g
Bredde:	310 mm
Dybde:	112 mm
Høyde:	28 mm
LED-indikatorer:	Power, Status
Bruksanvisning:	Ja
Oppløsning:	3840 x 2160 piksler
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Maksimal oppløsning:	3840 x 2160 piksler
Videokomprimeringsformater:	H.264
HDCP:	Ja
Maksimal oppdateringshastighet:	60 Hz
3D:	Ja
HDMI-versjon:	2.0
Fargedybde:	12 bit
Utgangsstrøm:	3 A
HDMI inn:	1
Antall HDMI-utganger:	8
Driftsspenning:	5 V
Produktfarge:	Sort
Støttede grafikkoppløsninger:	1280 x 720 (HD 720),1920 x 1080 (HD 1080),2560 x 1440,3840 x 2160
Pakketype:	Boks
Strømforbruk (vanlig bruk):	20 W
Støttede videofunksjoner:	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1440p, 2160p
Driftstemperatur (T-T):	0 - 60 °C
Modell/Type:	AV-sender og -mottaker
DC-inngangskontakt:	Ja
Lydsystem:	Stereo
AC-adapter bunt:	Ja
Plugg inn og spill:	Ja
Største båndbredde for port:	10.2 Gbit/s
