INSTALLATION GUIDE

for the

SB-Y-YXZ1/10TW3

SKU# 94642

2016 & Up Yamaha YXZ1000R

Thank you for choosing a JL Audio Stealthbox® for your automotive sound system.

With proper installation, your new vehicle-specific enclosed subwoofer system

will deliver years of listening pleasure.

We strongly recommend that you have your new Stealthbox® installed by your

authorized JL Audio dealer. The installation professionals employed by your

dealer have the necessary tools and experience to disassemble and reassemble

your vehicle properly. If you prefer to perform your own installation, please read

this installation guide completely before beginning the process.

If you choose to perform the installation yourself, it is absolutely

vital that the Stealthbox

be properly mounted to the vehicle

according to these instructions. Failure to mount the enclosure

properly presents two problems:

1) The sub-bass performance will suffer due to the movement of the

enclosure caused by the force exerted by the woofer(s).

2) A loose enclosure presents a serious safety hazard in the event of a

collision or sudden deceleration.

INSTALLATION

DIFFICULT Y:

ESTIMATED TIME:

2-3 HOURS

Enclosure Type: Sealed

Driver Type: 10TW3-D4

Nominal Impedance: 2 ohms

Continuous Power Handling: 400 watts (RMS method)

Continued on Next Page

OUT

SB-Y-YXZ1/10T W3 INSTR_SKU# 011479

INCLUDED HARDWARE

Continued on Next Page

Page 2 • JL Audio, Inc., 2017

SB-Y-YXZ1/10TW3 INSTR_SKU# 011479

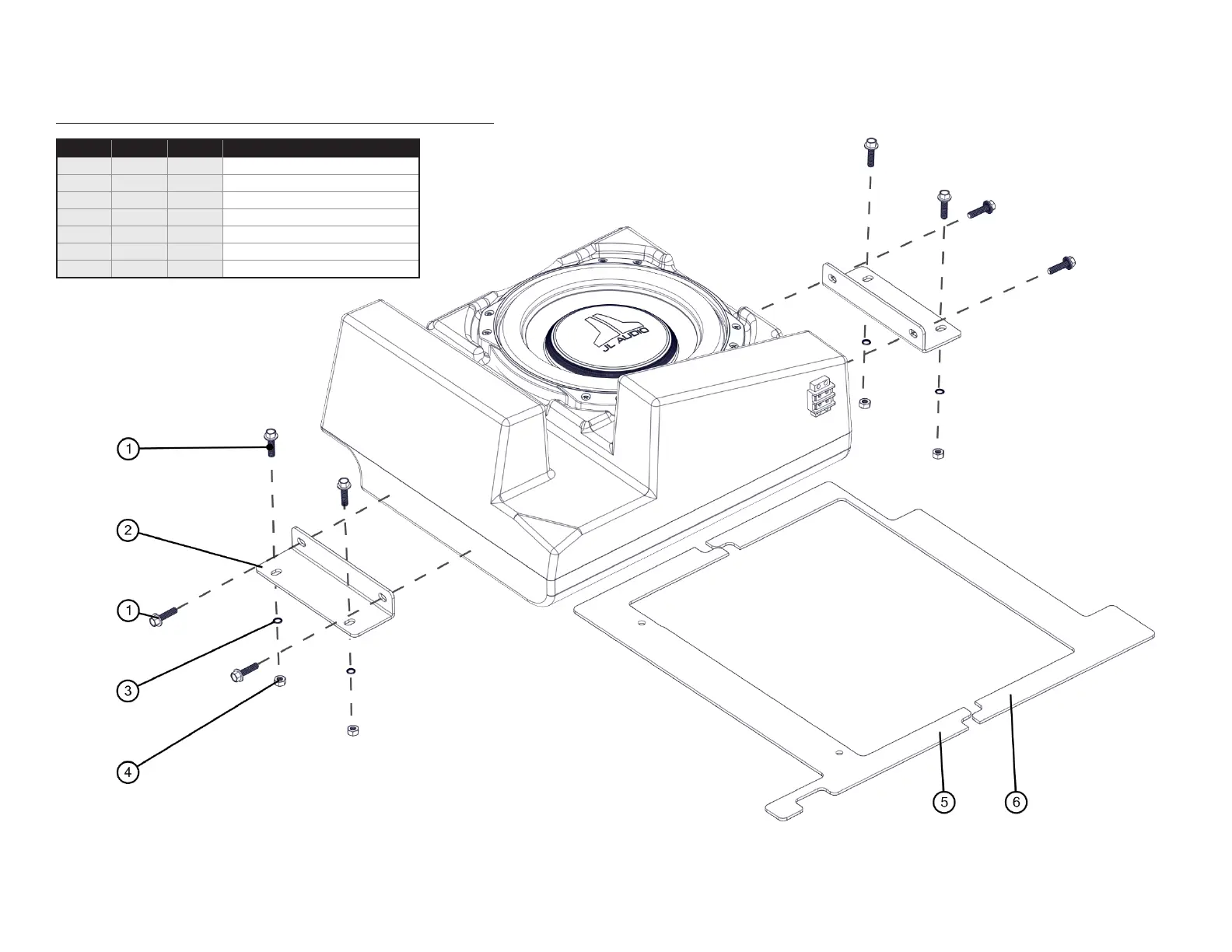

BOM ID Qty SKU Description

1 8 153729 1/4 - 20 x 1” Serrated Flange Bolt

2 2 153876

Bracket

3 4 153739 1/4” Serrated Spring Lock Washer

4 4 153740 1/4 - 20 Hex Nut

5 1 152330 Template Front

6 1 152331 Template Rear

- 1 150249 Foam Tape (not shown)

Note: For optimum performance, JL Audio recommends applying the included Foam Strips (or sound damping material) to surrounding plastic panels to reduce unwanted vibrations.
