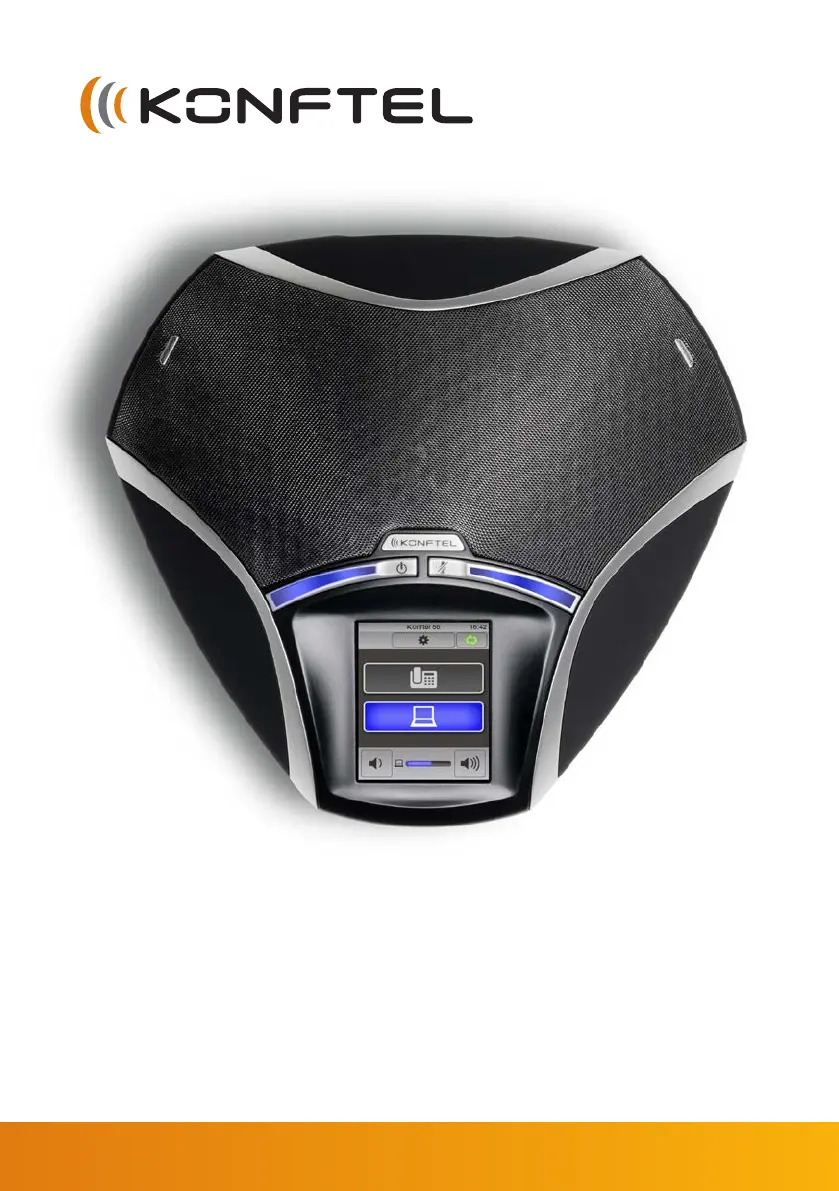

The Konftel 55 User Guide

ENGLISH

OmniSound

– superior sound quality

The patented OmniSound

audio technology guarantees an impressive and crystal-clear

full-duplex audio, allowing you to speak in two directions for effective participation in

virtual meetings. The sound is transmitted clearly and powerfully to all attendees thanks

to a hypersensitive microphone with 360° audio pick-up and speakers.

OmniSound

delivers HD audio during VoIP calls. It also incorporates automatic echo

cancellation and noise suppression, which minimises background noise interference, and

an equaliser for personal adaptation of the audio properties. This means you can move

about freely in the room, talking, discussing and debating with others without any loss of

audio quality and without any annoying sound clipping, damping or echoes. It's as close to

real sound as you can get.

Konftel AB hereby declares that this conference phone is in conformity with all the essen-

tial requirements and other relevant provisions of Directive 1999/5/EC.

Please visit www.konftel.com/doc to read the declaration in its entirety.

Warning!

Do not expose the Konftel 55 to water or moisture.

Warning!

Do not open the casing of the Konftel 55.

Warning!

Only use the power adapter provided to connect the unit to the mains.

CONTENTS

Introduction 2

Maintenance ................................................................................... 2

Description 3

General ........................................................................................... 4

Bridge connection ............................................................................ 6

Using the Konftel with a desktop phone 7

Connecting to a desktop phone ......................................................... 7

Making calls .................................................................................... 8

Using the Konftel with a mobile phone 9

Cable connection to a mobile phone .................................................. 9

Making calls .................................................................................. 10

Using the Konftel with a computer 11

Connection to a computer ............................................................... 11

Using the Konftel with a computer .................................................. 12

Using multiple connections 13

Bridge connection 14

Adjusting the volume ...................................................................... 14

Using a headset 16

Recorder capability 17

Recording ..................................................................................... 17

Listening to a recording .................................................................. 18

Settings 19

Changing languages ....................................................................... 19

Adjusting sound effects .................................................................. 20

Changing connection settings ......................................................... 21

Changing system settings ............................................................... 24

Upgrading software 25

Upgrading from a PC...................................................................... 25

Upgrading via an SD card ............................................................... 26

Technical data 27

Produkspesifikasjoner

Merke:	Konftel
Kategori:	Videokonferansesystem
Modell:	55
Produkttype:	IP-konferansetelefon
Innebygd skjerm:	Ja
Vekt:	640 g
Bredde:	222 mm
Dybde:	206 mm
Høyde:	68 mm
Baklys:	Ja
Bruksanvisning:	Ja
USB-kontakttype:	USB Type-B
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Strømkildetype:	AC, DC
Pakkevekt:	1430 g
Antall USB 2.0-porter:	1
Sertifisering:	EMC: 2014/30/EU, EMC Regulations 2016, LVD: 2014/35/EU, Electrical Equipment (Safety) Regulations 2016, WEEE: 2012/19/EC, RoHS: 2011/65/EU, REACH: EC 1907/2006
Støyreduksjon:	Ja
Inngangsspenning:	100 - 240 V
Lydtrykknivå:	90 dB
Utgangsstrøm:	12 V
Mikrofonretningstype:	Retningsuavhengig
Dimensjoner (B x D x H):	222 x 206 x 68 mm
Driftsspenning:	14 V
Mikrofonfrekvens:	100 - 24000 Hz
Produkter per pall:	126 stykker
AC-inngangsspenning:	100 - 240 V
Minnekortspor:	Ja
Lydtilkoblinger:	1 x 3.5 mm
Skjermoppløsning:	128 x 64 piksler
Garantiperiode:	2 år
Anbefalt romstørrelse:	Middels store rom
Produktfarge:	Sort
Antall USB-porter:	1
Pakkedybde:	300 mm
Pakkehøyde:	160 mm
Pakkebredde:	270 mm
Skjermtype:	LCD
Minnekortenhet:	SD, SDHC
AC-adapter utgangsspenning:	14 V
Kontrolltype:	Knapper
Kabler inkludert:	USB
Driftstemperatur (T-T):	5 - 40 °C
Bærekraftsertifikater:	Low Voltage Directive (LVD), REACH, RoHS, WEEE
Innebygd kortleser:	Ja
Hurtigstartsguide:	Ja
Harmonisert system (HS)-kode:	85258900
Signal-til-støy-forhold (SNR):	90 dB
Enhetstype:	Universell
Mikrofonens opptaksrekkevidde:	4 m
Krav til strømforsyning:	100 - 240V AC/14V DC
Relativ luftfuktighet under drift (H-H):	20 - 80
Display:	128 x 64 px
AC-adapter bunt:	Ja
Plugg inn og spill:	Ja
Guide for hurtiginstallering:	Ja
Farge på bakgrunnsbelysning:	Blå
Mikrofonsensitivitet/mikrofonfølsomhet:	90 dB
Mikrofondemping:	Ja
Skjermbelysning:	Ja
Ekkokansellering:	Ja
Støyreduseringseffekt:	Ja
Produkter per masterkasse (ytterkasse):	7 stykker
Antall:	1
Arbeidsfrekvens:	100 - 24000 MHz
Telefonlistekapasitet:	50 oppføringer
Frekvensrekkevidde:	100 - 24000 Hz
Sensitivitet/følsomhet:	90 dB
Egnet for romvolum opptil:	30 m²
Maksimal opereringsrekkevidde:	4 m
Konferansesamtaler:	Ja
Utvidelsesmikrofoner støttes:	Ja
