Monitor Arm for 2 Monitors
Monitorarm voor 2 Monitoren
Bras d’Écran PC pour 2 Écrans PC
Monitorhalterungr 2 Monitore
FLYING START.
Whoooo.
934999 - BBMA2M V1.1
12
13
2
1
3
9
7
6
11
8
10

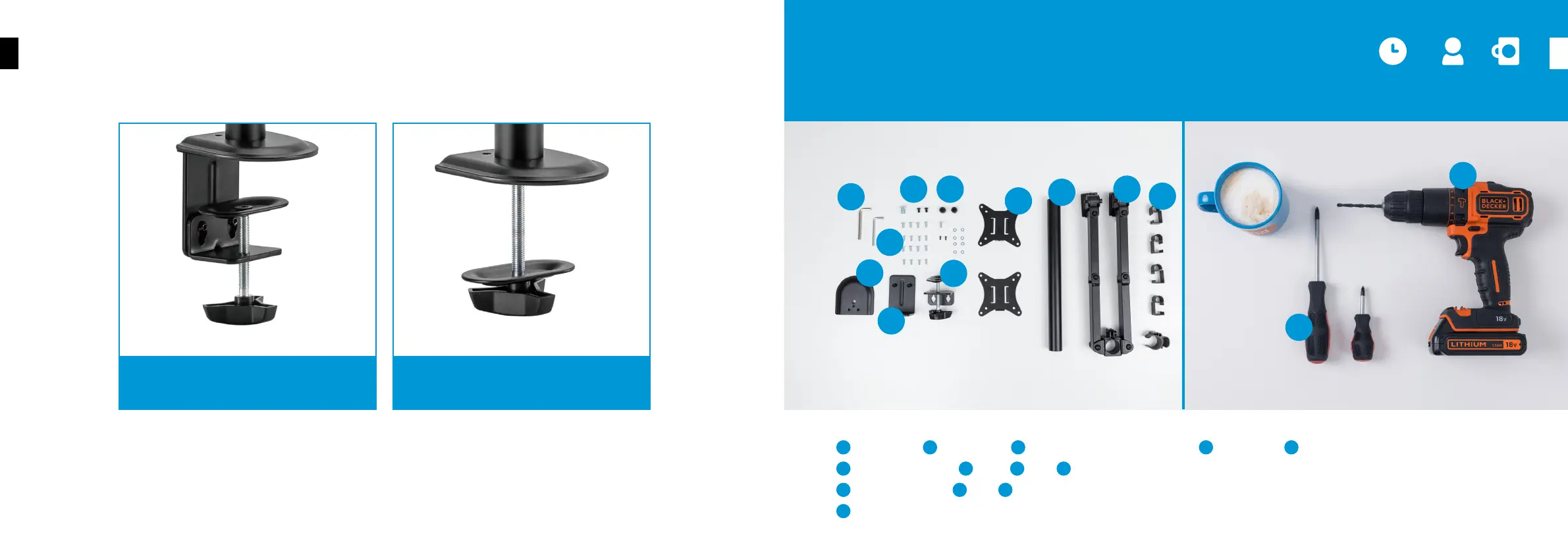

In the box:
1
VESA Plates
2
Monitor arm
3
Clamp
4
Clamp attachment
5
Stand
6
Tube
7
Cable clips
8
Socket head bolts
9
Caps
10
Hex keys
11
Screws and rings
SET UP MONITOR ARM.
A helping hand.
30 minutes 1 person 1 coffee
From your own toolbox:
12
Screwdriver
13
Electric drill
EN
EN
Feed-through mount (B)
Drill a hole in your desk and feed the clamp through it.
Clamp mount (A)
Mount your monitor arm to your desk with the clamp.
5
4
32

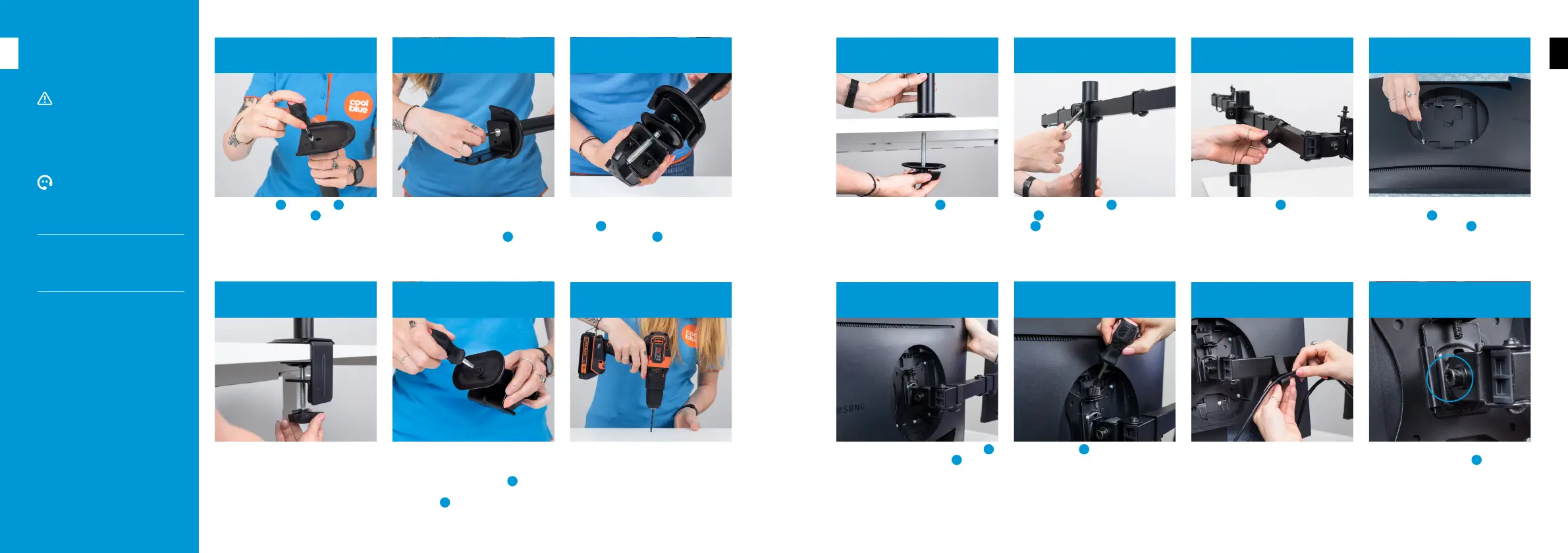

STEP 5. STEP 6.
STEP 4B.
Feed-through fixation.
STEP 9.
STEP 7.
STEP 10.
STEP 8.
STEP 11.
Place the monitor arms
2
on the
tube
6
and fasten it tightly with the hex
key
10
. Make sure that the VESA mounts
are upright.
Attach the cable clips
7
to the arms and
the tube.
Place the mounting plate
3
around the
feed-through mount. en screw it into
the stand via the hole until it’s fastened
tightly.
Tighten the caps
9
with a screw and a
screwdriver.
Place your monitors on a rug and insert
the top screws
11
into the monitors.
You can use the washers
11
to make it
sturdier.
Feed your cables through the clips to
neatly store them.
Slide the monitor onto the VESA plate
1
and screw the bottom screws
11
into the
monitor.
Adjust the connector of the monitor arm
with the included hex key
10
to set the
flexibility.
STEP 4A.
Clamping attachment.
STEP 2A.
Clamping attachment.
STEP 2B.
Feed-through fixation.
STEP 3A.
Clamping attachment.
STEP 3B.
Feed-through fixation.
Place the clamp on the desk and tighten
the screw upwards until the stand is
fastened tightly.
Suitable for desks with a thickness
between 10 and 40mm.
Place the clamp attachment
4
on the
other side of the stand and tighten the
screw.
Suitable for desks with a thickness
between 45 and 85mm.
Twist the disc from the clamp
3
and then
twist and remove the clamp
attachment
4
.
Determine the thickness of your desk.
Depending on that, place the desk
clamp
3
in the upper or lower notches
and tighten the bolts
8
.
Drill a 10mm hole through your desk.
CHECKLIST.
Does the tick.
Check the VESA size of your
monitor. at way, you can
be sure it fits on the monitor
arm. e screw holes of the
VESA plate and your
monitor have to match.
Do you have a question?
Coolblue.nl/en/
customer-service
Coolblue isn’t liable for any
injury, damage, or arguments
with your partner caused by a
wrong installation.
EN
EN
STEP 1.
Place the stand
5
on the tube
6
and
tighten it with the screw
8
.
