Monitor Arm with Mechanical Spring for 2 Monitors
Monitorarm met Mechanische Veer voor 2 Monitoren
Bras d’Écran PC avec Ressort Mécanique pour 2 écrans PC
Monitorhalterung mit Mechanische Feder für 2 Monitore
FLYING START.
Whoooo.
935001 - BBMAG2M V1.1
12
13
1
11
3
5
7
9
2
6
8
10

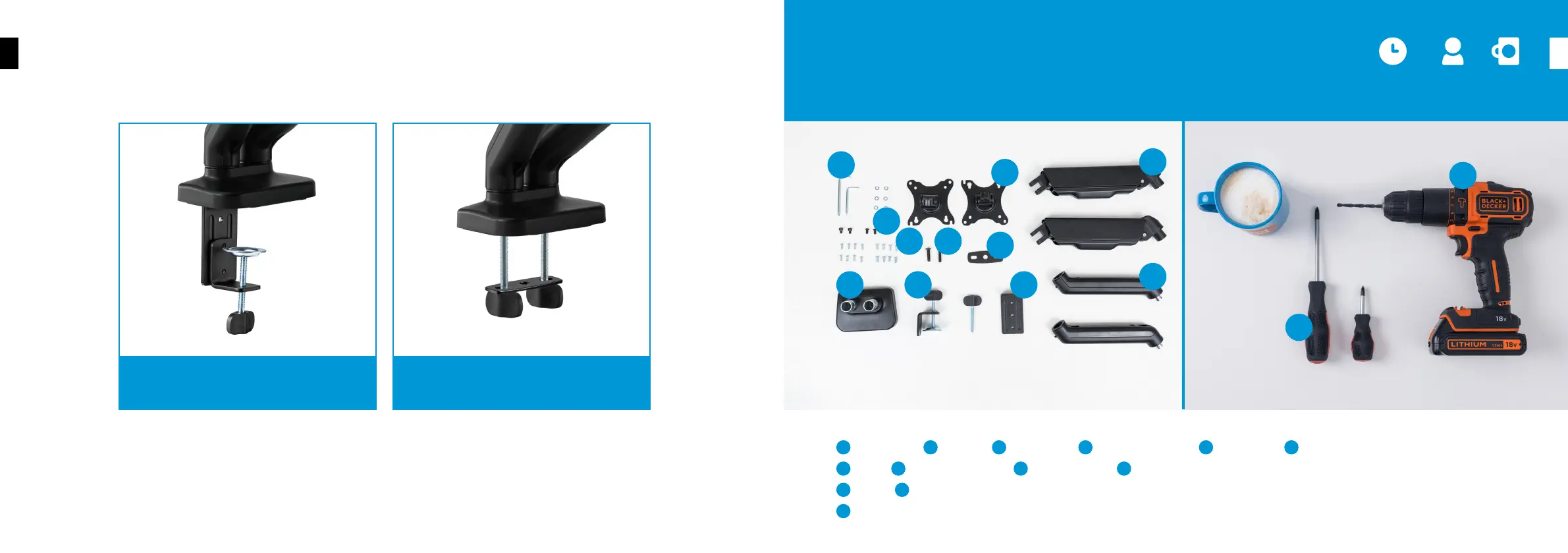

In the box:
1
Swivel arms
2
Lift arms
3
VESA plates
4
Base
5
Clamp
6
Clamp attachment
7
Mounting plate
8
Screw
9
Screws
10
Hex keys 4mm and 5mm
11
Screws and washers
SET UP MONITOR ARM.
A helping hand.
30 minutes 1 person 1 coffee
From your own toolbox:
12
Screwdriver
13
Electric drill
EN
EN
Feed-through mount (B)
Drill a hole in your desk and feed the clamp through it.
Clamp mount (A)
Mount your monitor arm to your desk with the clamp.
4
32

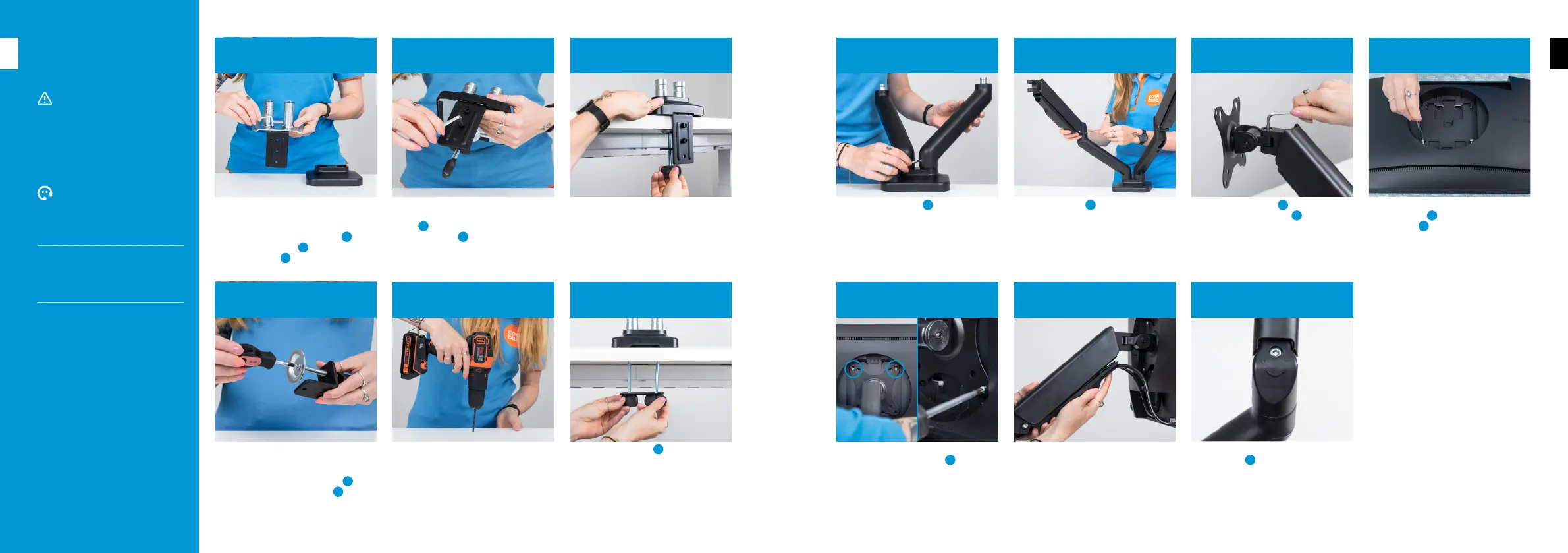

STEP 4.
STEP 3B.
Feed-through fixation.
STEP 8.
STEP 7.
STEP 5.
STEP 9.
STEP 6.
STEP 10.
Place the swivel arms
1
on the base.
Tighten the screws as desired. e tighter
you go, the less smooth the arms will
move.
Place the fixing plate
7
around the feed-
through. en screw it through the hole
into the base until it is firmly secured.
Slide the monitors onto the VESA plates
and screw the lower screws
11
into the
monitor.
Place your monitor on a cloth and place
the top screws
11
in the monitor. Use
the washers
11
as an option for extra
reinforcement.
Place the lift arms
2
. Tighten the screws
as desired.
Slide the cable tray upwards to open it.
Use this to conceal your monitor cables
and close it again.
Place the VESA plates
3
on the monitor
arm and tighten the bolts
8
.
Adjust the torque of the monitor arm with
the Allen key
10
provided to determine
the smoothness.
STEP 3A.
Clamping attachment.
STEP 1A.
Clamping attachment.
STEP 1B.
Feed-through fixation.
STEP 2A.
Clamping attachment.
STEP 2B.
Feed-through fixation.
Place the clamp on the desk and turn the
screw upwards so that the base is firmly
secured.
Suitable for desks between 10 and 80
millimetres thick.
Remove the cover from the base
4
. Place
the connection angle
6
on the base and
tighten the bolts
9
.
Suitable for desks between 10 and 45
millimetres thick.
Unscrew the disc from the clamp
5
and
unscrew the connection angle
6
.
Determine the thickness of your desk.
Depending on this, place the desk
clamp
5
in the top or bottom holes and
tighten the bolts
9
.
Drill two 10-millimetre holes through
your desk.
CHECKLIST.
Does the tick.
Check the VESA size of your
monitor. en you know
whether it fits on the
monitor arm. e screw
holes must match between
the VESA plate and your
monitor.
Do you have a question?
Coolblue.nl/en/
customer-service
Coolblue is not liable for any
injury, damage or bickering
with your friend caused by an
incorrect installation.
EN
EN
