Ultra Slim Wall Mount
Ultra Slim Muurbeugel
Ultra Slim Support Mural
Ultra Slim Wandhalterung
FLYING START.
Whoooo.
940934 - BBUSWM3255
940935 - BBUSWM5585
V1.0
2
5
14
12
9
8
10 7
6
3 4
1
11
13

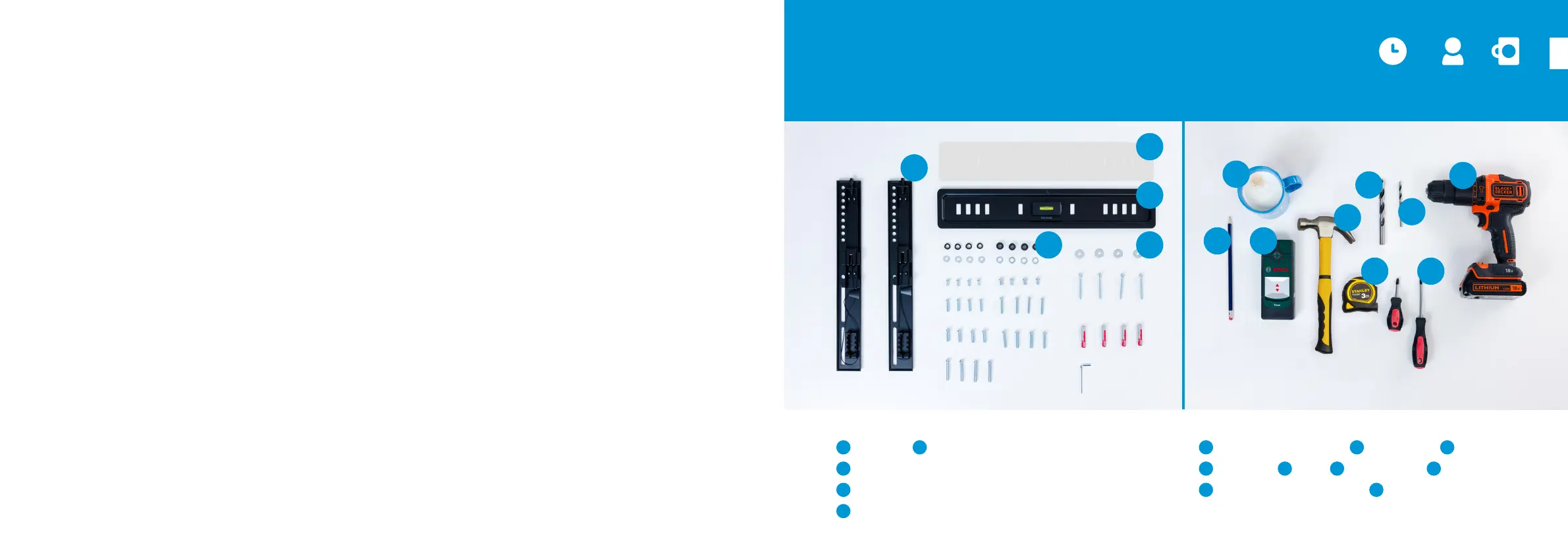

In the box:
1
TV frames
2
Wall plate with spirit level
3
Bag A: rings and spacers for the TV
4
Bag B: hex key, screws, and plugs for the wall
5
Installation template
WALL MOUNT INSTALLATION.
Brace yourself.
30 minutes 2 people 2 coffees
From your own toolbox:
6
Cross-head screwdriver
7
Wall scanner
8
5mm drill
9
10mm drill
10
Pencil
11
Tape measure
12
Hammer
13
Impact drill or concrete drill
14
Cup of coffee
EN
32
CHECKLIST.
Does the tick.
Suitable surfaces:
J Solid brick
J Solid concrete
§
J Dry wall with wooden pillars
behind it
Before drilling:
Use the wall scanner to
check if there aren’t any
pipes or cables behind the
wall.
Warning!
Don’t cut the wires. You need
them when you want to take
your TV off the wall.
Do you have a question?
Coolblue.nl/en/
customer-service
Coolblue isn’t liable for any
injury, damage, or arguments
with your partner caused by a
wrong installation. In doubt if
you can do this yourself? Ask a
professional installer.
EN
Determine the location of your TV on the
wall and draw out where you want the
bottom of your TV to be. Move up with
the same distance you just measured and
draw an X.
Place your TV with the screen down on
a rug. Find which screws in bag A
3
fit
your TV. You only need 1 set.
Mark the 4 drill holes of the wall plate
2
level at the height of the X you drew. Use
the template
5
to make it easier.
Clamp the wall plate
2
onto the frames
and measure the distance from the
bottom of the TV to the drill holes in the
wall plate.
Write down the distance:
cm
Drill holes in your wall. For extra
accuracy, first use the 5mm drill
8
and
then the 10mm drill
9
. en, hammer
the plugs from bag B
4
into the holes.
First, place a screw with a ring in the
upper hole of the frames
1
. Do the same
thing with the bottom screw and place it
in the hole that aligns with the VESA size
of your TV. Place a spacer (from bag A)
when you have extra space.
STEP 1.
Get your TV ready.
STEP 4.
Determine the location.
STEP 2.
Mount the TV frames.
STEP 5.
Mark the height.
STEP 3.
Measure the distance.
STEP 6.
Drill the holes.
EN
Easily store away the strings thanks to
the magnetic bottom.
Use the hex key from bag B
4
to
tighten the bolt, so you can place the TV
completely level.
Fix the wall plate
2
level to the wall
with the screws from bag B
4
. Lift the
TV with 2 people and attach it to the wall
plate. Pull the strings down to lock the
television.
STEP 7.
Mount your TV.
STEP 8.
Neatly store away the strings.
STEP 9.
e final details.
