Side 1/45

Owner’s Manual

4-Port HDMI/USB KVM Switch

with Audio and Peripheral Sharing

Model: B004-HUA4-K

Package Contents 2

Optional Accessories 2

Console Requirements 2

Computer Requirements 2

Features 3

Safety Instructions 5

Installation 6

Basic Operation 7

Firmware Upgrade Utility 12

Factory Default Settings 14

Speciﬁcations 14

Warranty & Product Registration 15

Español 16

Français 31

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

PROTECT YOUR INVESTMENT!

You could also win an ISOBAR6ULTRA surge protector—a $100 value!

www.tripplite.com/warranty

Package Contents

Optional Accessories

Console Requirements

Computer Requirements

• B004-HUA4-K 4-Port HDMI KVM Switch

• (x4) HDMI/USB KVM Cable Kit, 6 ft.

• Firmware Upgrade Cable

• External Power Supply (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5.3V 2.4A)

• Owner’s Manual

• P312-Series Mini Stereo Audio Cables

• P580-Series DisplayPort Cables with Latches

• U022-Series USB 2.0 A/B Device Cables

• HDMI monitor capable of supporting the highest resolution out of any computer in the installation

• USB keyboard and mouse

• Microphone and speakers with 3.5 mm Mini Stereo connectors (optional)

• HDMI port

• USB Type-A port

• 3.5 mm Mini Stereo microphone and speaker jacks (optional)

Supported Operating Systems:

OS Version

Windows 2000 and higher

Mac OS 9 and higher

Novell Netware 6.0 and higher

UNIX FreeBSD 3.51 and higher

Linux Kernal 2.6 and higher

RedHat 6.0 and higher

SuSE 8.2 and higher

Features

• 4-Port HDMI/USB KVM switch with 2.1-channel surround-sound audio and USB 2.0 peripheral sharing (B004-HUA4-K

• Built-in 2-Port USB 2.0 hub allows USB devices to be shared between computers connected to the KVM switch

• 3.5 mm Mini Stereo Speaker and Microphone jacks allow a single microphone to provide audio input to each of the

connected computers, and let you listen to the audio output of each computer on a single set of speakers

• An additional set of console audio jacks is conveniently located on the front panel of the KVM switch, making them ideal for

use with speakers and microphones

• The KVM, USB and Audio can be switched independently of each other

• Switch between connected computers via front-panel push buttons or keyboard hotkeys

• Auto Scan mode allows you to scan the connected computers without having to manually switch between them

• Supports digital video resolutions up to 1920 x 1200 @ 60 Hz (1080p)

• Multi-platform support – Compatible with Windows, Mac and Linux

• Supports hot-plugging – Computers and devices can be unplugged and re-plugged without having to shut down the KVM

switch

• The KVM switch stores the monitor’s EDID (Extended Display Identiﬁcation Data) to optimize display resolution

• LEDs provide for easy monitoring of connected computers

• HDCP and HDMI compliant

• Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice

• Console keyboard port emulation/bypass feature supports most gaming/multimedia keyboards

• Quick installation without the need for software

• Mac keyboard support and emulation*

• Firmware upgradeable

*PC keyboard combinations emulate Mac keyboards. Mac keyboards only work with their own computers.

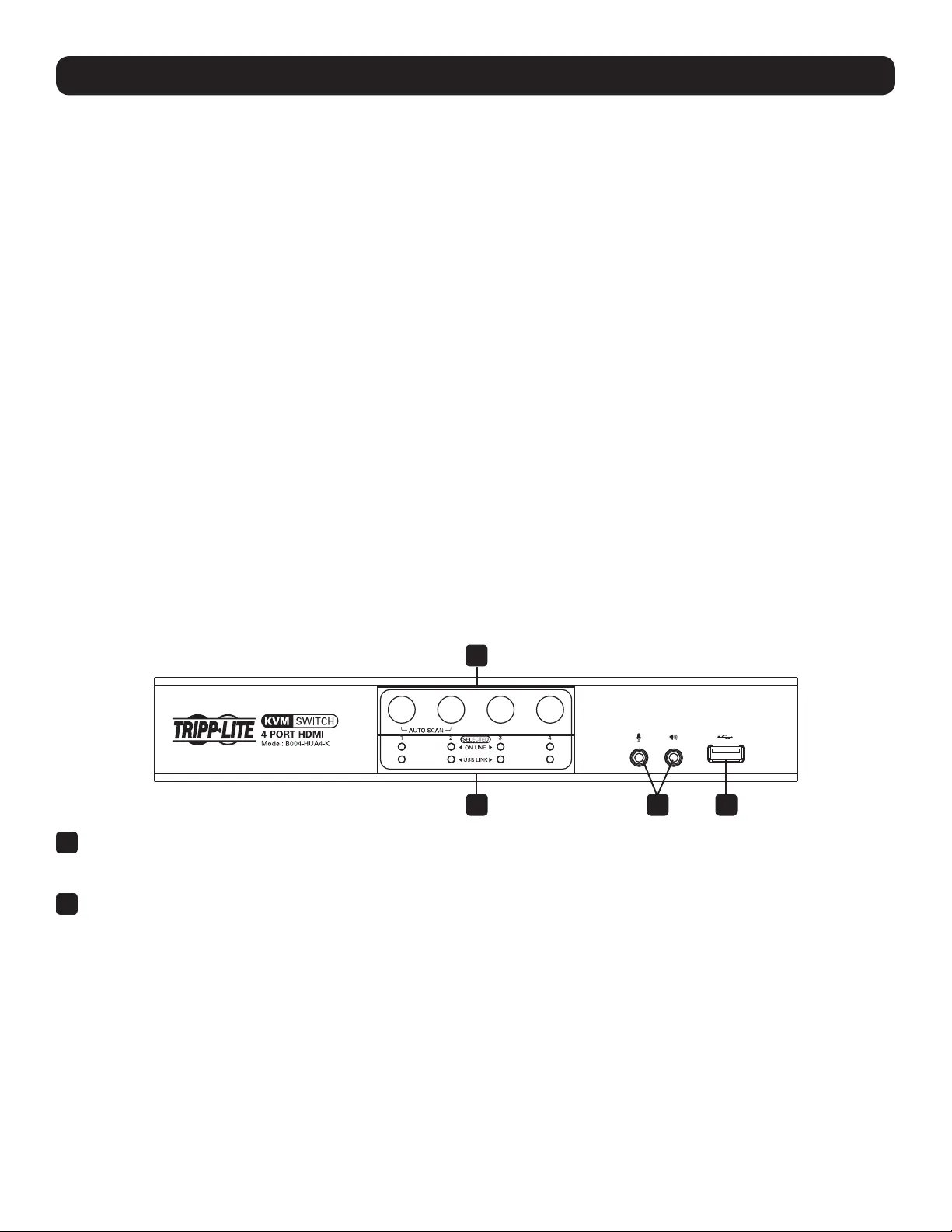

Front Panel

2 43

Port Selection Push Buttons: Pressing a push button will bring the focus of the KVM only, Audio only, USB only, or the

KVM, Audio and USB simultaneously. See Manual Push Buttons in the Basic Operation section of the manual for

details.

Port LEDs: Each port contains a set of ON LINE (Orange) and USB LINK (Green) LEDs. The ON LINE (Orange) LED

represents the status of the KVM. The USB LINK (Green) LED represents the status of the USB 2.0 hub ports. Listed

below are descriptions of the different statuses indicated by the LEDs.

• A dimly lit Orange LED indicates that a powered-on computer is connected to the corresponding port, but is not in

focus.*

• A brightly lit Orange LED indicates that the corresponding port currently has the focus of the KVM.*

• A ﬂashing Orange LED indicates that the corresponding port is currently being accessed in Auto Scan mode.

• When all of the Orange LEDs are ﬂashing, it indicates that the KVM is currently in Firmware Upgrade mode.

• A brightly lit Green LED indicates that the corresponding port currently has the focus of the USB 2.0 hub ports.

* On Line status is detected by the USB connection from the KVM cable. As such, if your source device does not support USB, the

KVM’s On Line status LED will not illuminate dim Orange. When that source is selected, the LED will illuminate as dim Orange, rather

than bright Orange.

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	Bryter
Modell:	B004-HUA4-K
Innebygd skjerm:	Nei
Vekt:	540 g
Bredde:	261.1 mm
Dybde:	71.9 mm
Høyde:	46 mm
Strømkilde:	DC
LED-indikatorer:	Ja
Bruksanvisning:	Ja
Maksimal oppløsning:	1920 x 1200 piksler
Opprinnelsesland:	China
Pakkevekt:	2400 g
Antall HDMI-porter:	5
Hodetelefonutganger:	5
Sertifisering:	FCC, REACH
HDCP:	Ja
HDMI-versjon:	1.3
Antall brukere:	1 bruker(e)
USB-hub:	Ja
AC-inngangsfrekvens:	50 - 60 Hz
Antall mikrofoninnganger:	5
Antall datamaskiner:	4
Antall USB 2.0 Type-A hub-porter:	2
Videobåndbredde:	60 Hz
Lydtilkoblinger:	Ja
Produktfarge:	Sort
HD-type:	WUXGA
Pakkedybde:	210.1 mm
Pakkehøyde:	98 mm
Pakkebredde:	325.1 mm
Kabler inkludert:	KVM
Pakketype:	Boks
Driftstemperatur (T-T):	0 - 50 °C
Oppbevaringstemperaturomåde (Celsius):	-20 - 60 °C
Lagringsrelativ fuktighet:	0 - 80
Bærekraftsertifikater:	RoHS
Harmonisert system (HS)-kode:	8471.80.1000
Ekstern strømadapter:	Ja
DC-inngangskontakt:	Ja
Støttede Windows operativsystemer:	Ja
Antall USB 2.0 Type-B-porter:	4
Relativ luftfuktighet under drift (H-H):	0 - 80
Rack-montering:	Nei
AC-adapter bunt:	Ja
Støttede Mac operativsystemer:	Ja
Støttede Linux operativsystemer:	Ja
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332226126
Masterkassens (ytterkassens) bruttovekt:	12000 g
Masterkassens (ytterkassens) lengde:	341.9 mm
Produkter per masterkasse (ytterkasse):	5 stykker
Masterkassens (ytterkassens) bredde:	512.1 mm
Masterkassens (ytterkassens) høyde:	231.9 mm
Dataoverføringsfrekvens (maks.):	480 Gbit/s
Innput-strøm:	0.5 A
Video tilkoblingstype:	HDMI
Tastatur tilkoblingstype:	USB
Mus tilkoblingstype:	USB
Konsoll porter:	3.5mm headphone, 3.5mm mic, HDMI, USB A
Automatisk skanningsforsinkelse (min.):	5 s
