Side 1/40

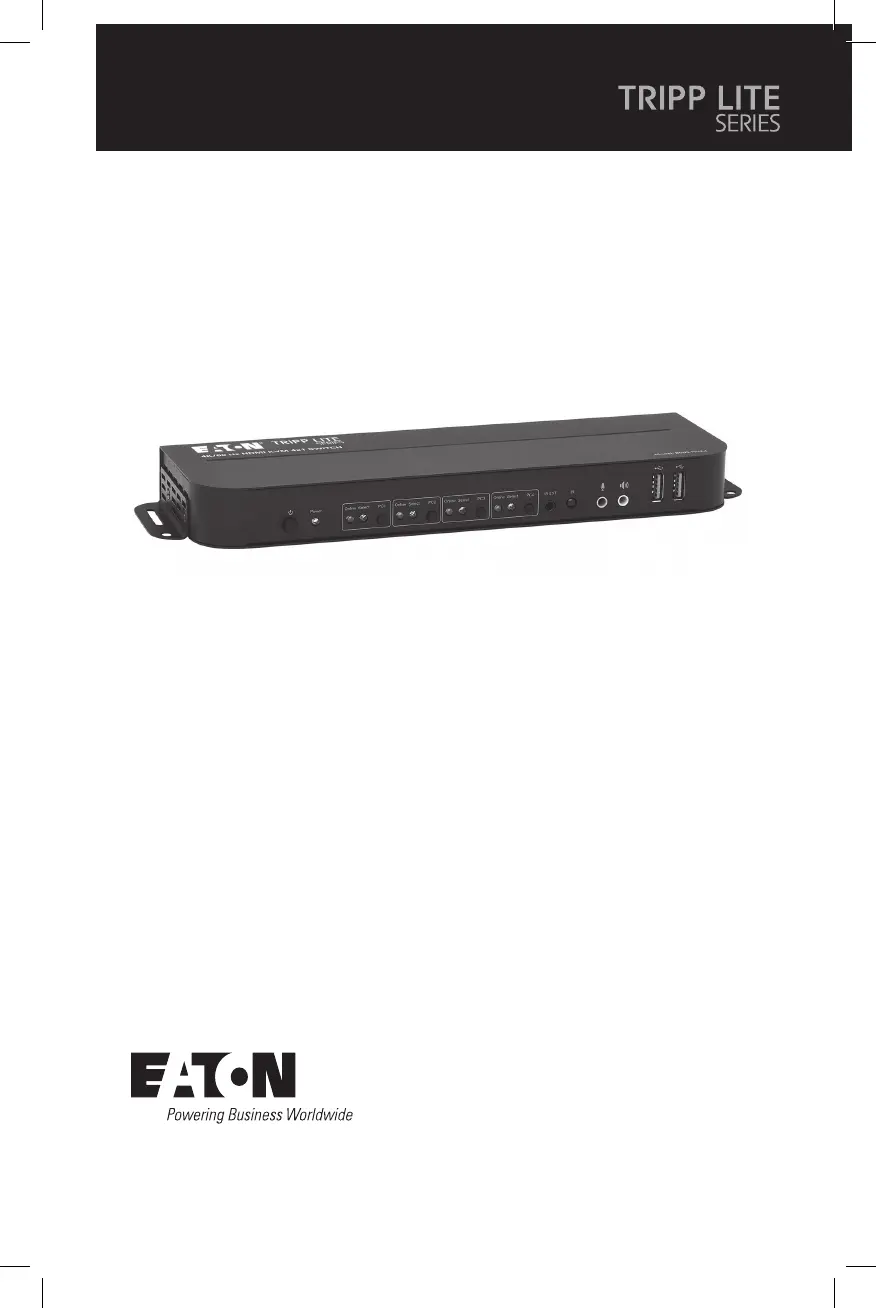

Owner’s Manual

Purchased product

may differ from image.

Model:

B005-HUA4

4-Port HDMI KVM Switch

4K Video, Audio and Peripheral Sharing

Español 9

Français 17

Deutsch 25

Italiano 37

• B005-HUA4 4-Port HDMI KVM Switch

• IR Extender

• IR Remote Control

• External Power Supply (Input: 100–240V, 50/60 Hz, 0.5A; Output: 5V 3A)

• Mounting Hardware

• Owner’s Manual

• P785-HKIT06 or P785-HKIT10 KVM Cables

• U322-Series USB 3.2 Gen 1 A/B Device Cables

• P312-Series Mini Stereo Audio Cables

• P568-Series High-Speed HDMI Cables

Console:

• HDMI monitor capable of supporting the highest resolution of any

computer in the installation

• USB keyboard and mouse

• Microphone and speakers with 3.5 mm mini stereo connectors (optional)

Computer:

• HDMI input

• USB Type-A port

• 3.5 mm stereo microphone and speaker jacks (optional)

• Windows 2000/XP/Vista/Win7/Win8/Win10, Linux or Apple Mac OS

operating system

Package Contents

Optional Accessories

System Requirements

• Controls 4 HDMI computers from a single HDMI video console

• Supports True 4K @ 60 Hz video resolutions, including 4:4:4 HDR and

HDCP 2.2

• SupportsallHDMI2.0specications

• Supports RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2/ YCbCr 4:2:0

• Supports 12 bits per channel (36-bit all channels) Deep Color and 6 Gbps

per channel (18 Gbps all channels) bandwidth

• Built-in 2-port USB 2.0 hub allows USB devices to be shared between

computers connected to the KVM switch

• 3.5 mm stereo jacks allow a microphone to provide audio input to each

connected computer and let you listen to audio output on a set

of speakers

• Additional console audio jacks are conveniently located on the front panel,

making them ideal for use with speakers and microphones

• Switch between connected computers via front-panel pushbuttons,

IR remote, mouse movement or keyboard hotkeys

• Supports hot-plugging – computers and devices can be unplugged

and re-plugged without having to shut down the KVM switch

• Quick installation without the need for software

• Storesthemonitor’sEDID(ExtendedDisplayIdenticationData)to

optimize display resolution

Product Features

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	Bryter
Modell:	B005-HUA4
Innebygd skjerm:	Nei
Vekt:	500 g
Bredde:	243.1 mm
Dybde:	74.9 mm
Høyde:	25.9 mm
Strømkilde:	AC
LED-indikatorer:	Ja
Bruksanvisning:	Ja
Maksimal oppløsning:	4096 x 2160 piksler
Opprinnelsesland:	Vietnam
Pakkevekt:	700 g
Antall HDMI-porter:	5
Hodetelefonutganger:	6
Sertifisering:	CE, FCC, REACH
HDCP:	Ja
HDMI-versjon:	2.0
Antall brukere:	1 bruker(e)
USB-hub:	Ja
Utgangsstrøm:	5 V
Antall skjermer som støttes:	4
AC-inngangsfrekvens:	50 - 60 Hz
Antall mikrofoninnganger:	6
Antall datamaskiner:	4
Videobåndbredde:	60 Hz
Lydtilkoblinger:	Ja
Produktfarge:	Sort
HD-type:	4K Ultra HD
Pakkedybde:	200.4 mm
Pakkehøyde:	65 mm
Pakkebredde:	279.9 mm
Pakketype:	Boks
Strømforbruk (vanlig bruk):	12.15 W
Driftstemperatur (T-T):	0 - 45 °C
Oppbevaringstemperaturomåde (Celsius):	-10 - 80 °C
Lagringsrelativ fuktighet:	5 - 90
Bærekraftsertifikater:	RoHS
Harmonisert system (HS)-kode:	85176200
Kroppsmateriale:	Metall
Ekstern strømadapter:	Ja
DC-inngangskontakt:	Ja
Hurtigtaster:	Ja
Relativ luftfuktighet under drift (H-H):	10 - 85
Rack-montering:	Nei
AC-adapter bunt:	Ja
Plugg inn og spill:	Ja
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332254907
Masterkassens (ytterkassens) bruttovekt:	4200 g
Masterkassens (ytterkassens) lengde:	300 mm
Produkter per masterkasse (ytterkasse):	5 stykker
Masterkassens (ytterkassens) bredde:	340.1 mm
Masterkassens (ytterkassens) høyde:	199.9 mm
Dataoverføringsfrekvens (maks.):	5 Gbit/s
Video tilkoblingstype:	HDMI
Kompatible strømkontakt typer:	AU, EU, UK, US
Tastatur tilkoblingstype:	USB
Mus tilkoblingstype:	USB
Konsoll porter:	3.5mm headphone, 3.5mm mic, HDMI, USB A
Antall konsoll USB porter:	2
Trykk på knapp:	Ja
Lyd-kanaler:	7.1
Antall USB 3.2 Gen 1 (3.1 Gen 1)Type-B-porter:	4
Antall USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports:	2
Automatisk skanningsforsinkelse (min.):	5 s
Automatisk skanningsforsinkelse (maks.):	999 s
