Owner’s Manual

NetController

™

Console KVM and

Rackmount KVM Switches

Models: B040-008-19, B040-016-19, B042-004, B042-008 and B042-016

Series No: AGCB6533

1. Features .....................................................................2

1.1 General Features ....................................................... 2

1.2 Package Contents ...................................................... 2

1.3 Hardware/Software Support .......................................2

1.4 Cable Requirements ................................................... 2

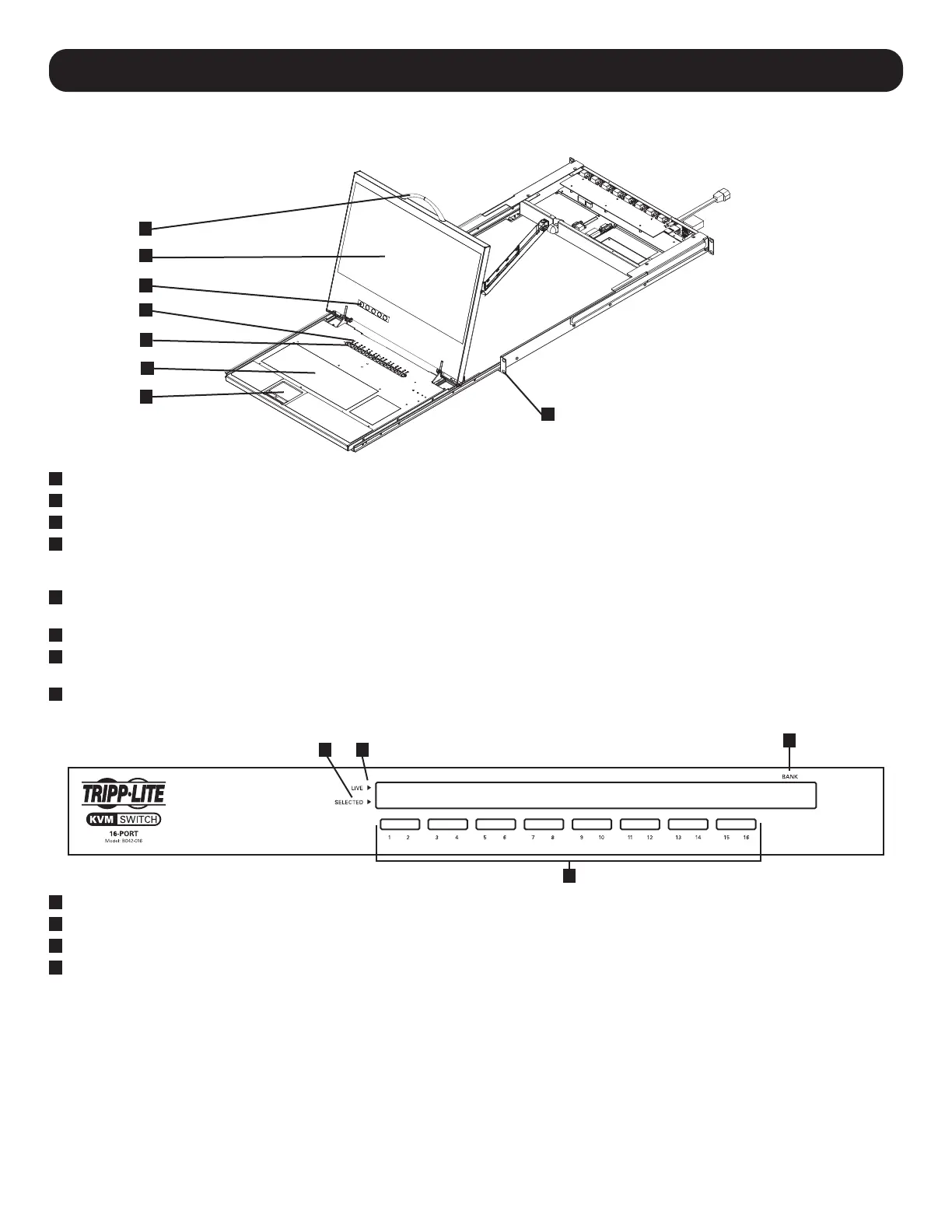

1.5 External Views ........................................................... 3

2. Installation .....................................................................5

2.1 Rackmounting Guidelines ...........................................5

2.2 Rackmounting Instructions .........................................5

2.3 Connecting PCs and Peripherals to a Single Switch .... 5

2.4 Daisy-Chaining ........................................................... 6

3. Operation .....................................................................7

3.1 Control Interfaces ...................................................... 7

3.1.1 Push Buttons .....................................................7

3.1.2 Keyboard Hotkeys ..............................................7

3.1.3 On-Screen Display .............................................. 7

3.2 OSD Main Menu ......................................................... 8

3.2.1 Switching Ports Via OSD Main Menu ....................8

3.2.2 Editing Port Names ............................................. 8

3.2.3 Setting Ports as Easy View Ports ..........................8

3.2.4 Exiting the OSD .................................................. 8

3.2.5 Logging Out of the KVM Switch ............................8

3.2.6 Initiate an Auto Scan ..........................................8

3.2.7 Navigate to the OSD Setup Page .........................8

3.3 OSD Setup Page ........................................................ 9

3.3.1 Auto Logout .......................................................9

3.3.2 OSD Timeout .....................................................9

3.3.3 Auto Scan Period ...............................................9

3.3.4 Title Bar ............................................................9

3.3.5 Hotkey ..............................................................9

3.3.6 Password ..........................................................9

3.3.7 Load Default .................................................... 10

3.3.8 OSD Appearance ..............................................10

3.3.9 Auto Scan Mode ..............................................10

3.3.10 Status Page .....................................................10

3.4 Upgrade Firmware ....................................................10

4. Technical Speciﬁcations ...............................................12

5. Warranty and Product Registration ..............................12

Español ..............................................................................13

Français .............................................................................25
