Owner’s Manual

Unmanaged Network

Gigabit Ethernet Switches

Models: NG16, NG24

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

PROTECT YOUR INVESTMENT!

and ultimate peace of mind.

You could also win an

ISOBAR6ULTRA surge protector—

a $100 value!

www.tripplite.com/warranty

Español 7 • Français 13

16-09-176-9335EA.indb 1 9/15/2016 2:07:08 PM

Important Safety Instructions

SAVE THESE INSTRUCTIONS!

This manual contains important instructions and warnings that

should be followed during the installation, operation and storage of

this Tripp Lite product. Failure to heed these warnings may affect

your warranty.

Switch Location Warnings

• The switch is designed for indoor use only, in a controlled environment, away from excess

moisture, temperature extremes, conductive contaminants, dust or direct sunlight.

• For best performance, maintain an indoor temperature between 32º F and 104º F (0º C

and 40º C) with relative humidity between 10% and 90% (non-condensing).

• Leave adequate space around all sides of the switch for proper ventilation.

• Keep the switch away from high-frequency, strong-current devices (e.g., radio transmitting

stations, transmitters and broadband ampliﬁers).

• Use electromagnetic shielding (if required).

• For rackmount conﬁguration, ensure that both the rack and switch are properly grounded.

• If the switch is not rack mounted, securely place it on a sturdy, ﬂat surface.

• The electrical outlets supplying power to the equipment should be installed near the

equipment and easily accessible.

• Improper installation can cause product damage that is not covered by the warranty.

• Do not expose the network switch’s connected networking cables to outdoor elements.

• Do not use this product near water (e.g., in a wet basement, or near a swimming pool).

• Use of this equipment in life support applications where failure of this equipment can

reasonably be expected to cause the failure of the life support equipment or to signiﬁcantly

affect its safety or effectiveness is not recommended. Do not use this equipment in the

presence of a ﬂammable anesthetic mixture with air, oxygen or nitrous oxide.

Switch Connection Warnings

• Keep the switch’s input power off during installation.

• Use only the power adapter included with the switch.

• Make sure the power supply voltage matches the speciﬁcations indicated on the switch.

• Connect the switch to an outlet that is in accordance with your local building codes and

that is adequately protected against excess currents, short circuits and earth faults.

• Do not connect the switch to an ungrounded outlet or to extension cords or adapters that

eliminate the connection to ground.

• Do not drill into or attempt to open any part of the switch housing. There are no user-

serviceable parts inside.

• Do not attempt to modify the switch, including the input plugs and power cables.

• Do not attempt to use the switch if any part of it becomes damaged.

• Make sure network cables are properly seated. A clicking sound will be made when a

cable is installed correctly.

• If the power adapter is damaged, do not attempt to connect the switch. Contact a Tripp

Lite Service Representative for assistance.

• Never attempt to install or use the switch during a thunderstorm.

16-09-176-9335EA.indb 2 9/15/2016 2:07:08 PM

Package Includes

• NG16 or NG24 Unmanaged Network Gigabit Ethernet Switch

• Detachable Power Cord

• Mounting Brackets (2)

• Screws (8)

• Rubber feet (4)

• Owner’s Manual

NG16

NG24

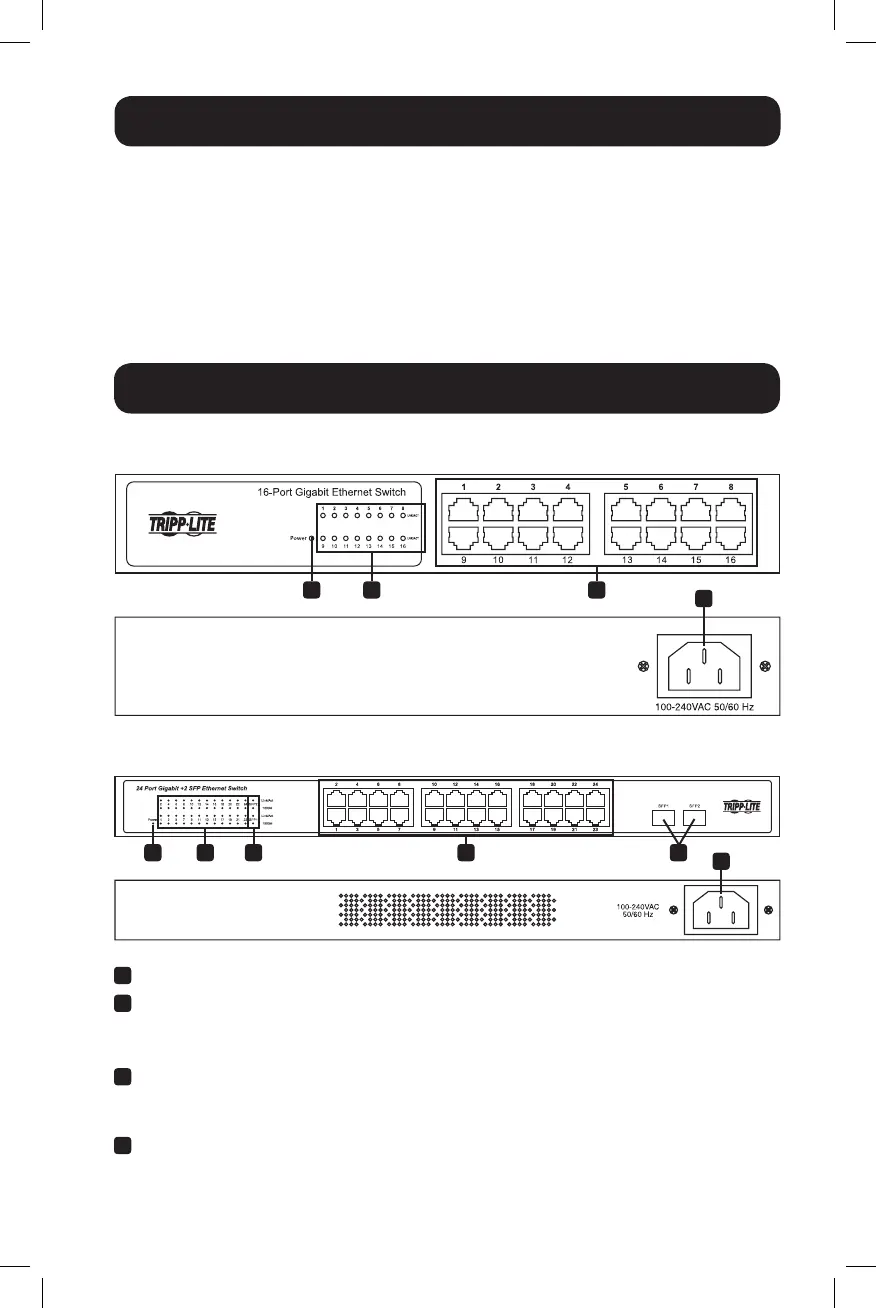

Product Features

5 6 3 7

Power ON/OFF LED: An LED illuminates to indicate the switch is receiving power.

NG16 Port LEDs: There is one LED per RJ45 port. The LED is ON when a 10/100/1000

connection is present and blinks when the port is active.

Note: Not compatible with PoE (Power-over-Ethernet) applications.

Gigabit Ethernet Ports: The 16 or 24 twisted-pair RJ45 ports support auto-negotiable

10/100/1000 Mbps and auto MDI/MDIX cross-over detection functions for true “plug

and play” capability.

AC Input: This 100-240V 50/60 Hz C14 inlet accepts the supplied AC power cord or

any country-speciﬁc AC power cord supplied by the user.

16-09-176-9335EA.indb 3 9/15/2016 2:07:08 PM

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	Bryter
Modell:	NG24
Vekt:	2450 g
Bredde:	439.9 mm
Dybde:	205 mm
Høyde:	43.9 mm
LED-indikatorer:	Ja
Bruksanvisning:	Ja
Opprinnelsesland:	China
Pakkevekt:	3400 g
Strømforbruk (maks.):	20 W
Nettverksstandard:	IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Auto MDI/MDI-X:	Ja
AC-inngangsspenning:	100 - 240 V
Jumbo rammer:	9000
Produktfarge:	Sort
Pakkedybde:	563.9 mm
Pakkehøyde:	91.4 mm
Pakkebredde:	297.2 mm
Kabler inkludert:	AC
Driftstemperatur (T-T):	0 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	-40 - 70 °C
Harmonisert system (HS)-kode:	8517.62.0020
Formfaktor:	1U
Relativ luftfuktighet under drift (H-H):	10 - 90
Rack-montering:	Ja
Monteringsbeslag inkludert:	Ja
Svitsjtype:	Uhåndtert
Antall Basic switching RJ-45 Ethernet-ports:	24
Basic switching RJ-45 Ethernet ports-type:	Gigabit Ethernet (10/100/1000)
Størrelse på adressetabell:	- oppføringer
Ruting/svitsjekapasitet:	52 Gbit/s
Plugg inn og spill:	Ja
Jumbo Frames-støtte:	Ja
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332194739
Masterkassens (ytterkassens) bruttovekt:	14920 g
Masterkassens (ytterkassens) lengde:	574 mm
Produkter per masterkasse (ytterkasse):	4 stykker
Masterkassens (ytterkassens) bredde:	398.8 mm
Masterkassens (ytterkassens) høyde:	325.1 mm
SFP module antall spor:	2
MAC-adresse automatisk læring støttes:	Ja
MAC-adresse automatisk aldring støttes:	Ja
