Side 1/13
Version 1.5 ©Copyright 2017, Ambient LLC. All Rights Reserved. Page 1
Ambient Weather F007PF 8-Channel Wireless
Floating Pool and Spa Thermometer User Manual
Table of Contents
1 Introduction ..................................................................................................................................... 2
2 Warnings ......................................................................................................................................... 2
3 Getting Started ................................................................................................................................ 2
2.2 Floating Pool and Spa Thermometer Sensor Set Up ..................................................................... 2
2.3 Sensor Placement .......................................................................................................................... 9
4 Maintenance .................................................................................................................................... 9
5 Glossary of Terms ......................................................................................................................... 10
6 Specications ................................................................................................................................ 10
4.1 Wireless Specications ............................................................................................................... 10
4.2 Measurement Specications ....................................................................................................... 10
4.3 Power Consumption .................................................................................................................... 10
7 Troubleshooting Guide .................................................................................................................. 10
8 Accessories ................................................................................................................................... 11
9 Liability Disclaimer ...................................................................................................................... 12
10 FCC Statement .......................................................................................................................... 12
11 Warranty Information ............................................................................................................... 13
Version 1.5 ©Copyright 2017, Ambient LLC. All Rights Reserved. Page 2
1 Introduction
Thank you for your purchase of the Ambient Weather F007PF 8-Channel Wireless Floating Pool and
Spa Thermometer. The following user guide provides step by step instructions for installation,
operation and troubleshooting. To download the latest manual and additional troubleshooting tips,
please visit the FAQ website:
http://ambientweather.wikispaces.com/f007pf
The P007PF transmits wirelessly to any compatible Ambient Weather receiver, including the -07, WS
WS-08 and WS-09, WS-10, WS-14, WS-15, WS-16, and WS-21 wireless weather station display
consoles. Other console models may be added later, and will be listed on the FAQ website.
2 Warnings
Desiccant Pack Warning
Do not remove the enclosed desiccant pack(s). We recommend replacing the pack(s) once per year.
3 Getting Started
Note: The power up sequence must be performed in the order shown in this section (insert
batteries in the remote transmitter (s) first, Display Console second).
2.1 Parts List
QTY
Item
1
Thermometer transmitter (F007PF) for pool/SPA
Dimensions (LxHxW): 8.5x ” x 4.2 3.7 (216x106x95mm)
LCD Dimensions (LxW): 1.1 x 0.62 ( x16mm) 27
Remote sensor depth: 7.1 (180mm)
2
User Manual
2.2 Floating Pool and Spa Thermometer Sensor Set Up
Note: We recommend fresh alkaline batteries for temperature ranges between -4 and 140 °F °F
and fresh lithium batteries for temperature ranges between -40 and 140 °F °F. The solar panel does not
charge the batteries, so rechargeable batteries are not needed or recommended.
Version 1.5 ©Copyright 2017, Ambient LLC. All Rights Reserved. Page 3

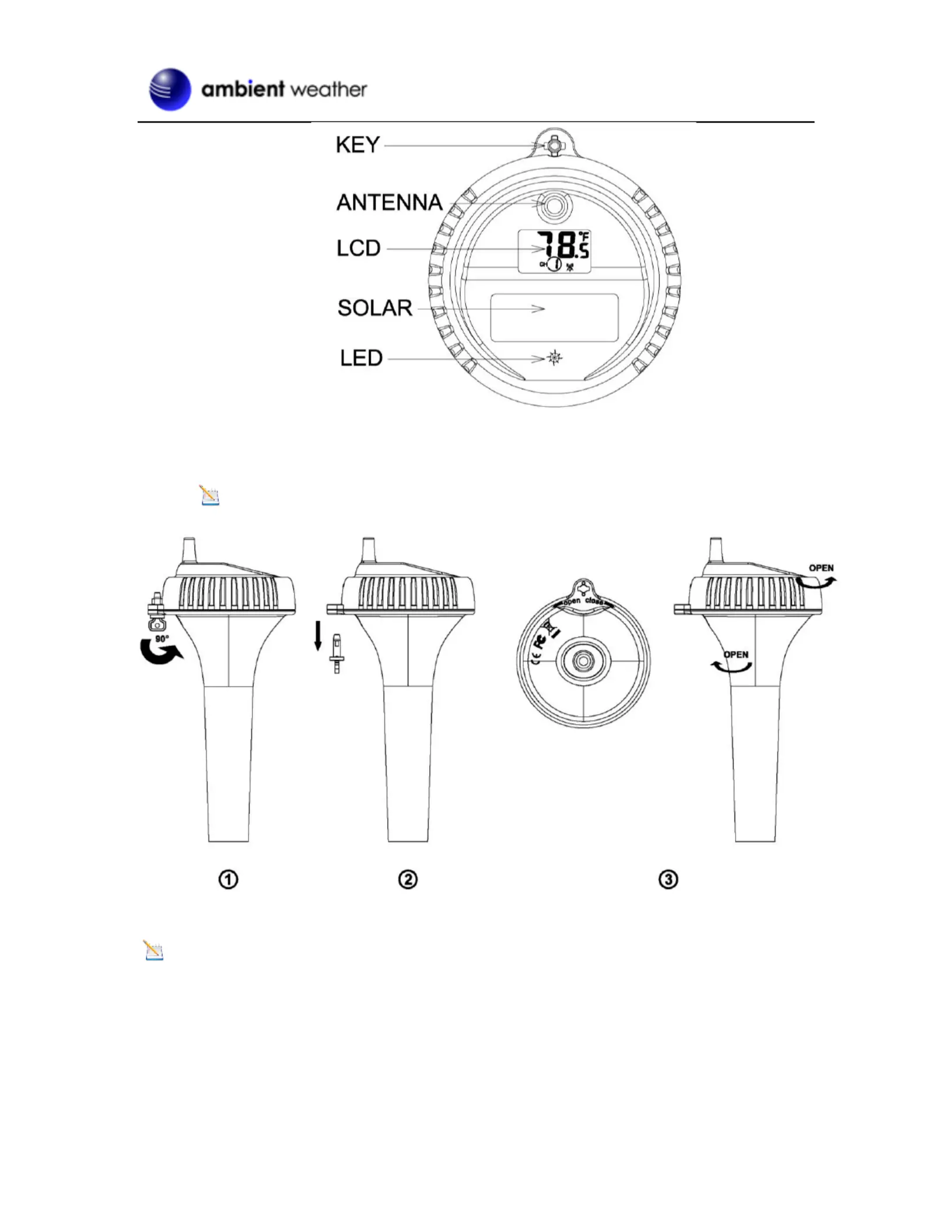

Figure 1
1. To insert the batteries,, (1) Twist the KEY lid to unlock, (2) remove the key, and (3) twist the
main body of the sensor by removing the , as shown in Figure 2 . lid
IMPORTANT NOTE: Turn the lid counter clockwise to open, like the lid of a jar.
Turning the lid clockwise may overtighten the lid.
Figure 2
IMPORTANT NOTE: Turn the lid counter clockwise to open, like the lid of a jar (Figure 3).
Turning the lid clockwise may overtighten the lid.
