Version 1.0 ©Copyright 2015, Ambient LLC. All Rights Reserved. Page 1
Ambient Weather WS-23 Wireless Indoor/Outdoor
8-Channel Thermo-Hygrometer with Backlit Display User
Manual
Table of Contents
1 Introduction ..................................................................................................................................... 2
2 Getting Started ................................................................................................................................ 2
2.1 Parts List ................................................................................................................................. 2
2.2 Recommend Tools .................................................................................................................. 2
2.3 Thermo-Hygrometer Sensor Set Up .............................................................................................. 2
2.4 Display Console Set Up ................................................................................................................ 4
2.4.1 Display Console Layout ......................................................................................................... 5
2.4.2 Sensor Operation Verification ................................................................................................ 6
3 Remote Sensor Installation ............................................................................................................. 6
4 Console Operation........................................................................................................................... 7
4.1 Min/Max Mode ............................................................................................................................. 7
4.2 Clearing Min/Max Daily ........................................................................................................ 7
4.3 Outdoor Channel Selection and Scroll Mode ................................................................................ 8
4.4 Temperature Units of Measure ...................................................................................................... 8
4.5 Sensor Search Mode and Resyncing the Sensors .......................................................................... 8
4.6 Best Practices for Wireless Communication ................................................................................. 8
4.7 Backlight Operation ...................................................................................................................... 9
4.7.1 Backlight Operation, Battery Power .................................................................................. 9
4.7.2 Backlight Operation, AC Power (optional) ........................................................................ 9
4.8 Adjustment or Calibration ............................................................................................................. 9
4.8.1 Indoor Temperature and Humidity Calibration ...................................................................... 9
4.8.2 Outdoor Temperature and Humidity Calibration ................................................................. 10
5 Glossary of Terms ......................................................................................................................... 11
6 Specifications ................................................................................................................................ 11
6.1 Wireless Specifications ............................................................................................................... 11
6.2 Measurement Specifications ....................................................................................................... 11
6.3 Power Consumption .................................................................................................................... 11
7 Troubleshooting Guide .................................................................................................................. 11
8 Accessories ................................................................................................................................... 13
9 Liability Disclaimer ...................................................................................................................... 13
10 FCC Statement .......................................................................................................................... 14
11 Warranty Information ............................................................................................................... 14
Version 1.0 ©Copyright 2015, Ambient LLC. All Rights Reserved. Page 2
1 Introduction
Thank you for your purchase of the Ambient Weather WS-23 Wireless Indoor/Outdoor 8-Channel
Thermo-Hygrometer with Backlit Display. The following user guide provides step by step instructions
for installation, operation and troubleshooting. To download the latest manual and additional
troubleshooting tips, please visit:
http://ambientweather.wikispaces.com/ws23
2 Getting Started
Note: The power up sequence must be performed in the order shown in this section (insert
batteries in the remote transmitter(s) first, Display Console second).
The WS-23 weather station consists of a display console (receiver), and a thermo-hygrometer (remote
transmitter).
2.1 Parts List
QTY
Item
1
Display Console
Frame Dimensions (LxHxW): 6 x 3.25 x 1 in
LCD Dimensions (LxW): 4.5 x 2.5"
LCD Segment Height: 1 inch
1
Thermo-hygrometer transmitter (FT007TH)
Dimensions (LxHxW): 4.5” x 2.0” x 0.75”
1
User Manual
2.2 Recommend Tools
Hammer and nail for hanging remote thermo-hygrometer transmitter.
2.3 Thermo-Hygrometer Sensor Set Up
Note: Do not use rechargeable batteries. They tend to have a lower operating voltage, do not have
a wide temperature range, and do not last as long as non-rechargeable batteries.
We recommend fresh alkaline batteries for outdoor temperature ranges between -4 °F and 140 °F and
fresh lithium batteries for outdoor temperature ranges between -40 °F and 140 °F.
Version 1.0 ©Copyright 2015, Ambient LLC. All Rights Reserved. Page 3

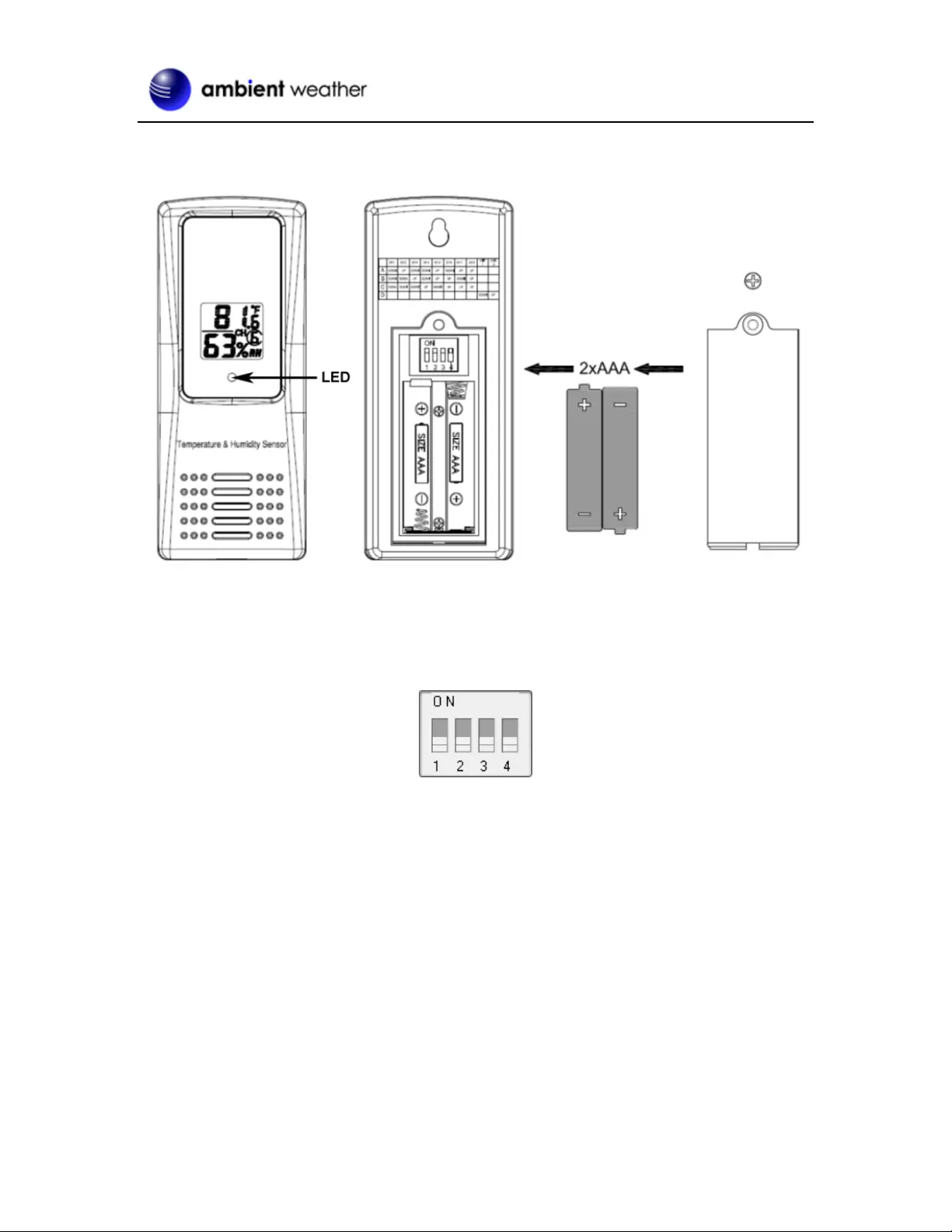

1. Remove the battery door on the back of the sensor by removing the set screw, as shown in
Figure 1 .
Figure 1
2. BEFORE inserting the batteries, locate the dip switches on the inside cover of the lid of the
transmitter.
Figure 2 displays all four switches in the OFF position (factory default setting).
Figure 2
3. Channel Number: The WS-23 supports up to eight transmitters. To set each channel number
(the default is Channel 1), change Dip Switches 1, 2 and 3, as referenced in Table 1.
4. Temperature Units of Measure: To change the transmitter display units of measure (°F
vs. °C), change Dip Switch 4, as referenced in Table 1.
