Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.071720
SOCGM-18L
Radio Replacement Interface for
GM LAN v2 (LIN) Bus Vehicles
1 of 2
RAD IO REPL AC EM ENT
SWC R ET ENT IO N
R
INTERFACING SOLUTIONS
- Retains factory features in select GM LAN V2 (LIN) Bus vehicles while functioning with an aftermarket radio.
- Supports non-amplied Systems only.
- Retains chime functions.
- Retains RAP (Retained Accessory Power).
PRODUCT FEATURES:
PARTS INCLUDED:
SOCGM-18L Module SOCGM-18L Harness Antenna Adapter

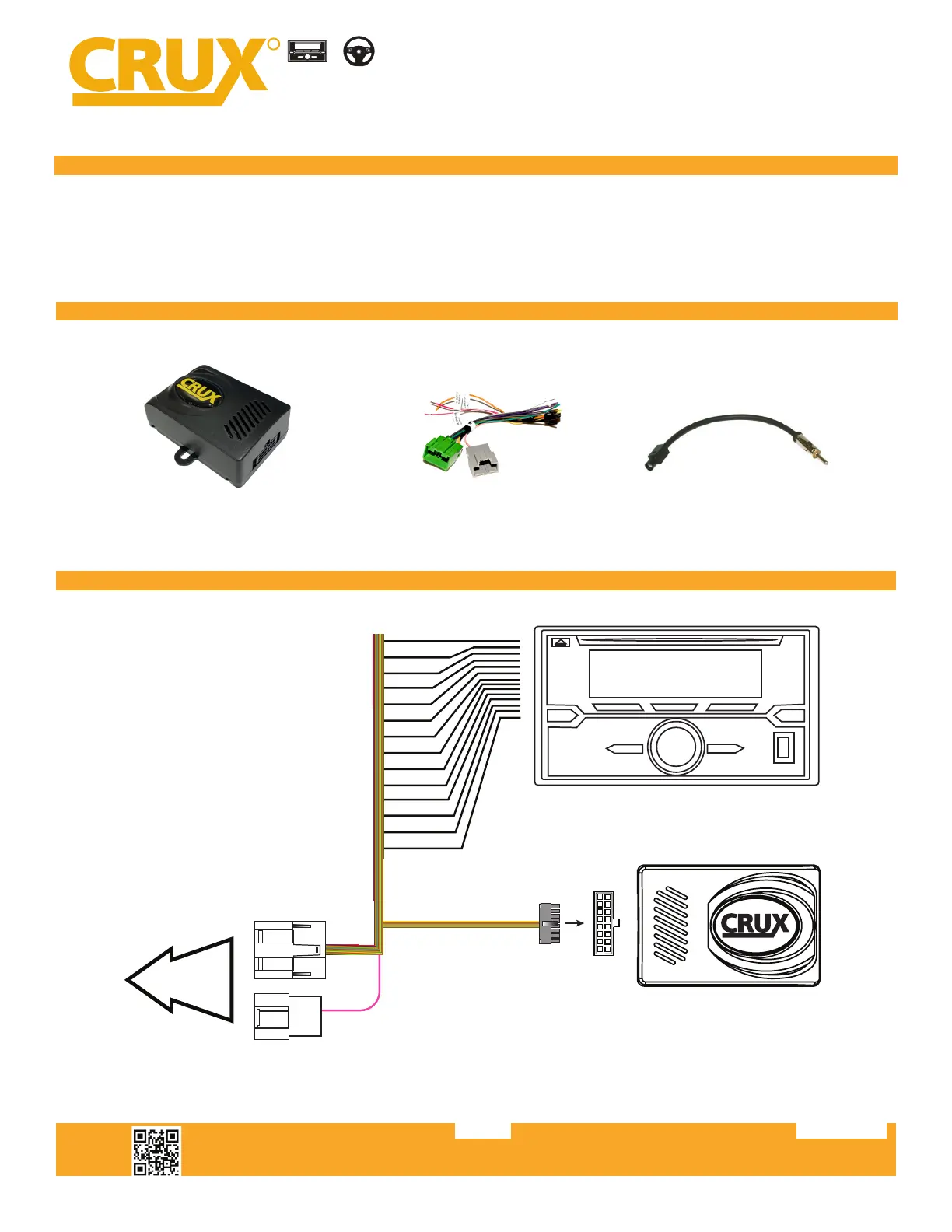

INSTALLATION DIAGRAM:
AFTERMARKET
RADIO
Reverse Red/White












TO FACTORY
HARNESS
16-Pin Black
Connector
16-Pin Green
Connector
20-Pin Gray
Connector
INTERFACING SOLUTIONS
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.071720
SOCGM-18L
Radio Replacement Interface for
GM LAN v2 (LIN) Bus Vehicles
2 of 2
RAD IO R EPL AC EM ENT
SWC R ET ENT IO N
R
INTERFACING SOLUTIONS
INSTALLATION INSTRUCTIONS:
1. Connect the aermarket radio’s
power/speaker harness to the SOCGM-
18L T-Harness using the Installaon
Diagram on page 1. Use good quality
crimp caps or bu splice for a
secure connecon. Solder and heat
shrinking the connecons is highly
recommended.
2. Carefully remove the radio trim with a plasc
pry tool and pull outward.
3. Remove the radio bezel by removing the
4 screws on the corners.
4. Unplug the GREEN and GRAY
connectors from the headunit.
5. Plug the GREEN and GRAY connectors to the
SOCGM-18L T-Harness.
6. Use the supplied antenna adapter to plug
between the OE antenna connector and
aermarket radio antenna port.
7. Use a dash kit (not included) for a clean install. Test the radio for funconality. Test the chime and Retained Accessory Power (RAP)
funcons. Reverse the process to install the new aermarket radio.
VEHICLE APPLICATIONS:
BUICK
2017
2016
2014 - 2015
CADILLAC
2015 - 2016
2014 - 2015
2015
2015 - 2016
2017
Envision
LaCrosse
Regal
ATS
CTS
Escalade
SRX
ET5
CHEVROLET
2018
2015 - 2016
2017 - 2018
2016
2014 - 2016
2017 - 2019
2016 2018
2014 2016
2017 - 2018
2015 2019
2015 2019
Camaro (w/ 8 iO5/iO6)
Colorado
Colorado (w/ 8 iO5/iO6)
Cruze
Impala (w/ 8 iO5/iO6)
Impala (w/ 8 iO5/iO6)
Malibu (w/ 8 iO5/iO6)
Silverado
Silverado (w/ 8 iO5/iO6)
Suburban
Tahoe
GMC
2017
2015 2016
2014 2016
2017 - 2018
2015 - 2016
2017 - 2019
2015 - 2019
Acadia (w/ 8 iO5/iO6)
Canyon
Sierra
Sierra w/ 8 iO5/iO6)
Sierra HD
Sierra HD w/ 8 iO5/iO6)
Yukon / XL
