SWRTY-61P
SWC Module
TOY Box TY-61P Harness Speaker
Harness
SWC Cable USB Adapter Antenna Adapter
A 91311
.cruxinterfacing.com
SWRTY-61P
Radio Replacement Interface with Steering Wheel Control and
1 of 4
RADIO REP LACEMENT
SWC RE TENTION
+
R
INTERFACING SOLUTIONS
PRODUCT FEATURES:
PARTS INCLUDED:

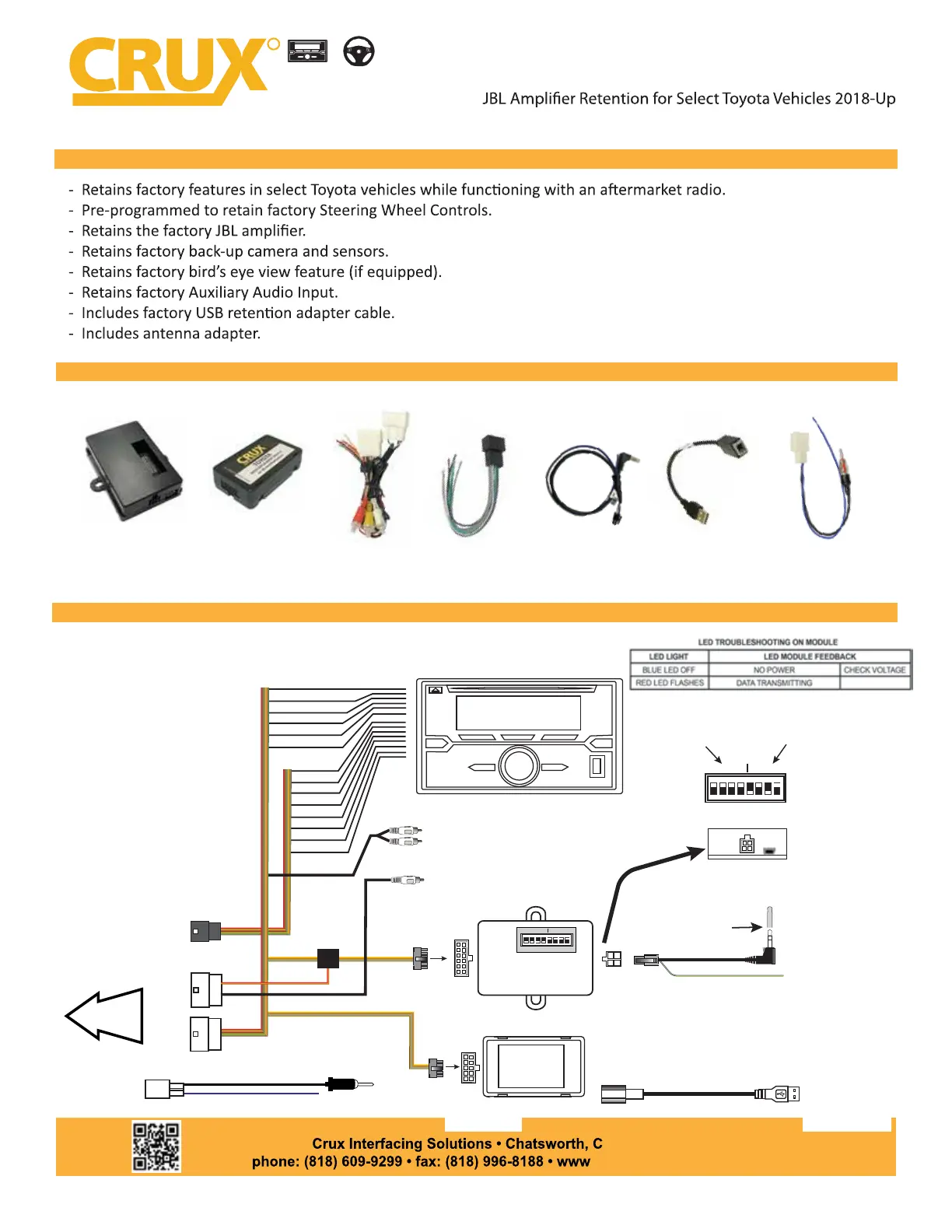

INSTALLATION DIAGRAM:
AFTERMARKET
RADIO
+12V Constant Yellow
+12V ACC Red
Ground Black
Reverse Gear Output Purple/White
Vehicle Speed Sense Pink
Parking Brake Output Green
Right Front (+) Gray
Right Front (-) Gray/Black
Left Front (+) White
Left Front (-) White/Black
Right Rear (+) Violet
Right Rear (-) Violet/Black
Left Rear (+) Green
Left Rear (-) Green/Black
Audio Input
Red/White RCA
(Retains Factory AUX Input)
TO FACTORY
HARNESS
12-Pin Black
Connector
30 PIN
USB Retention Adaptor
(included in kit)
ANTENNA ADAPTOR
(Included in Kit)
Blue / Antenna Turn On
28 PIN
Yellow RCA
(Retains OE Camera)
Rear View Camera Signal Output
AFTERMARKET
RADIO SELECTOR
(See Chart)
TOYOTA
SWC SETTING
(OFF ON OFF ON)
ON RADIO VEHICLE
1 2 3 4 5 6 7 8
ON RADIO VEHICLE
1 2 3 4 5 6 7 8
4-Pin
Connector
Cap or insulate if
not being used
Kenwood/JVC (BLUE / YELLOW)
Insulate with tape
if not being used
3.5MM SWC CABLE
Plug in the 3.5MM SWC cable to the 4-pin port
on the module. See below for DIP switch settings.
TOY BOX
SWC BOX
10-Pin Black
Connector
rev.073125
A 91311
.cruxinterfacing.com
2 of 4
RADIO REP LACEMENT
SWC RE TENTION
+
R
INTERFACING SOLUTIONS
SWRTY-61P
Radio Replacement Interface with Steering Wheel Control and

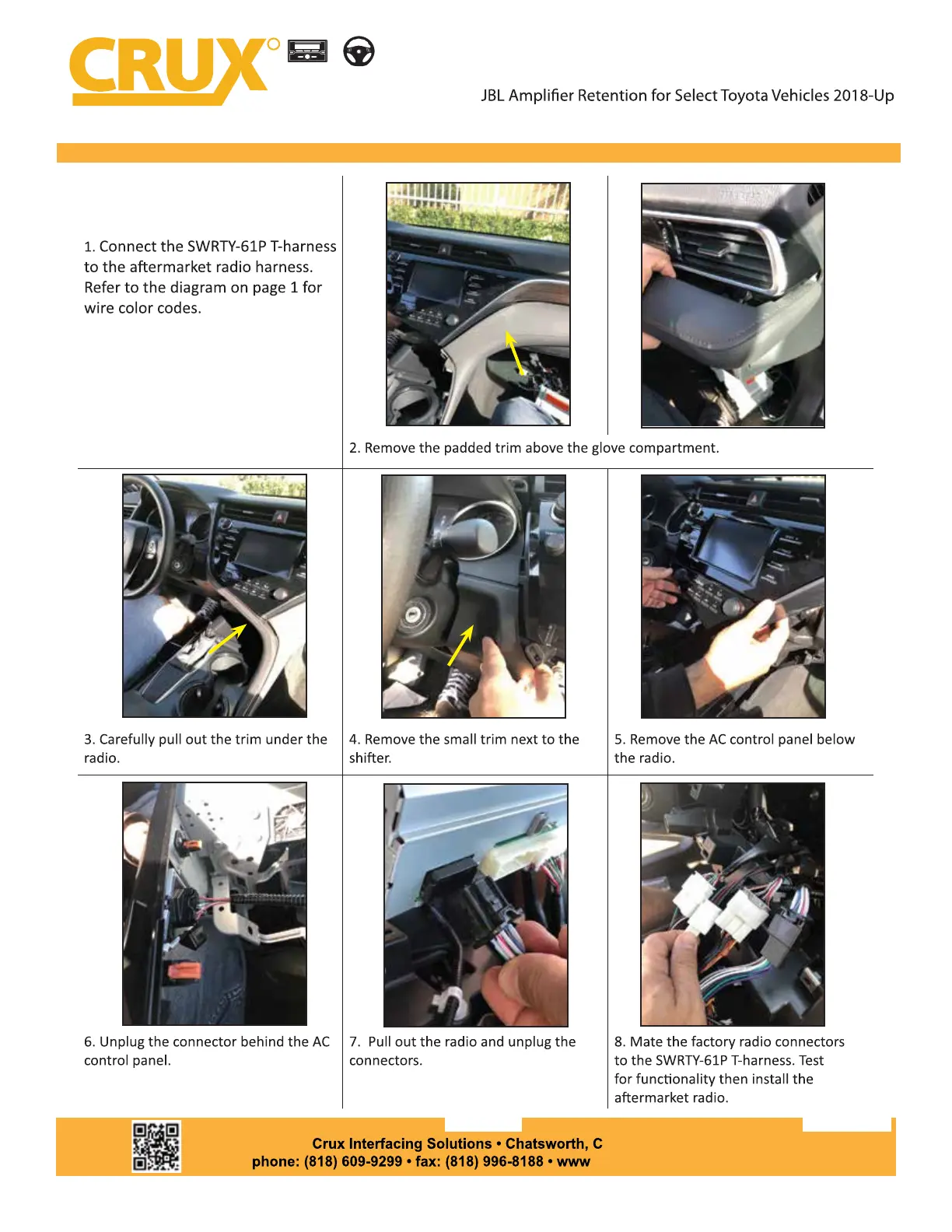

INSTALLATION INSTRUCTIONS:
rev.073125
