Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.022025
SWRNS-63N
Radio Replacement with Steering Wheel Control Retention
for Select 2012-2019 NISSAN Vehicles w/ Navigation
1 of 6
RAD IO REPL ACEMENT
SWC RETENTIO N
+
R
INTERFACING SOLUTIONS
- Pre-programmed to retain factory Medium Speed CAN-Data Bus Steering Wheel Controls.
- Includes antenna adapter
- Retains Bose Amplifier system.
- Retains factory auxilary input
- Retains factory camera (not 360 panoramic camera)
- Retains factory USB input
- Provides Reverse Gear Output
PRODUCT FEATURES:
PARTS INCLUDED:
Antenna Adapter
SWRNS-63N MODULE
SWC Cables USB Retention Cable
Optional Acc wire
24 PIN
20 PIN

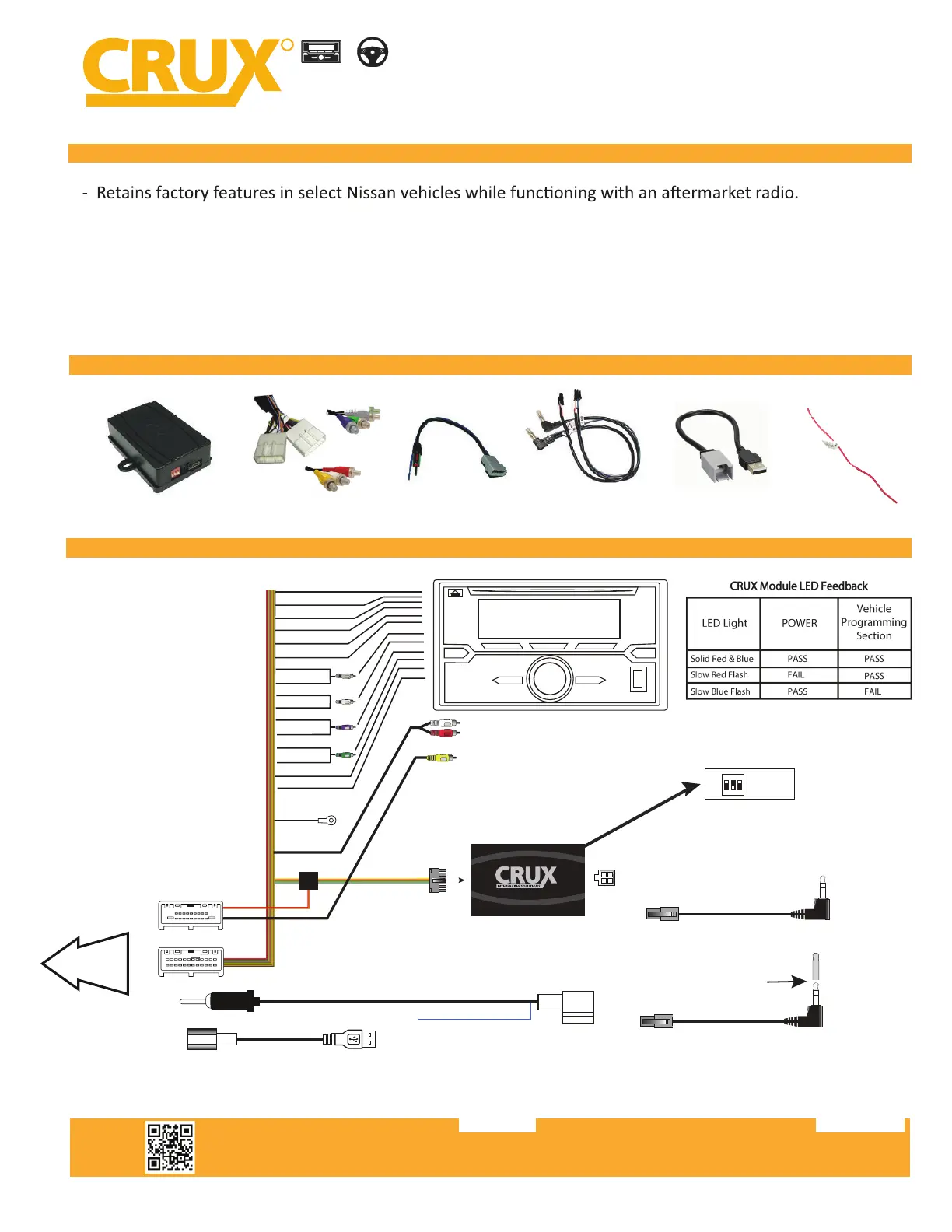

INSTALLATION DIAGRAM FOR AMPLIFIED VEHICLES:
AFTERMARKET
RADIO
+12V Constant Yellow
+12V ACC Red
Ground Black
Illumination (+) Orange
Illumination (-) Orange/ White
Amp Turn On
Blue/ White
Right Front (+) Gray
Right Front (-) Gray/Black
Left Front (+) White
Left Front (-) White/Black
Right Rear (+) Violet
Right Rear (-) Violet/Black
Left Rear (+) Green
Left Rear (-) Green/Black
VSS (Vehicle Speed Signal)
Brown/White
Chassis Ground Black
Reverse Gear Output
Violet/White
(with Ring Terminal)
TO FACTORY
HARNESS
12-Pin Black
Connector
BLUE/ Power Antenna
4-Pin
Connector
Yellow RCA
(Retain OE Camera)
Rear View Camera Signal
Option A:
Option B:
Cap or insulate if
not being used
BLUE / YELLOW
Insulate with tape
if not being used
3.5MM SWC CABLES (Option A or B)
Use the proper 3.5MM to 4-Pin cable for your radio.
Plug in the selected 3.5MM SWC cable to the 4-pin port
on the module. See “DIP SWITCH SETTINGS” section.
To aftermarket
radio SWC wire
or 3.5mm port
1 2 3
ON
12v to 6v
Converter
Audio Input Red/White RCA
(Retains Factory AUX Input)
• For Amplied Systems Please Do Not Cut RCA to get better audio quality
USB-Min2
USB Retention Adaptor
(included in kit)
SWRNS-63N Harness

Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.022025
Radio Replacement with Steering Wheel Control Retention
for Select 2012-2019 NISSAN Vehicles w/ Navigation
2 of 6
RAD IO REPL ACEMENT
SWC RETENTIO N
+
R
INTERFACING SOLUTIONS

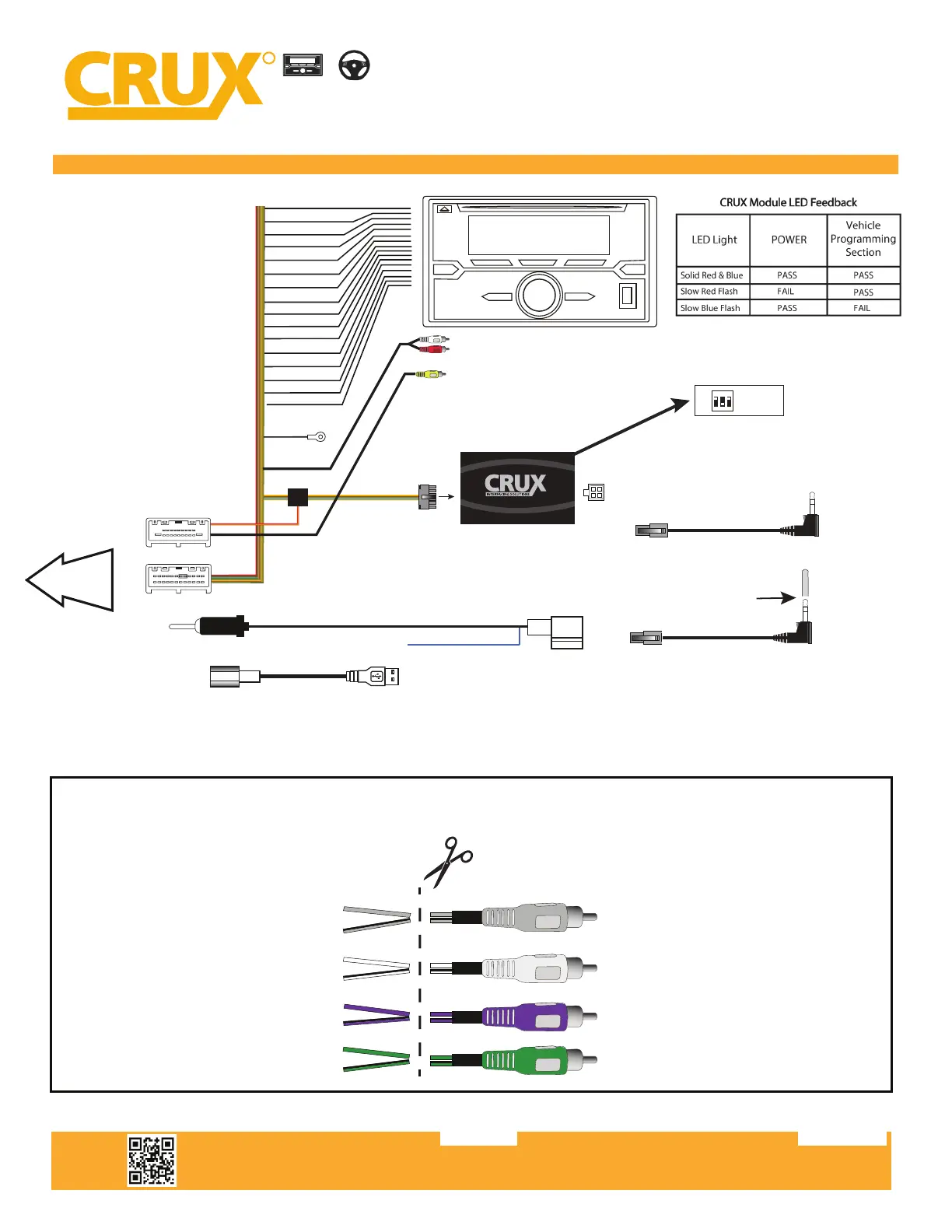

INSTALLATION DIAGRAM FOR NON-AMPLIFIED VEHICLES:
AFTERMARKET
RADIO
+12V Constant Yellow
+12V ACC Red
Ground Black
Illumination (+) Orange
Illumination (-) Orange/White
Amp Turn On
Blue/ White
Right Front (+) Gray
Right Front (-) Gray/Black
Left Front (+) White
Left Front (-) White/Black
Right Rear (+) Violet
Right Rear (-) Violet/Black
Left Rear (+) Green
Left Rear (-) Green/Black
VSS (Vehicle Speed Signal) Brown/White
Chassis Ground Black
Reverse Gear Output
Violet/White
(with Ring Terminal)
TO FACTORY
HARNESS
12-Pin Black
Connector
BLUE/ Power Antenna
4-Pin
Connector
Yellow RCA
(Retain OE Camera)
Rear View Camera Signal
Option A:
Option B:
Cap or insulate if
not being used
BLUE / YELLOW
Insulate with tape
if not being used
3.5MM SWC CABLES (Option A or B)
Use the proper 3.5MM to 4-Pin cable for your radio.
Plug in the selected 3.5MM SWC cable to the 4-pin port
on the module. See “DIP SWITCH SETTINGS” section.
To aftermarket
radio SWC wire
or 3.5mm port
1 2 3
ON
USB-Min2
USB Retention Adaptor
(included in kit)
12v to 6v
Converter
Audio Input Red/White RCA
(Retains Factory AUX Input)
*
*
*
*
*
*
*
*
Green RCA (Left Rear)
Gray RCA (Right front)
White RCA (Left front)
Violet RCA (Right Rear)
Right Front (+)
Right Front (-)
Left Front (+)
Left Front (-)
Right Rear (+)
Right Rear (-)
Left Rear (+)
Left Rear (-)
GRAY
GRAY/BLACK
WHITE
WHITE/BLACK
VIOLET
VIOLET/BLACK
GREEN
GREEN/BLACK
*
For Non-Amplied systems please cut RCA , and mate colored wires
to the appropriate aftermarket radio speaker wires
SWRNS-63N
24 PIN
20 PIN
