SOOCR-26
Radio Replacement for
CHRYSLER, DODGE and JEEP Vehicles
1 of 3

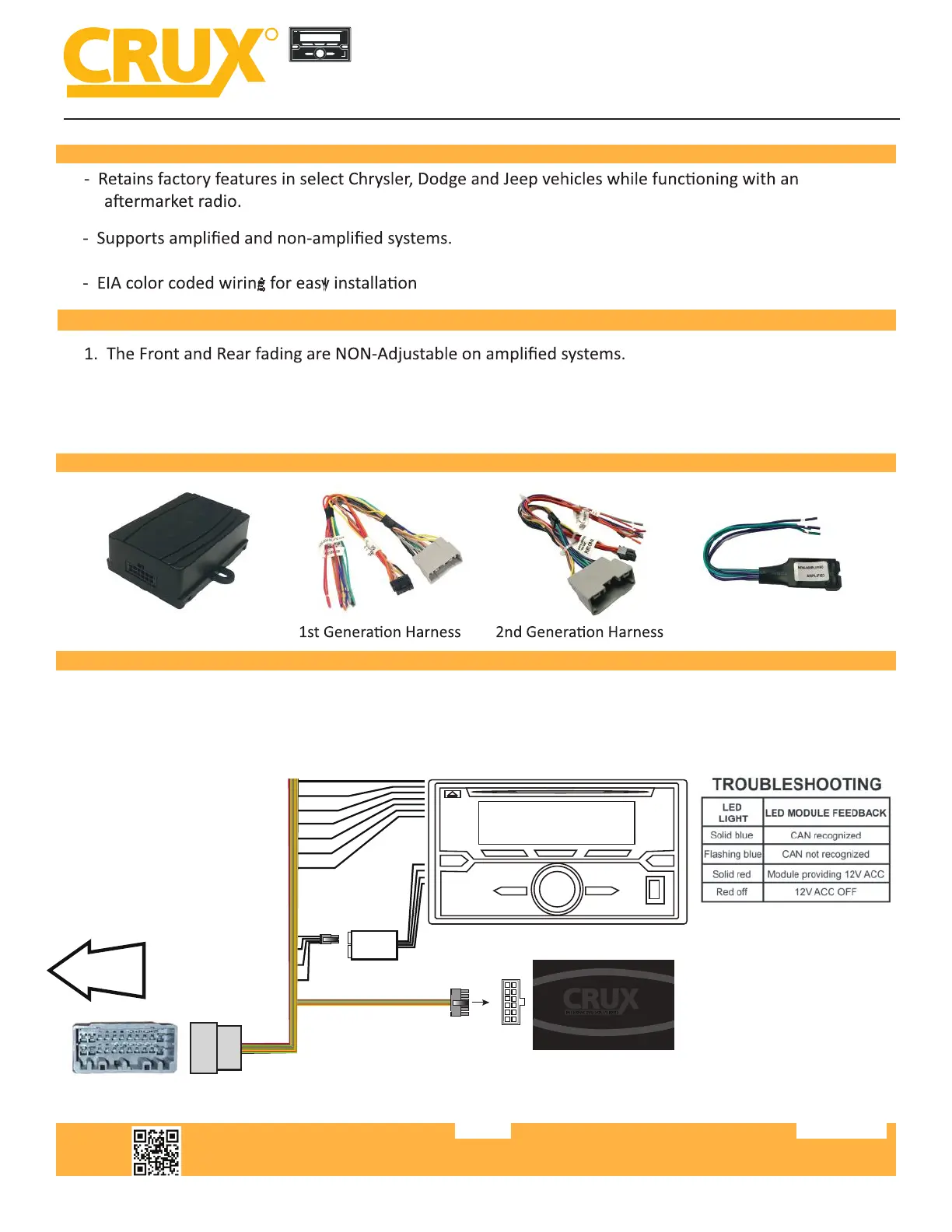

PRODUCT FEATURES:
NOTES:
PARTS INCLUDED:
- Provides reverse trigger for rear view camera.
- Does not Steering Wheel Controls.
2. Also supports radio replacement in vehicles with 4.3” and 8.4” color screens.
SOOCR-26 MODULE Audio Filter
INSTALLATION DIAGRAM:
The SOOCR-26 includes 2 harnesses for older and new model vehicles.
See installaon diagrams below for each harness.
1st Generaon Harness
12-Pin Black
Connector
AMPLIFIED
NON AMPLIFIED
*Does not supply Reverse Trigger on Manual Transmissions. Reverse trigger
wire from the aftermarket radio and/or camera power must be connected to
factory reverse light wire instead.
See page 2 for
speaker wire
connections
VSS (Vehicle Speed Sense) Pink
Illumination (+) Orange
Antenna/Amp Turn on Blue/ White
Reverse Trigger* Purple/White
+12V Constant Yellow
+12V ACC Red
Ground Black
First Generation Harness
Audio
Filter
3. If vehicle is equipped with Steering Wheel Controls use part# SWRCR-59
4. If you require a dash kit with SWC interface use part# DKCR-59K
TO FACTORY
HARNESS
AFTERMARKET
RADIO
RADIO REPLACEMENT
R
INTERFACING SOLUTIONS
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.050223
SOOCR-26
Radio Replacement for
CHRYSLER, DODGE and JEEP Vehicles
2 of 3
VSS (Vehicle Speed Sense) Pink
Illumination (+) Orange
Antenna/Amp Turn on Blue/ White
Reverse Trigger* Puple/White
+12V Constant Yellow
+12V ACC Red
Ground Black
12-Pin Black
Connector

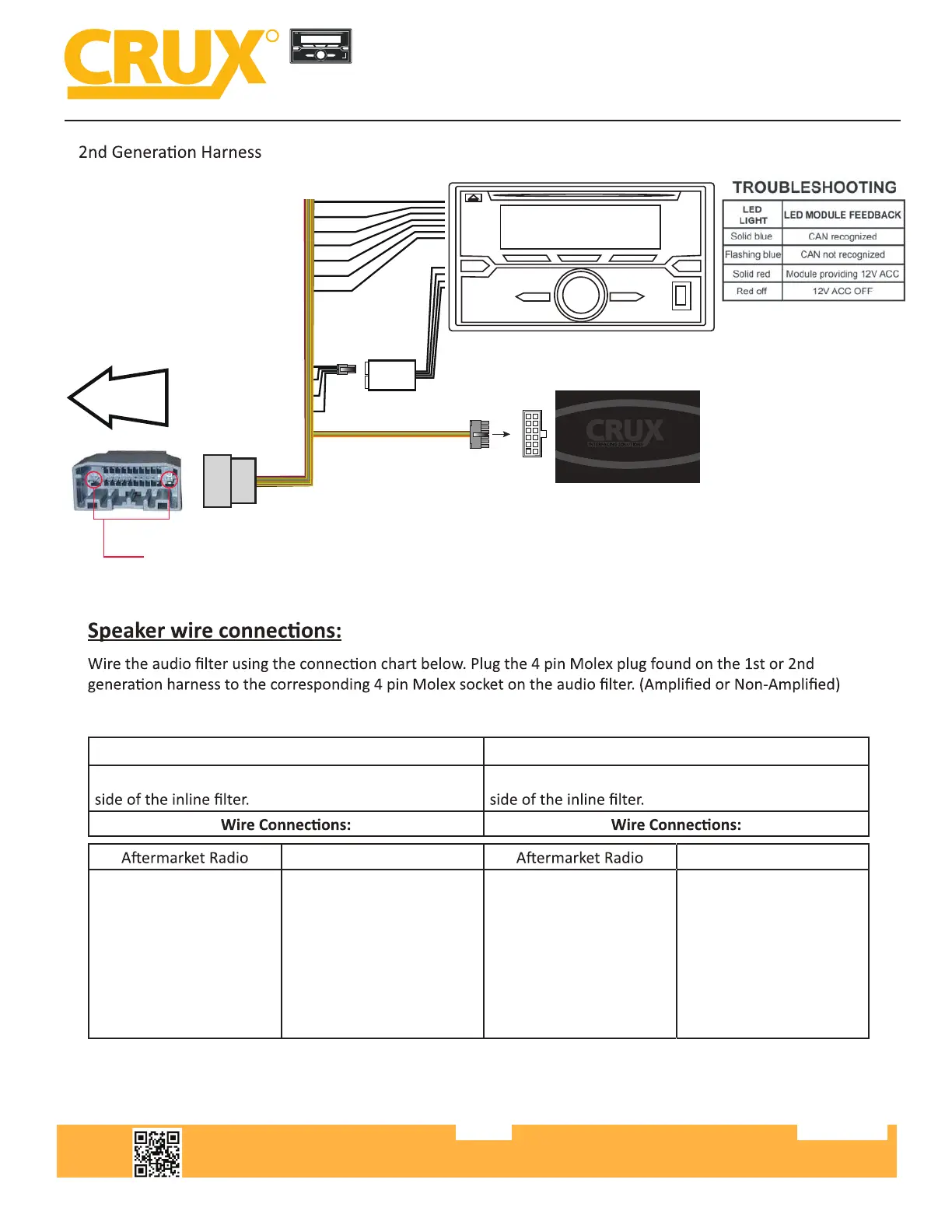

Second Generation Harness
NOTE: Constant & Ground Pins are isolated.
AMPLIFIED
NON AMPLIFIED
*Does not supply Reverse Trigger on Manual Transmissions. Reverse trigger
wire from the aftermarket radio and/or camera power must be connected to
factory reverse light wire instead.
See below for
speaker wire
connections
Audio
Filter
NON AMPLIFIED SYSTEMS AMPLIFIED SYSTEMS
Plug the 4-pin Molex connector to the NON-AMPLIFIED Plug the 4-pin Molex connector to the AMPLIFIED
SOOCR-26 Harness SOOCR-26 Harness
White
White/Black
yarG
kcalB/yarG
Green
Green/Black
Purple
Purple/Black
White
White/Black
Gray
Gray/Black
Green
Green/Black
Purple
Purple/Black
White
kcalB/etihW
yarG
kcalB/yarG
Green
Green/Black
Purple
Purple/Black
Green
Green/Black
Purple
Purple/Black
Not Used
Not Used
Not Used
Not Used
Amplied vehicle troubleshooting: Bluetooth may be inaudible when installing select aftermarket radios.
Therefore hook the rear SWRCR-59 speakers to the aftermarket radio front speakers.
TO FACTORY
HARNESS
AFTERMARKET
RADIO
