OWNER’S MANUAL
Thank you for choosing a JL Audio Evolution™ C2 Component Tweeter
for your automotive sound system.
These Evolution™ Speakers have been designed and manufactured to
exacting standards in order to ensure years of musical enjoyment in your
vehicle. For maximum performance, we highly recommend that you have
your new speakers installed by an authorized JL Audio dealer. Your
authorized dealer has the training, expertise and installation equipment
to ensure optimum performance from this product. Should you
decide to install the speakers yourself, please take the time
to read this manual thoroughly so as to familiarize yourself
with its installation requirements and setup procedures.
If you have any questions regarding the instructions in this
manual or any aspect of your amplifier’s operation, please contact your
authorized JL Audio dealer for assistance. If you need further assistance,
please call the JL Audio Technical Support Department
at (954) 443-1100 during business hours.
0.75-inch (19 mm) Component Tweeters
2 | JL Audio - C5-075ct Owners Manual
3
C2-075ct SPECIFICATIONS
0.75 in. (19 mm) Silk Dome, Ferrofluid Cooling /
Damping, Neodymium Magnet
Continuous Power Handling: 60 Watts
Recommended Amp Power: 15-100 Watts / ch. (RMS)
Efficiency: 91.0 dB @ 1W/1m | 91.5 dB @ 1W/0.5m
Sensitivity: 93.5 dB @ 2.83V/1m
Nominal Impedance: 8 ohm
Frequency Response: 4 kHz - 22 KHz ± 3 dB
Included Components and Parts:
• Two C2-075ct 0.75-inch (12 mm) Tweeters
Two C2-075cthp In-Line, High-Pass Filters on
5.3 ft. (1.6 m) Wire Harnesses
Two Metal Spring Clips (for tweeter flush mounting)
• Two Surface-Mount Tweeter Fixtures
• Four #6 x .85” (22 mm) Sheet Metal Screws
• Two 1/4-inch (6 mm) Machine Screws
GETTING STARTED
•Turnofftheaudiosystem.Itisalso
advisabletodisconnectthenegative
()terminalofyourvehicle’sbattery
wheneverperforminginstallationwork.
•Beforecutting,drillingorinsertinganyscrew,
checkclearancesonbothsidesoftheplanned
mountingsurface.Alsocheckforanypotential
obstacles,suchaswindowtracksandmotors,
wiringharnesses,etc.Checkbothsidesofthe
vehicle,manyvehiclesarenotsymmetrical!
•Alwayswearprotectiveeyewear.
Due to ongoing product development,
all specifications are subject to change without notice.

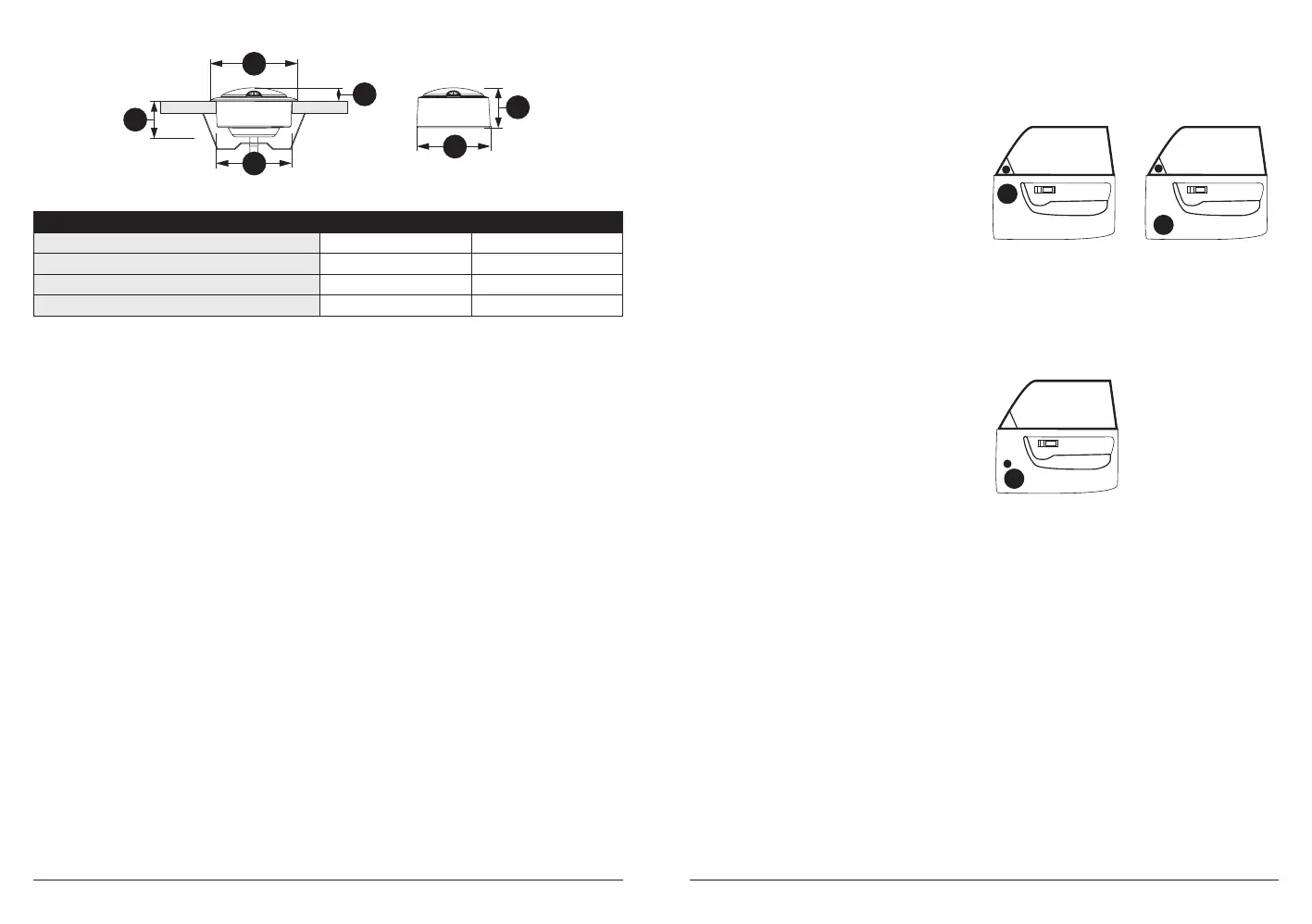

Tweeter Fixture Physical Dimensions Flush-Mount Surface-Mount
Fixture Outer Diameter (A) 1.75 in. / 44.5 mm 1.61 in. / 40.9 mm
Fixture Mounting Hole Diameter (B) 1.50 in. / 38.1 mm N/A
Fixture Mounting Depth (C) 0.56 in. / 14.2 mm N/A
Tweeter Frontal Protrusion (D) 0.36 in. / 9.1 mm 0.87 in. / 22.1 mm
A
D
C
A
D
B
TWEETER PLACEMENT CONSIDERATIONS
Acomponentsystemgivesyoutheability
toplacethewooferandtweeterseparatelyin
yourvehicleinterior.Thiscanbegoodorbad,
dependingonhowit’sdone.
Asageneralrule,thetweetersshouldbe
placedrelativelyclosetothewoofersforbest
tonalbalanceandmostcoherentimaging(the
closer,thebetter).Anyseparationgreaterthan
8inches(20cm)islikelytoresultindegraded
soundquality.
Avoidplacingtweeterswheretheywill
beblockedbyobjectsintheinteriorofthe
car(includingseatedoccupants).When
selectingamountinglocation,lookat
bothsidesofthecartomakesurethat
thislocationisclearonbothsides.
Youcanalwaysexperimentwithtweeter
placementbeforecommittingtoafinal
mountinglocation.Simplyconnecttherestof
thesystemandallowplentyofwirelengthfor
thetweeters.Usingvelcroorsimilarmaterial,
attachthetweetersindifferentlocationsuntil
youfindtheonewheretheyperformbest.
DIAGRAM B:
More Desirable Speaker Placement
DIAGRAM A:
Less Desirable Speaker Placement
