owner’s manual
6-inch (150 mm) Convertible 2-Way Component System
Thank you for choosing a JL Audio Evolution™ C3 Convertible
Component System for your automotive sound system.
These Evolution™ Speakers have been designed and manufactured to
exacting standards in order to ensure years of musical enjoyment in your
vehicle. For maximum performance and extended warranty
coverage, we highly recommend that you have your new speakers installed
by an authorized JL Audio dealer. Your authorized
dealer has the training, expertise and installation equipment to ensure
optimum performance from this product. Should you
decide to install the speakers yourself, please take the time
to read this manual thoroughly so as to familiarize yourself
with its installation requirements and setup procedures.
If you have any questions regarding the instructions in this
manual or any aspect of your amplifier’s operation, please contact your
authorized JL Audio dealer for assistance. If you need further assistance,
please call the JL Audio Technical Support Department
at (954) 443-1100 during business hours.
2 | JL Audio - C3-600 Owner’s Manual
3
A
F
B
G
E
D
C

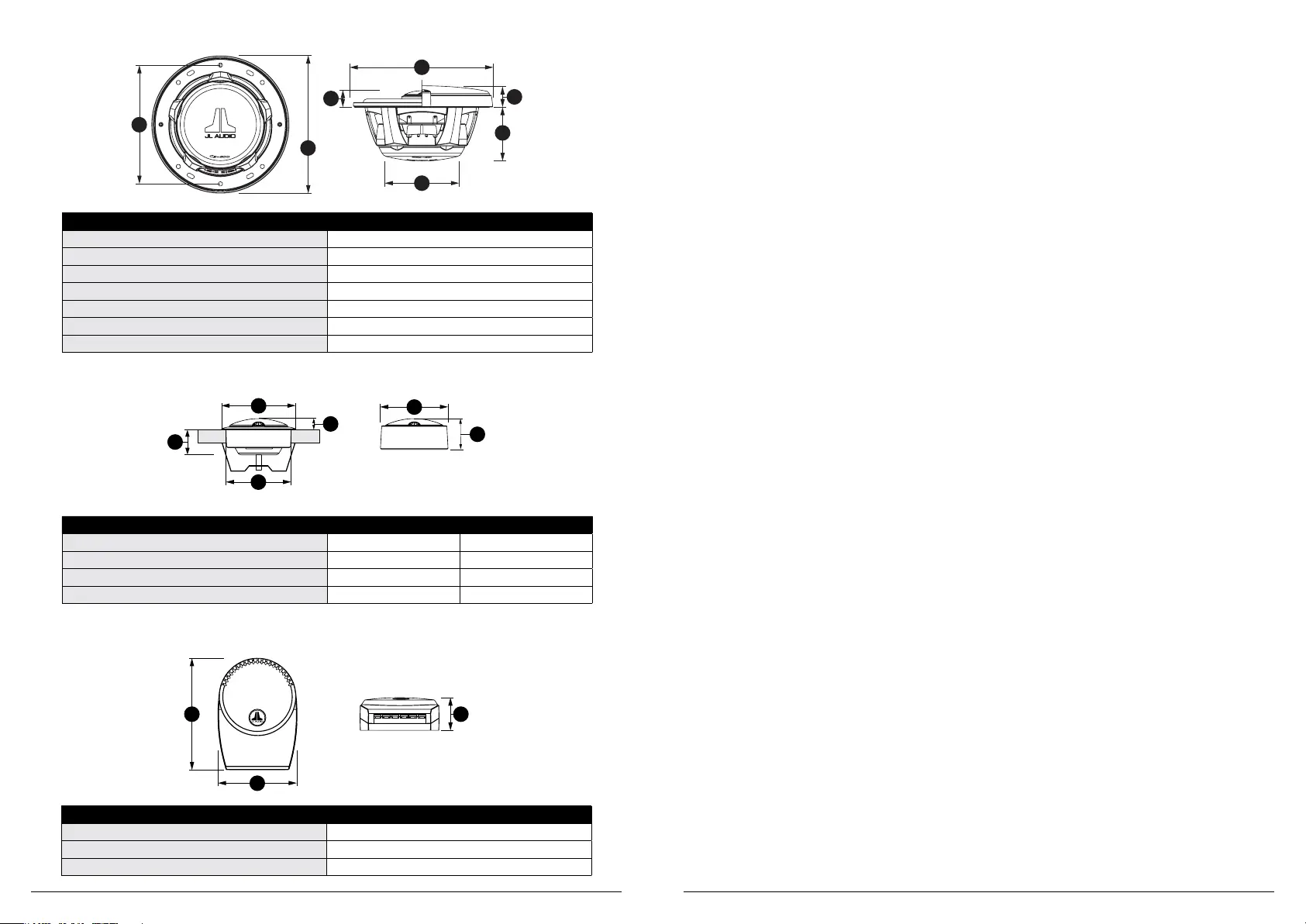

Woofer Physical Dimensions
Frame Outer Diameter (A) 6.21 in. / 157.7 mm
Grille Tray Outer Diameter (B) 6.46 in. / 164.1 mm
Rear Cover Outer Diameter (C) 4.08 in. / 103.6 mm
Frontal Tweeter Protrusion* (D) 0.81 in. / 20.6 mm
Frontal Grille Protrusion (E) 1.03 in. / 26.2 mm
Mounting Hole Diameter (F) 5.00 in. / 127 mm
Mounting Depth (G) 2.49 in. / 63 mm
B
C
A
A
D
D
C
B
A
Crossover Network Physical Dimensions
Height (A) 4.72 in. / 119.9 mm
Width (B) 3.36 in. / 85.3 mm
Depth (C) 1.44 in. / 36.6 mm
C3-600 SPECIFICATIONS
Woofers: Injection-Molded Polymer Frame, Patented Elevated
Frame Cooling (U.S. Patent #6,219,431 & #6,229,902), DMA-
Optimized Motor System, Mineral-Filled Polypropylene Cone,
Rubber Surround, 1.2-in. / 31 mm Voice Coil, Kapton® Former,
Low-Profile, Symmetrical Roll Spider, Ferrite Magnet
Tweeters: 1.00 in. / 25 mm Silk Soft Dome with Ferrofluid
Cooling and Damping and Neodymium Magnet
Fixed Angle Flush-Mount, Surface-Mount and Coaxial-Mount
Systems
Crossover Networks: 2-way networks with 1st order
low-pass and 3rd order high-pass filters, premium Mylar®
capacitors, air-core inductors, 4-position adjustable tweeter
output level, 3-position midrange presence control,
Polyswitch tweeter protection
Continuous Power Handling: 75 Watts (RMS Method)
Frequency Response: 50 Hz - 25 KHz (± 3 dB)
Efficiency @ 1W/1m: 89.5 dB @ 1W/1m
Nominal Impedance: 4 ohms
Included Components and Parts:
• Two C3-600cw 6-inch (150 mm) Woofers
• Two C3-100ct 1.00-inch (25 mm) Tweeters
• Two C3-600-XO Crossover Networks
• Two Surface-Mount Tweeter Fixtures
• Two Coaxial-Mount Tweeter Fixtures
• Two Flush-Mount Tweeter Fixtures
• Two Metal Spring Clips for Tweeter Fixtures
• Two Metal Mesh Woofer Grilles with ABS Grille Trays
• Twelve #8 x 1.25 inch (32 mm) Sheet Metal Screws
• Four #6 x 1.00-inch (25 mm) Sheet Metal Screws
• Two 1.00-inch (25 mm) Machine Screws
• Eight Mounting Clips for Woofer Mounting
• Two 6.4 mm Female Crimpable Connectors
• Two 4.7 mm Male Crimpable Connectors
• Two 4.7 mm Female Crimpable Connectors
• Four 2.8 mm Female Crimpable Connectors
• Two 2.8 mm Male Crimpable Connectors
• Twelve Crimpable Spade Connectors
• One Woofer Mounting Template
Tweeter Fixture Physical Dimensions Flush-Mount Surface-Mount
Fixture Outer Diameter (A) 2.12 in. / 53.8 mm 1.93 in. / 49.0 mm
Fixture Mounting Hole Diameter (B) 1.875 in. / 47.6 mm N/A
Fixture Mounting Depth (C) 0.71 in. / 18.0 mm N/A
Tweeter Frontal Protrusion (D) 0.32 in. / 8.1 mm 0.95 in. / 24.1 mm
Due to ongoing product development, all specifications are subject to change without notice.
