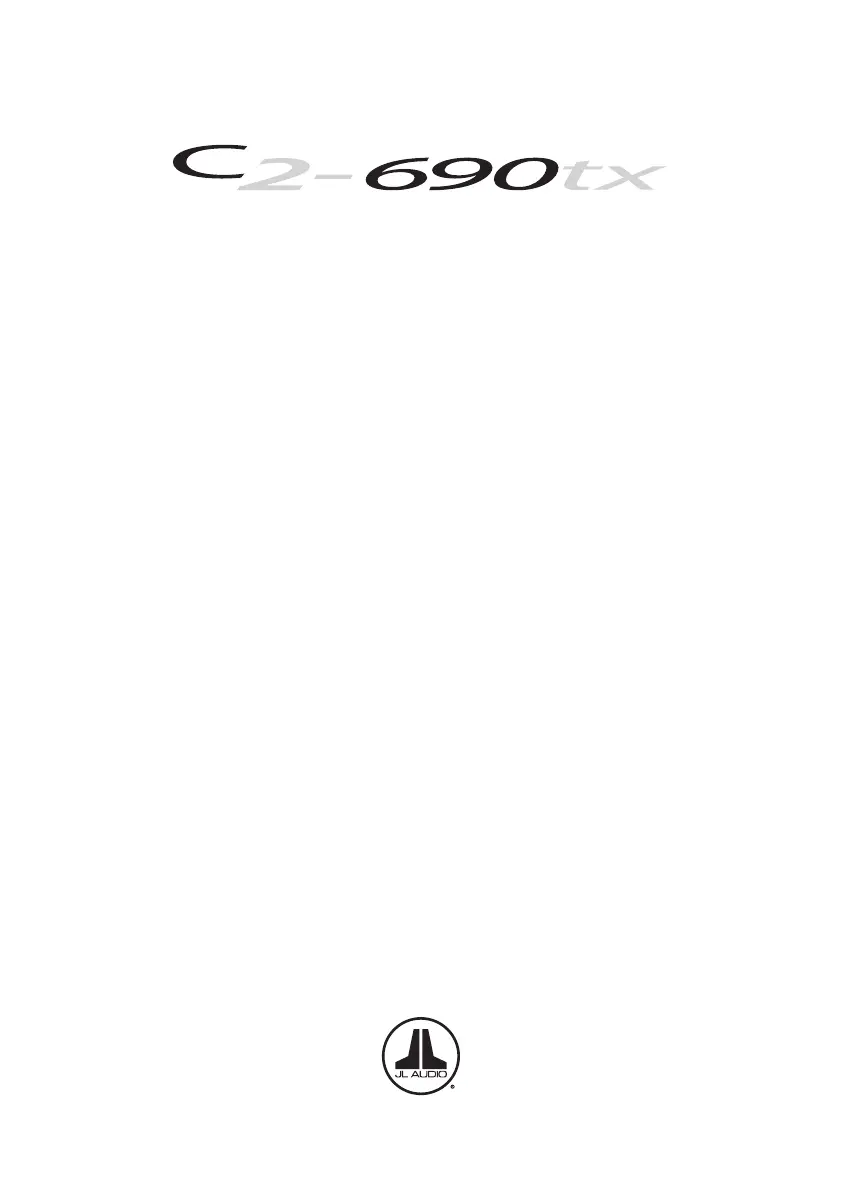

owner’s manual
Thank you for choosing a JL Audio Evolution™ C2 Speaker System
for your automotive sound system.
These Evolution™ Speakers have been designed and manufactured to
exacting standards in order to ensure years of musical enjoyment in your
vehicle. For maximum performance, we highly recommend that you have
your new speakers installed by an authorized JL Audio dealer. Your
authorized dealer has the training, expertise and installation equipment
to ensure optimum performance from this product. Should you
decide to install the speakers yourself, please take the time
to read this manual thoroughly so as to familiarize yourself
with its installation requirements and setup procedures.
If you have any questions regarding the instructions in this
manual or any aspect of your amplifier’s operation, please contact your
authorized JL Audio dealer for assistance. If you need further assistance,
please call the JL Audio Technical Support Department
at (954) 443-1165 during business hours.
6 x 9-inch (150 x 230 mm) 3-Way Speaker System
2 | JL Audio - C2-690tx Owner’s Manual
A B
F
E
D
A
B
C
Due to ongoing product development, all specifications are subject to change without notice.
Woofer Physical Dimensions
Frame Outer Diameter (A) 6.40 x 9.33 in. / 162.6 x 237.0 mm
Grille Tray Outer Diameter (B) 6.75 x 9.63 in. / 171.5 x 244.5 mm
Magnet Outer Diameter (C) 3.94 in. / 100.0 mm w/o cover
Frontal Tweeter Protrusion (D) 0.75 in. / 19.2 mm
Frontal Grille Protrusion (E) 0.98 in. / 24.8 mm
Mounting Depth (F) 3.06 in. / 77.8 mm w/o cover
