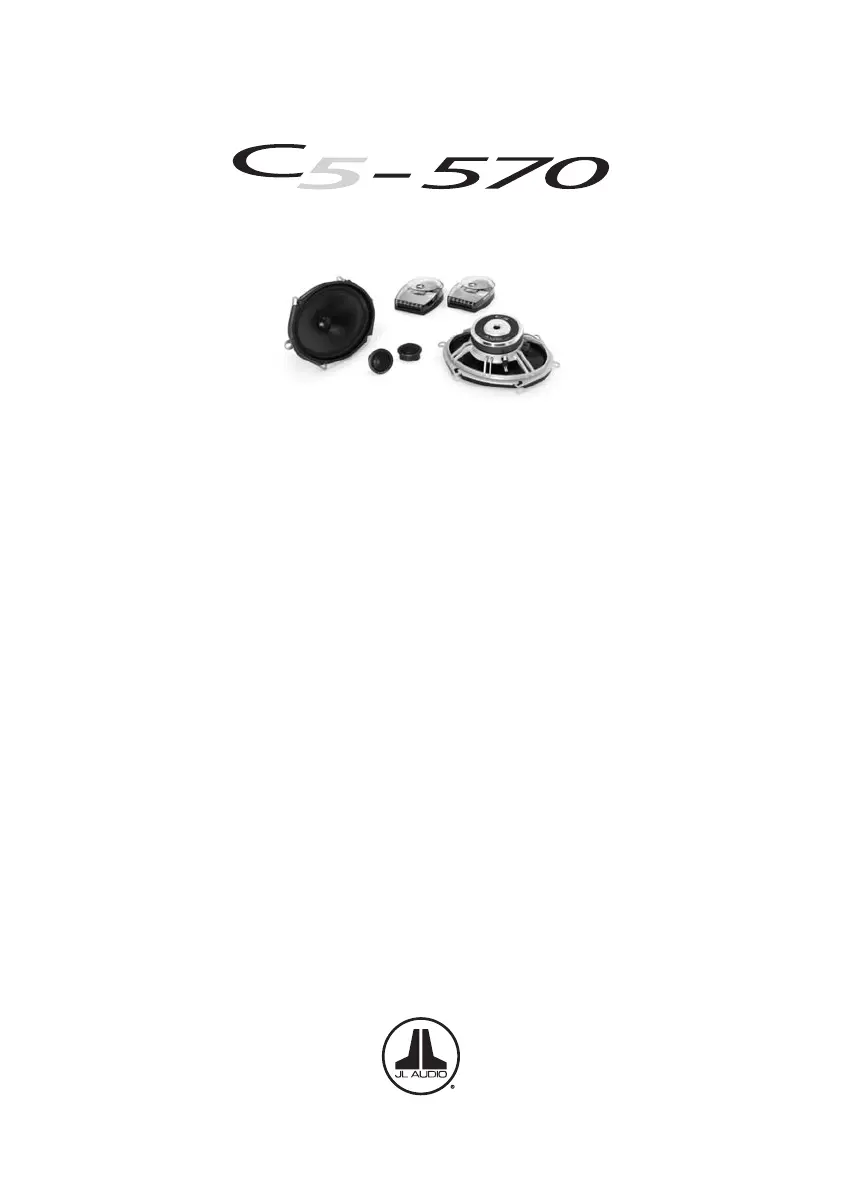

OWNER’S MANUAL
5-inch x 7-inch (125 x 180 mm) 2-Way Component System
Thank you for choosing a JL Audio Evolution™ C5 Component System
for your automotive sound system.
These Evolution™ Speakers have been designed and manufactured to
exacting standards in order to ensure years of musical enjoyment in your
vehicle. For maximum performance and extended warranty
coverage, we highly recommend that you have your new speakers installed
by an authorized JL Audio dealer. Your authorized
dealer has the training, expertise and installation equipment to ensure
optimum performance from this product. Should you
decide to install the speakers yourself, please take the time
to read this manual thoroughly so as to familiarize yourself
with its installation requirements and setup procedures.
If you have any questions regarding the instructions in this
manual or any aspect of your amplifier’s operation, please contact your
authorized JL Audio dealer for assistance. If you need further assistance,
please call the JL Audio Technical Support Department
at (954) 443-1100 during business hours.
2 | JL Audio - C5-570 Owner’s Manual
A
A
D
B
Woofer Physical Dimensions
Frame Outer Diameter (A) 5.47 x 7.68 in. / 139.0 x 195.1 mm
Magnet Outer Diameter (B) 3.54 in. / 90.0 mm
Mounting Hole Diameter (C) N/A
Mounting Depth (D) 2.4 in. / 61 mm
B
C
A
D
C
B
A
Crossover Network Physical Dimensions
Height (A) 4.72 in. / 119.9 mm
Width (B) 3.36 in. / 85.3 mm
Depth (C) 1.44 in. / 36.6 mm
Tweeter Flush-Mount Fixture Physical Dimensions
Fixture Outer Diameter (A) 1.75 in. / 44.5 mm
Fixture Mounting Hole Diameter (B) 1.50 in. / 38.1 mm
Fixture Mounting Depth (C) 0.56 in. / 14.2 mm
Tweeter Frontal Protrusion (D) 0.36 in. / 9.1 mm
