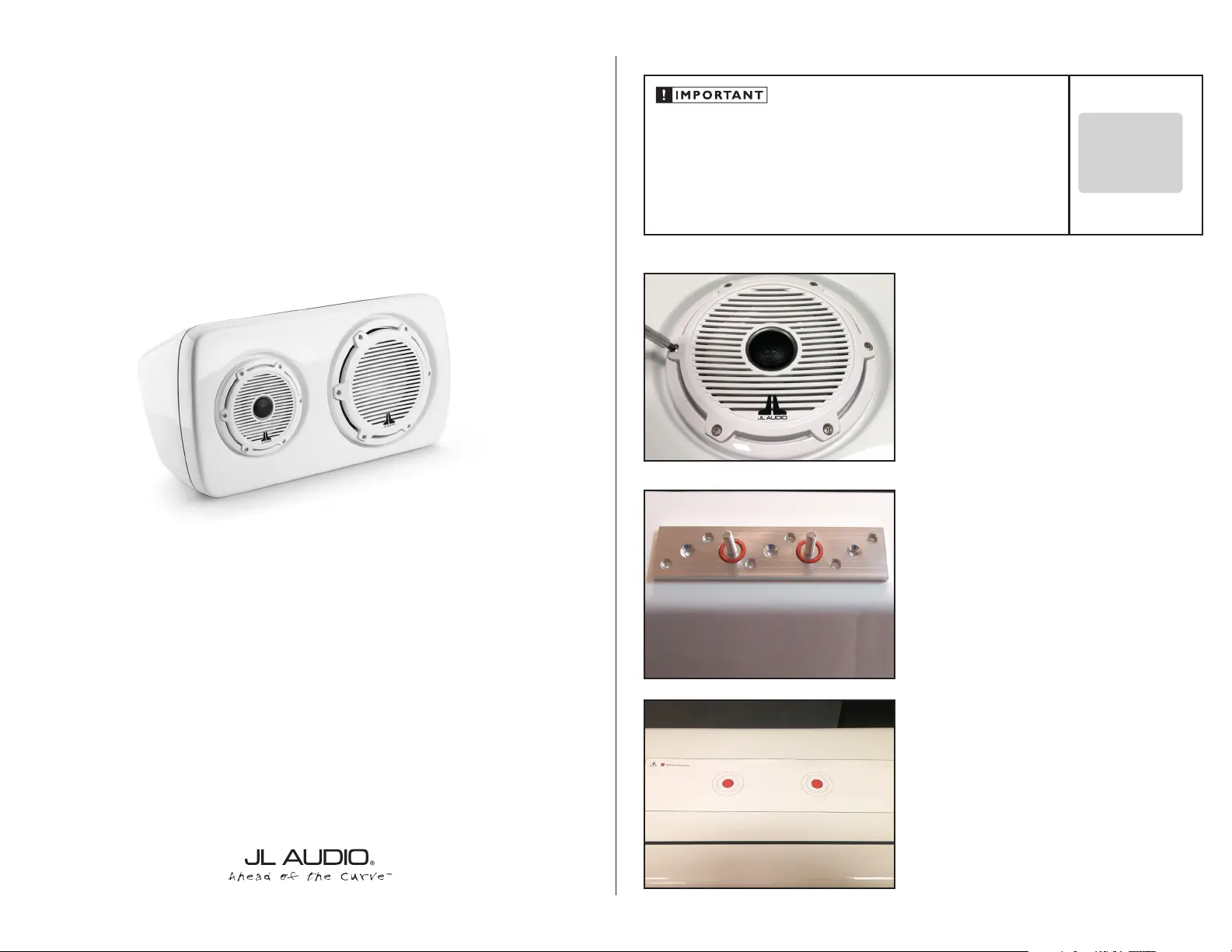

INSTALLATION GUIDE
for the
M6-103EWS-Gw-C-GwGw-R
&
M6-103EWS-Gw-C-GwGw-L
SKU# 90131 & 90132
If you choose to perform the installation yourself, it is absolutely vital that the
enclosure be properly mounted according to these instructions. Failure to
mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or other such accident.
STEP 1
Remove the #8 - 18 x 1-1/4” Phillips Pan Head Screws and
#8 Flat Washers from the speaker, and remove the speaker
from the enclosure.
Remove the #10 - 16 x 1-5/8” Phillips Pan Head Screws and
#10 Flat Washers from the subwoofer, and remove the
subwoofer from the enclosure.
Continued on Next Page
STEP 2
Make sure the Mounting Bracket and enclosure will fit
in the desired installation position. Determine which
side of the enclosure the Mounting Bracket will attach to
based on the installation surface and orientation of the
enclosure.
Be sure that the threaded studs will be accessible from
inside the enclosure in order to secure the mounting
hardware.
STEP 3
Align the Mounting Bracket Template on the enclosure as
needed. Centering lines are available to aid in placement,
if necessary.
Tape the Mounting Bracket Template in place.
M6-103EWS-Gw-C-GwGw INSTR_SKU# 011543
INSTALLATION
DIFFICULTY:
2
5
OUT
OF
ESTIMATED TIME:
1 HOUR
Thank you for choosing a JL Audio Enclosed Full-Range System for your sound system.
These speakers have been designed and manufactured to exacting standards in order to
ensure years of musical enjoyment.
For maximum performance, we strongly recommend that you have your new enclosed
full-range system installed by your authorized JL Audio dealer. Your authorized dealer
has the training, expertise and installation equipment to ensure optimum performance
from this product. Should you decide to install the enclosed full-range system yourself,
please take the time to read this manual thoroughly so as to familiarize yourself with its
installation requirements.
If you have any questions regarding the instructions in this manual, please contact your
authorized JL Audio dealer for assistance.
STEP 7
Using the appropriate drill bit, drill pilot holes through the
marks made in the previous step.
Permanently secure the Mounting Bracket to the
mounting surface with the appropriate hardware (not
included).
STEP 6
Position the Mounting Bracket onto the mounting surface
as needed.
Six flush mount holes and three countersunk holes are
available for a variety of applications.
Mark the center locations of the mounting holes as
needed through the Mounting Bracket, onto the
mounting surface. Remove the Mounting Bracket from the
mounting surface.
STEP 5
Using a 9/16” drill bit, carefully drill through the two marks
made in the previous step.
STEP 4
Mark the center locations of the two threaded studs
(marked in RED) through the Mounting Bracket Template,
onto the enclosure. Remove the template from the
enclosure.
Page 2 • JL Audio, Inc 2019
STEP 9
From inside the enclosure, place a 1/2” Fender Washer,
1/2” Split Lock Washer, and 1/2” Hex Nut over each of
the threaded studs on the Mounting Bracket, and firmly
tighten.
STEP 8
Be sure an orange 3/16” O-Ring is installed into each
recess on the Mounting Bracket.
Place the enclosure onto the Mounting Bracket, allowing
the two threaded studs on the bracket to pass through
the holes drilled into the enclosure in Step 5.
STEP 10
Using an appropriately sized drill bit, drill a hole from the
subwoofer enclosure into the speaker enclosure for the
speaker cable.
STEP 11
Unscrew the grommet, and pass two runs of speaker cable
through it and into the enclosure.
Route one into the speaker enclosure.
M6-103EWS-Gw-C-GwGw INSTR_SKU# 011543
