Power

Notice

1. The device is a power-required device,

meaning it will not work till it is powered.

If your networks should be active all the

time, please consider using UPS (Uninter-

rupted Power Supply) for your device. It

will prevent you from network data loss

or network downtime.

2. In some area, installing a surge suppres-

sion device may also help to protect your

Switch from being damaged by unregu-

lated surge or current to the Switch or

the power adapter.

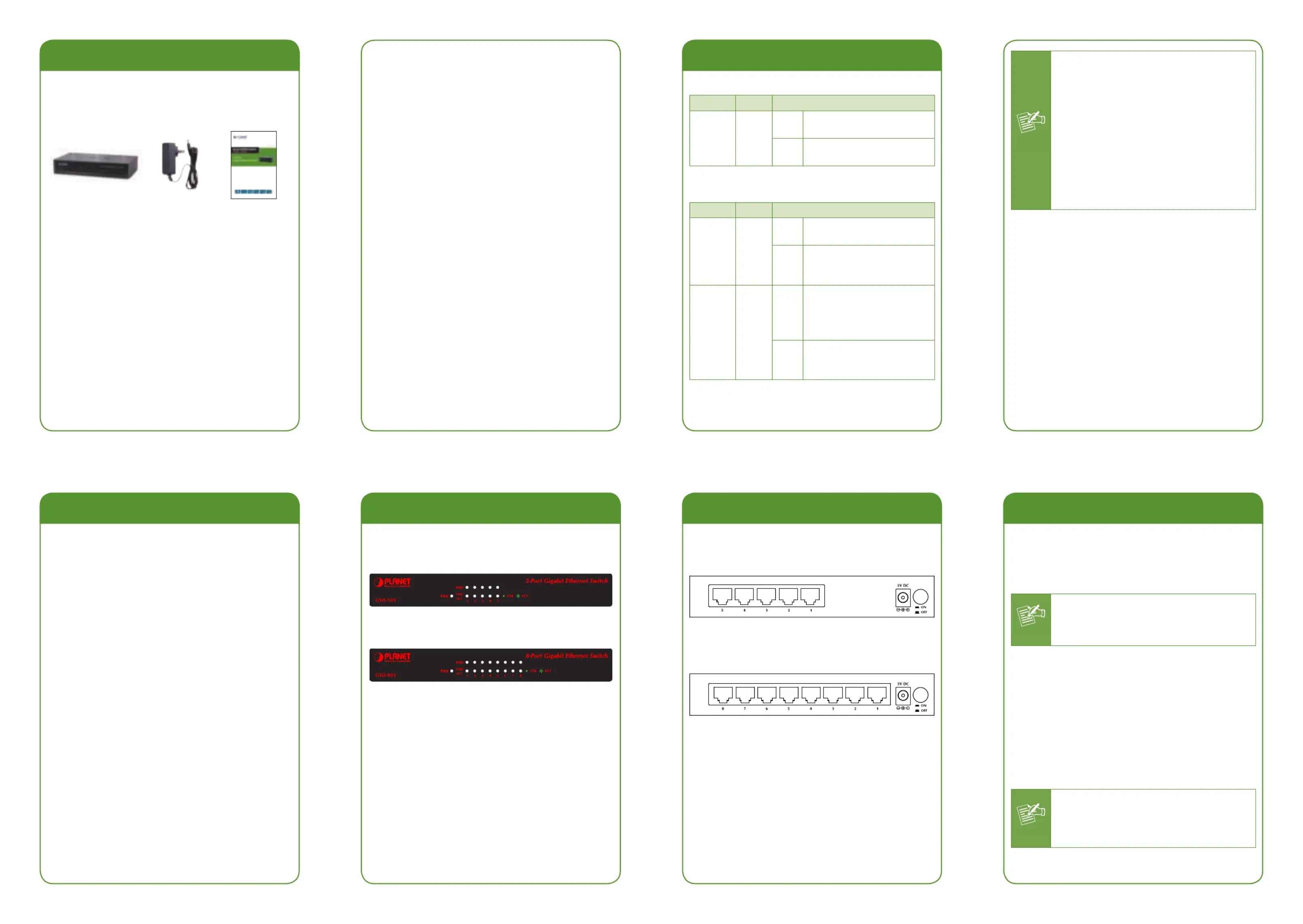

1. Package Contents

Check the contents of your package for the following

parts:

Gigabit Ethernet

Switch x 1

5V DC

1A Power

Adapter x 1

User's

Manual x 1

If any of these are missing or damaged, please contact

your dealer immediately; if possible, retain the carton

including the original packing material, and use them

again to repack the product in case there is a need to

return it to us for repair.

Hardware

 Made from Metal, Desktop Size and Wall-mount

design

 LED indicators for system power, per port 1000 &

Link / Act

 5V DC, 1A external power adapter

 FCC, CE Class B compliant

4. LED Indicators

 System

LED Color Function

PWR Green

Light

Indicates that the Switch is

powered ON

OFF

Indicates that the Switch is

powered OFF

 Per 10/100/1000Mbps port

LED Color Function

1000 Green

Light

Indicates that the port is

operating at 1000Mbps.

OFF

Indicates that the port is

operating at 10Mbps or

100Mbps.

Link/ACT Green

Light

Indicates the link

through that port is

successfully established at

10/100/1000Mbps.

Blink

Indicates the Switch is

actively sending or receiving

data over that port.

2. Product Features

RJ-45 Interface

 5/8 10/100/1000Mbps Gigabit Ethernet ports

 Complies with IEEE 802.3, 10Base-T, IEEE 802.3u

100Base-TX, IEEE 802.3ab 1000Base-T

 Supports Auto MDI/MDI-X function

Switching

 Hardware based 10/100Mbps, Half / Full Duplex and

1000Mbps Full Duplex mode, Flow Control and Auto-

negotiation

 Features Store-and-Forward mode with wire-speed

ltering and forwarding rates

 IEEE 802.3x ow control for Full Duplex operation

and backpressure for Half Duplex operation

 Integrated address look-up engine, supporting 2K /

8K absolute MAC addresses (GSD-503 / GSD-803)

 9K Jumbo packet size

 Power Saving ability for Green networking

 Automatic Address Learning and Address Aging

 Supports CSMA/CD protocol

3. Switch Front Panel

Figures 3-1 and 3-2 show the front panel of GSD-503

and GSD-803, respectively.

Figure 3-1: GSD-503 Front Panel

Figure 3-2: GSD-803 Front Panel

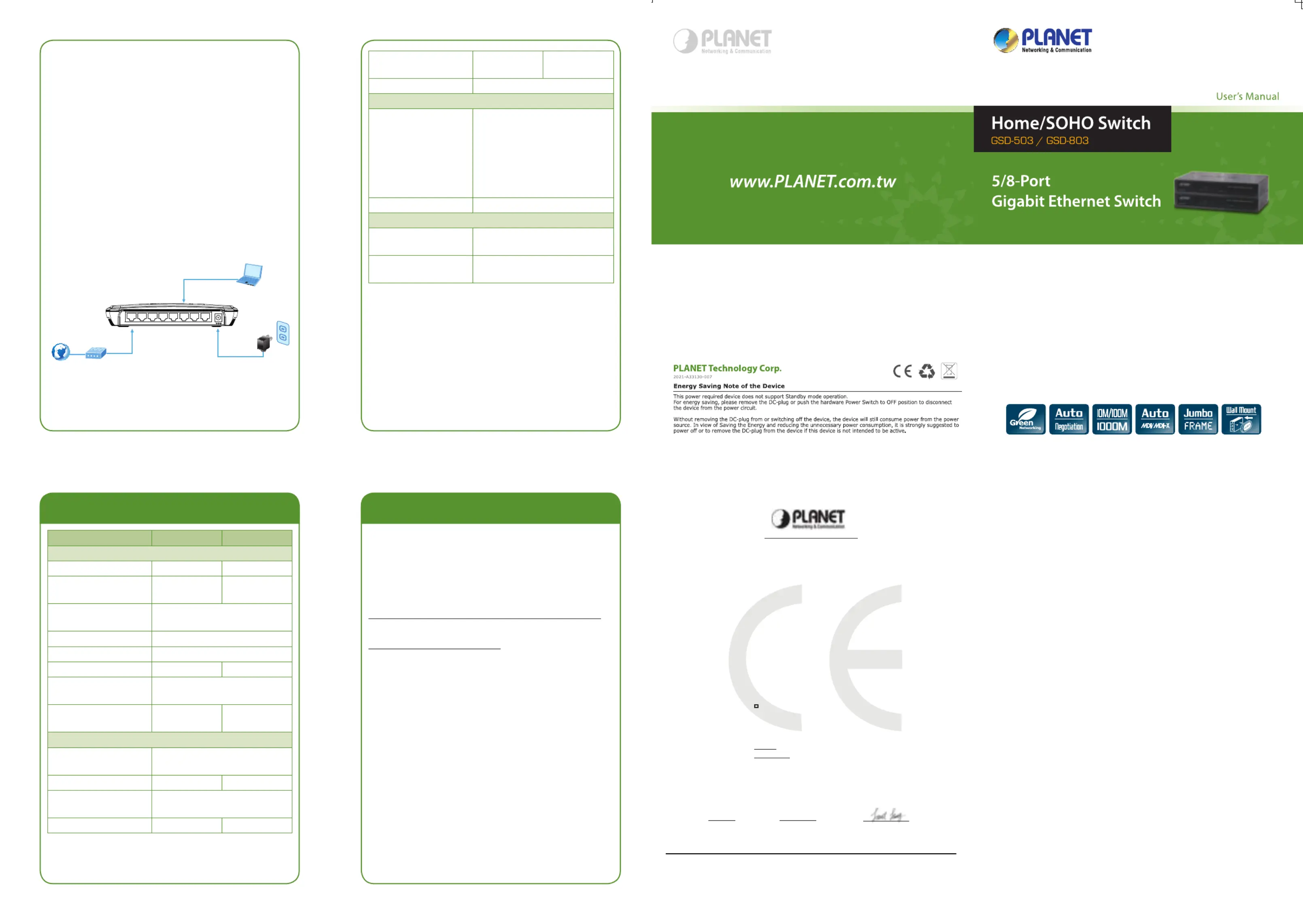

6. Installing the Switch

This part describes how to install your Gigabit Ethernet

Switch and make connections to it. Please read the

following topics and perform the procedures in the order

being presented.

Note

This Switch does not need software

configuration.

 Desktop Installation

To install the Switch on desktop, simply follow the

following steps:

Step 1: Place the Switch on the desk near a power

source.

Step 2: Keep some ventilation space between the

Switch and the surrounding objects.

Note

When choosing a location, please keep in

mind the environmental restrictions dis-

cussed in Chapter 7 under Product Speci-

fications.

5. Switch Rear Panel

Figures 5-1 and 5-2 show the rear panel of GSD-503

and GSD-803, respectively.

Figure 5-1: GSD-503 Rear Panel

Figure 5-2: GSD-803 Rear Panel

Produkspesifikasjoner

Merke:	Planet
Kategori:	Bryter
Modell:	GSD-503
Vekt:	317 g
Bredde:	155 mm
Dybde:	86 mm
Høyde:	26 mm
LED-indikatorer:	Ja
Sertifisering:	FCC, CE
Nettverksstandard:	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Støttede nettverksprotokoller:	CSMA/CD
Redundant strømforsyning:	Nei
Maksimal dataoverføringshastighet:	1 Gbit/s
Auto MDI/MDI-X:	Ja
10G støtte:	Nei
Auto-forhandling:	Ja
Jumbo rammer:	9000
Produktfarge:	Blå
Strømforbruk (vanlig bruk):	3.3 W
Driftstemperatur (T-T):	0 - 50 °C
Oppbevaringstemperaturomåde (Celsius):	-10 - 70 °C
Lagringsrelativ fuktighet:	5 - 95
Kroppsmateriale:	Metall
Kan monteres på vegg:	Ja
Ethernet-kobberkabelteknologi:	10BASE-T, 100BASE-TX, 1000BASE-T
Relativ luftfuktighet under drift (H-H):	5 - 95
Rack-montering:	Nei
Antall Basic switching RJ-45 Ethernet-ports:	5
Basic switching RJ-45 Ethernet ports-type:	Gigabit Ethernet (10/100/1000)
Strømningskontroll støtte:	Ja
Størrelse på adressetabell:	2000 oppføringer
Ruting/svitsjekapasitet:	10 Gbit/s
Strøm over Ethernet (PoE):	Nei
DC inngående spenning:	5 V
Jumbo Frames-støtte:	Ja
Full tosidig:	Ja
Innput-strøm:	1 A
Støttede dataoverføringsrater:	10/100/1000Mbps
Lagre-og-videresend:	Ja
Strømtilkobling:	DC-inngang
Gigabit Ethernet (kobber) antall porter:	5
MAC-adresse automatisk læring støttes:	Ja
MAC-adresse automatisk aldring støttes:	Ja
Antall strømforsyninger:	1
Gjennomstrømming:	7.44 Mpps
