Planet GSD-804 Bruksanvisning

Planet Bryter GSD-804

Les nedenfor 📖 manual på norsk for Planet GSD-804 (2 sider) i kategorien Bryter. Denne guiden var nyttig for 2 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere

Last ned PDF

Side 1/2

- 1 -

- 2 -

- 3 -

- 4 -

- 5 -

- 6 -

- 7 -

- 8 -

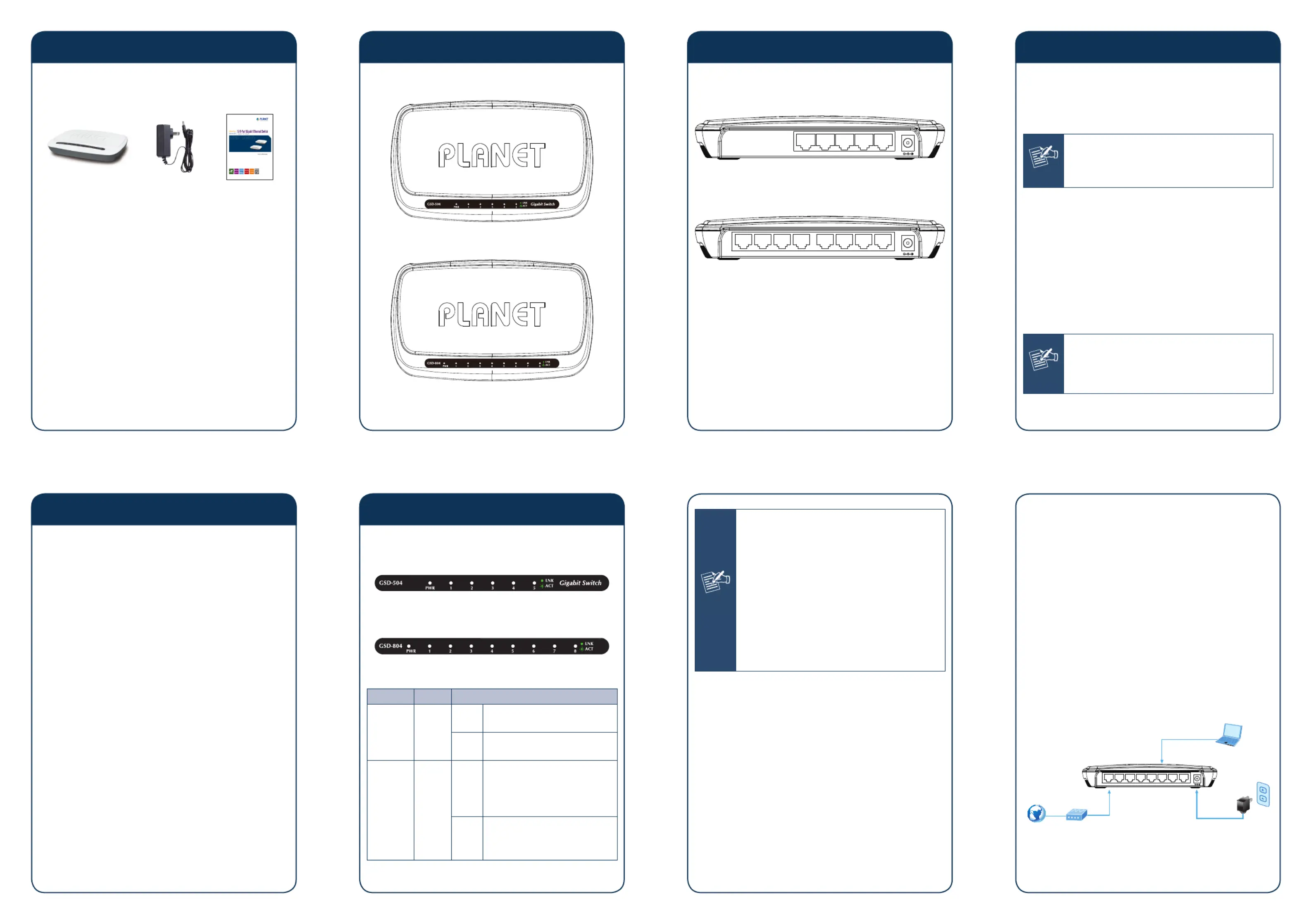

6. Installing the Switch

This part describes how to install your Gigabit Ethernet

Switch and make connections to it. Please read the

following topics and perform the procedures in the order

being presented.

Note

This Switch does not need software configu� not need software configu�

ration.

 Desktop Installation

To install the Switch on desktop, simply follow the next

steps:

Step 1: Place the Switch on desktop near an AC power

source.

Step 2: Keep enough ventilation space between the

Switch and the surrounding objects.

Note

When choosing a location, please keep in

mind the environmental restrictions dis�

cussed in Chapter 7. Product Specifications.

1. Package Contents

Check the contents of your package for following parts:

Gigabit Ethernet

Switch x 1

DC 5V

1A Power

A x 1dapter

User’s

Manual x 1

If any of these are missing or damaged, please contact

your dealer immediately, if possible, retain the carton

including the original packing material, and use them

against to repack the product in case there is a need to

return it to us for repair.

3. Switch Top Panel

Figure �1 & �2 shows a Top panel of 3 3 GSD�504 /

GSD�804.

Figure 3-1: GSD-504 Top panel

Figure 3-2: GSD-804 Top panel

5. Switch Rear Panel

Figure 5�1 & 5�2 shows a rear panel of GSD�504 /

GSD�804.

135 4 2

Figure 5-1: GSD-504 rear panel

1357 468 2

Figure 5-2: GSD-804 rear panel

2. Product Features

 Comply with IEEE 802.3, 10Base�T, IEEE 802.3u

100Base�TX, IEEE 802.3ab 1000Base�T

 Power Saving ability for Green networking

 5/8�Port 10/100/1000Mbps Gigabit Ethernet ports

 Features Store�and�Forward mode with wire�speed

ltering and forwarding rates

 Hardware based 10/100Mbps, Half / Full Duplex and

1000Mbps Full Duplex mode, Flow Control and Auto�

negotiation

 IEEE 802.3x Flow Control for Full Duplex operation

and Back pressure for Half Duplex operation

 Integrated address look�up engine, support 8K

absolute MAC addresses

 Automatic Address Learning and Address Aging

 9K Jumbo packet size

 Supports Auto MDI/MDI�X function

 Support CSMA/CD protocol

 FCC, CE class B compliant

4. LED Indicators

Figure 4�1 & 4�2 shows a LED panel of GSD�504 /

GSD�804.

Figure 4-1: GSD-504 LED panel

Figure 4-2: GSD-804 LED panel

LED Color Function

PWR Green

Light

Indicate that the Switch is

Powered ON.

OFF

Indicate that the Switch is

Powered OFF.

Link/ACT Green

Light

Indicates the link

through that port is

successfully established at

10/100/1000Mbps.

Blink

Indicates the Switch is

actively sending or receiving

data over that port.

Step 3: Connect your Switch to network devices.

A. Connect one end of a standard network

cable to the 10/100/1000 RJ�45 ports on

the rear panel of the Switch.

B. Connect the other end of the cable to the

network devices such as printer servers,

workstations or routers…etc.

Step 4: Supply power to the witchS .

A. Connect one end of the power cable to the

Switch.

B. Connect the 5V DC power adapter to a

standard wall outlet.

When the Switch receives power, the Power LED should

remain solid Green.

PC/Laptop

xDSL/Cable Router

Internet

Power Adapter

RJ-45

Power

001101010

1357 468 2

Power

Notice

1. The device is a power�required device, it

means, it will not work till it is powered.

If your networks should active all the

time, please consider using UPS (Uninter�

rupted Power Supply) for your device. It

will prevent you from network data loss

or network downtime.

2. In some area, installing a surge suppres�

sion device may also help to protect your

Switch from being damaged by unregu�

lated surge or current to the Switch or

the power adapter.

- 9 -

- 10 -

- 11 -

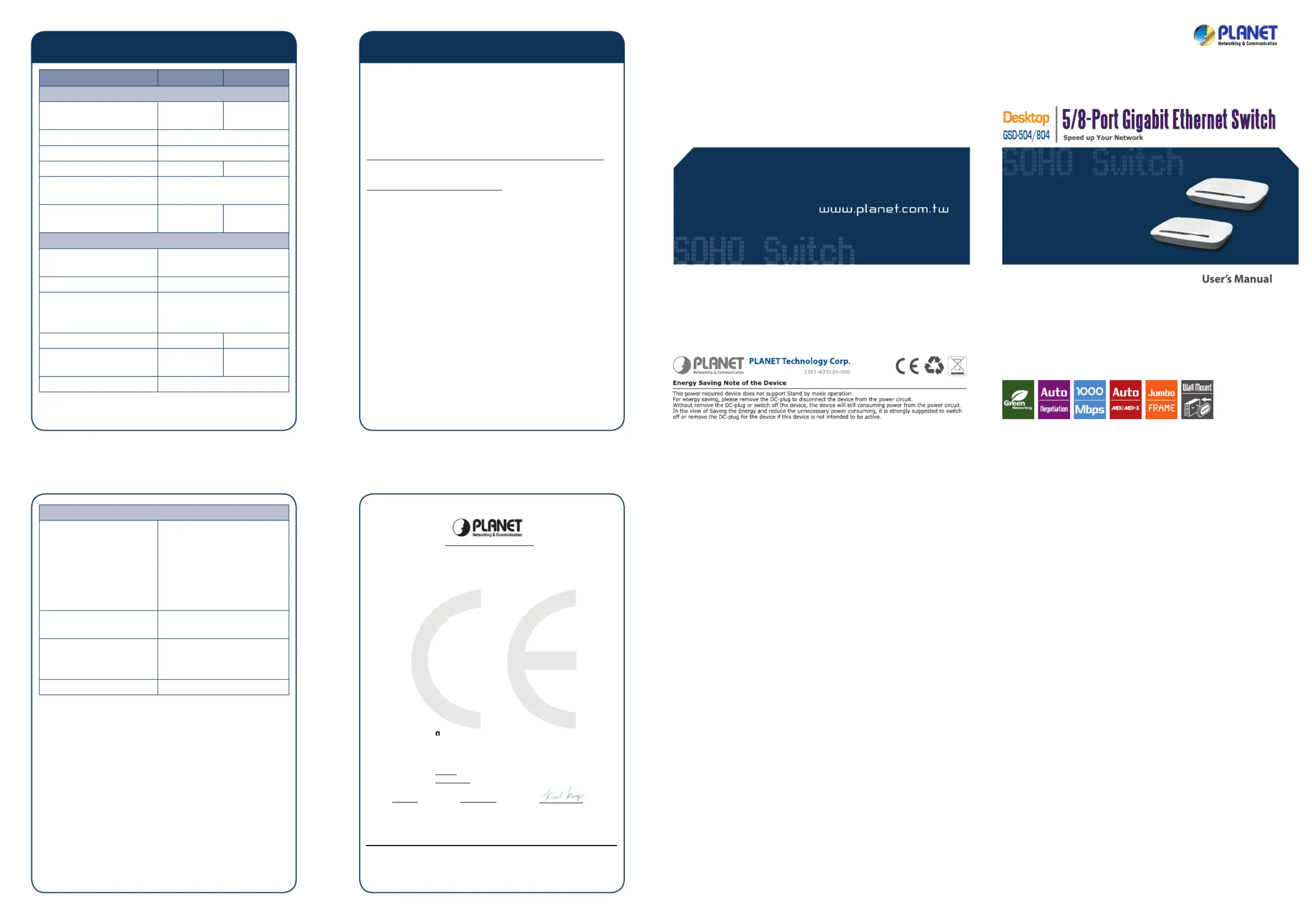

7. Product Specications

Product GSD-504 GSD-804

Hardware Specication

10/100/1000Base�T

Ports

5 Auto MDI/

MDIX ports

8 Auto MDI/

MDIX ports

Enclosure Plastic

Dimensions (mm) 168 x 100 x 29

Weight (g) 150 180

Power Requirement

(External power adapter)

DC 5V, 1A

Power Consumption

(100M Full operating)

3.1 Watts /

10 BTU

4.3 Watts /

14 BTU

Switch Specication

Switch Processing

Scheme

Store�and�Forward

Address Table 8K entries

Flow Control

Back pressure Half Duplex,

IEEE 802.3x Pause Frame

Full Duplex

Switch fabric 10Gbps 16Gbps

Throughput

(packet per second)

7.44Mpps 11.9Mpps

Jumbo packet size 9K

8. Cu tomer Supports

Thank you for purchase PLANET products. You can

browse our online FAQ resource at the PLANET Website

rst to check if it could solve you issue. If you need

more support information, please contact PLANET switch

support team.

PLANET online FAQ :

http://www.planet.com.tw/en/support/faq.php?type=1

Switch support team mail address :

support_switch@planet.com.tw

Contents subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp. All other

trademarks belong to their respective owners.

Standards Conformance

Standards Compliance

IEEE 802.3 (Ethernet)

IEEE 802.3u

(Fast Ethernet)

IEEE 802.3ab

(Gigabit Ethernet)

IEEE 802.3x

(Full�duplex Flow Control)

Temperature

Operating: 0~50 Degree C

Storage: �20~70 Degree C

Humidity Operating

Operating: 5% to 90%,

Storage: 5% to 90%

(Non�condensing)

Regulation Compliance FCC Part 15 Class B, CE

EC Declaration of Conformity

For the following equipment:

*Type of Product: 5 / 8 -Port 10/100/1000Mbps Gigabit Ethernet Switch , Plastic

*Model Number: GSD-504, GSD-804

* Produced by:

Manufacturer‘s Name : Planet Technology Corp.

Manufacturer‘s Address: 10F., No.96, Minquan Rd., Xindian Dist.,

New Taipei City 231, Taiwan (R.O.C.).

is herewith confirmed to comply with the requirements set out in the Council Directive on the

Approximation of the Laws of the Member States relating to Electromagnetic Compatibility

Directive on (2004/108/EC).

For the evaluation regarding the EMC, the following standards were applied:

EN 55022 (CLASS B: 2006 + A1:2007)

EN 61000-3-2 (2006 + A2: 2009)

EN 61000-3-3 (2008)

EN 55024 (1998 + A1: 2001 + A2:2003)

IEC 61000-4-2 (2008)

IEC 61000-4-3 (2006 + A1: 2007 + A2:2010)

IEC 61000-4-4 (2004 + A1: 2010)

IEC 61000-4-5 (2005)

IEC 61000-4-6 (2008)

IEC 61000-4-8 (2009)

IEC 61000-4-11 (2004)

Responsible for marking this declaration if the:

Manufacturer  Authorized representative established within the EU

Authorized representative established within the EU (if applicable):

Company Name: Planet Technology Corp.

Company Address: 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan

(R.O.C.)

Person responsible for making this declaration

Name, Surname Kent Kang

Position / Title : Product Manager

Taiwan

12, March, 2012

Place Date Legal Signature

PLANET TECHNOLOGY CORPORATION

e-mail: sales@planet.com.tw http://www.planet.com.tw

10F., No.96, Minquan Rd., Xindian Dist., New Taipei City, Taiwan, R.O.C. Tel:886-2-2219-9518 Fax:886-2-2219-9528

Produkspesifikasjoner

Merke:	Planet
Kategori:	Bryter
Modell:	GSD-804
Vekt:	175 g
Bredde:	168 mm
Dybde:	100 mm
Høyde:	29 mm
LED-indikatorer:	Ja
Sertifisering:	FCC , CE
Nettverksstandard:	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Utgangsstrøm:	5 V
Auto MDI/MDI-X:	Ja
10G støtte:	Nei
Varmespredning:	13 BTU/t
Auto-forhandling:	Ja
Jumbo rammer:	9000
Produktfarge:	Grey, White
Strømforbruk (vanlig bruk):	3.4 W
Driftstemperatur (T-T):	0 - 50 °C
Oppbevaringstemperaturomåde (Celsius):	-10 - 70 °C
Lagringsrelativ fuktighet:	5 - 95
Harmonisert system (HS)-kode:	85176990
Kroppsmateriale:	Plast
Kan monteres på vegg:	Ja
Ethernet-kobberkabelteknologi:	10BASE-T, 100BASE-TX, 1000BASE-T
Relativ luftfuktighet under drift (H-H):	5 - 95
Rack-montering:	Nei
AC-adapter bunt:	Ja
Antall Basic switching RJ-45 Ethernet-ports:	8
Basic switching RJ-45 Ethernet ports-type:	Gigabit Ethernet (10/100/1000)
Strømningskontroll støtte:	Ja
Størrelse på adressetabell:	4000 oppføringer
Ruting/svitsjekapasitet:	16 Gbit/s
Kan stables:	Nei
Strømforsyning medfølger:	Nei
Strøm over Ethernet (PoE):	Nei
Plugg inn og spill:	Ja
DC inngående spenning:	5 V
Jumbo Frames-støtte:	Ja
Full tosidig:	Ja
Innput-strøm:	1 A
Kabeltyper som støttes:	Cat5, Cat5e, Cat6
Lagre-og-videresend:	Ja
Gigabit Ethernet (kobber) antall porter:	8
MAC-adresse automatisk læring støttes:	Ja
MAC-adresse automatisk aldring støttes:	Ja
Halvdupleks:	Ja
Gjennomstrømming:	11.9 Mpps
