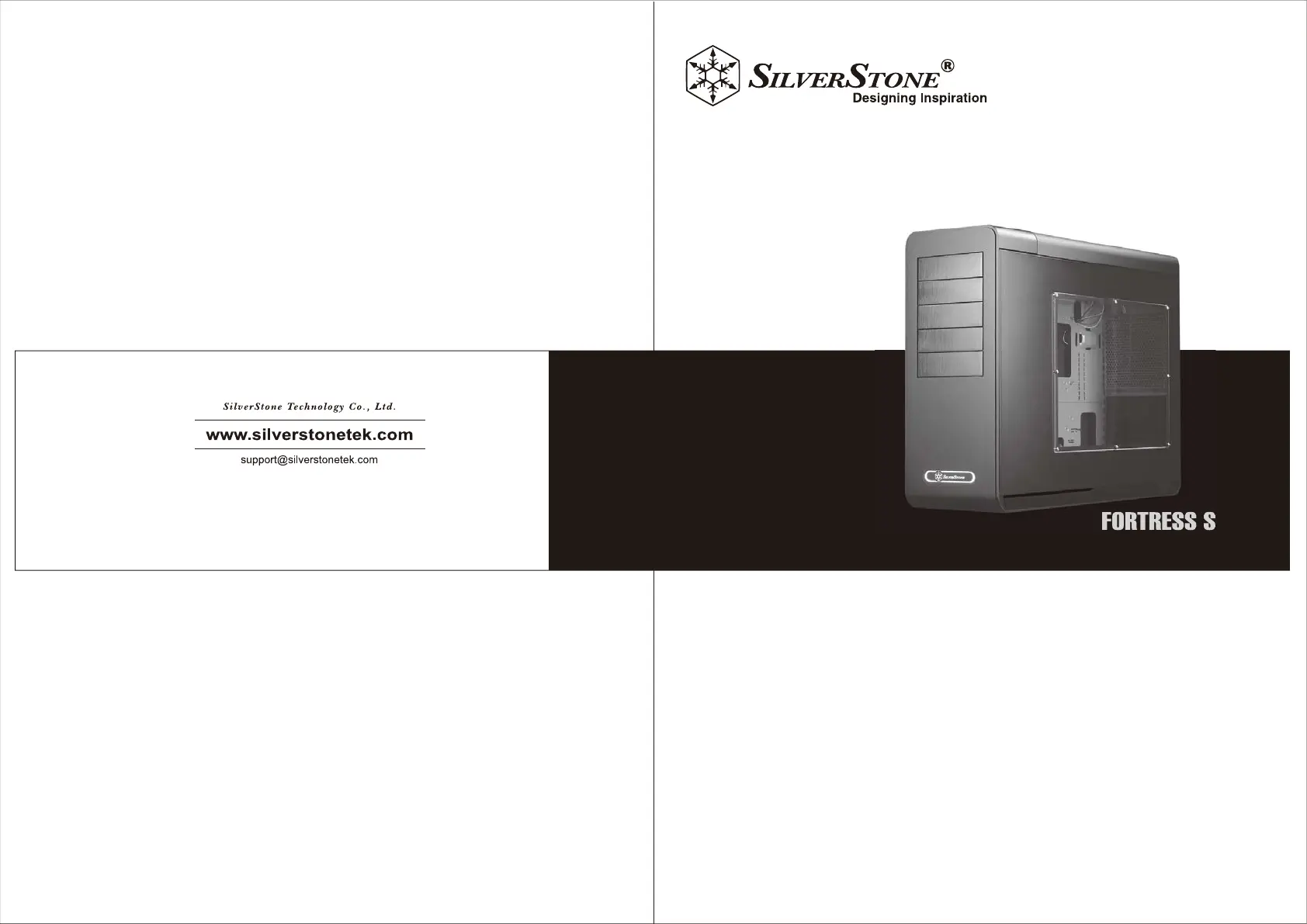

Side 1/35

March, 2011

Issue date:

NO:G11200831

MANUAL

FORTRESS SERIES

FT02

Installation and system optimization guide:

The following manual and guides were carefully prepared by the SilverStone engineering team to help

you maximize the potential of your SilverStone product. Please keep this manual for future reference

when upgrading or performing maintenance on your system. A copy of this manual can also be

downloaded from our website at:

http://www.silverstonetek.com

Disassemble chart

Connector definition

Front I/O connector guide

Component size limitations

Recommended cooling device setup & selection

Upgrade and Maintenance

Installation guide

Specification

P. 2

P. 3

P. 4

P. 14

P. 15

P. 20

P. 25

P. 28

FORTRESS SERIES FT02

Advancing computer chassis construction and

thermodynamics

Material

Motherboard

Model

Drive Bay

Cooling System

Expansion Slot

Front I/O Port

Power Supply

Expansion Card

Dimension

4.5mm aluminum unibody frame, 0.8mm steel body

SSI CEB, ATX (maximum 12” x 11”), Micro ATX

SST-FT02B (black)

SST-ST02S (silver)

SST-FT02B-W (black + window)

SST-FT02S-W (silver + window)

Exposed

Internal

Bottom

Top

USB 3.0 x 2, Audio x 1, MIC x 1

1 x optional standard PS2 (ATX)

Support 12.2”

212mm (W) x 497mm (H) x 616mm (D)

5.25" x 5

3.5" x 5 , 2.5” x1

3 x 180mm intake fan 700/1200rpm, 18/34dBA

1 x 120mm exhaust, 1200rpm, 19dBA

Produkspesifikasjoner

Merke:	SilverStone
Kategori:	Computerbehuizing
Modell:	Fortress FT02
Vekt:	15000 g
Bredde:	212 mm
Dybde:	616 mm
Høyde:	497 mm
Antall USB 2.0-porter:	2
Lydutgang:	Ja
Materiale:	Aluminium
Utvidelsesspor:	7
Produktfarge:	Sort
Type strømforsyning:	Standard PS2 (ATX)
Formfaktor:	Midi Tower
Modell/Type:	PC
Av/på-bryter:	Ja
Støttet systemdisk formfaktorer:	ATX
Ventilasjonsvifte:	1 x 120mm, 3 x 180mm
Interne driverporter:	5 x 3.5", 1 x 2.5"
Lydkontakter:	Ja
Eksterne driverporter:	5 x 5.25"
