Side 1/49

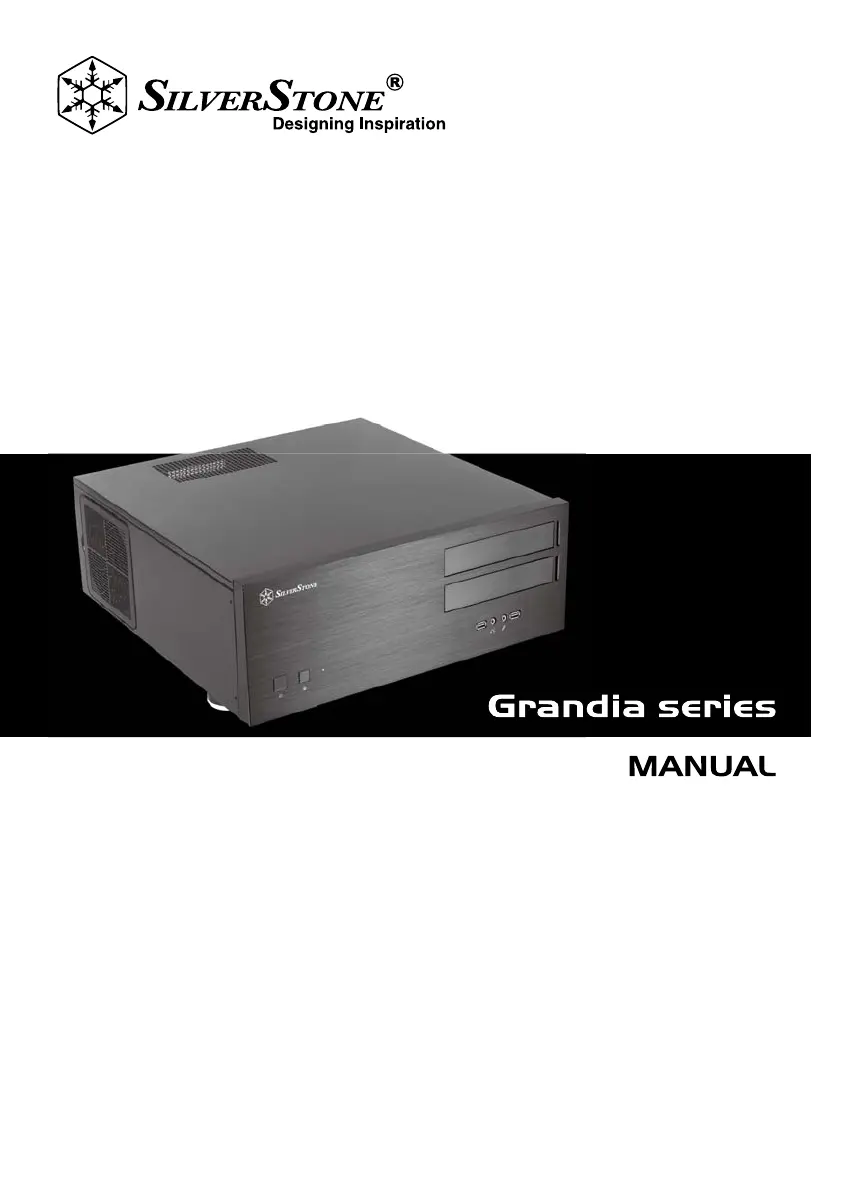

GD08

Installation and system optimization guide:

The following manual and guides were carefully prepared by the SilverStone engineering team to help

you maximize the potential of your SilverStone product. Please keep this manual for future reference

when upgrading or performing maintenance on your system. A copy of this manual can also be

downloaded from our website at:

http://www.silverstonetek.com

Disassemble chart

Connector definition

Front I/O connector guide

Component size limitations

Recommended cooling device setup & selection

Installation guide

Specification

P. 2

P. 3

P. 4

P.17

P.19

P.20

P.33

Protect your computer

P.43

Q&A

P.44

Amazing home theater server case with

incredible storage and cooling capacity

Material

Model

Motherboard

Drive Bay

Cooling System

Expansion Slot

Front I/O Port

Power Supply

Expansion Card

Limitation of CPU cooler

Dimension

*1: Motherboard size will affect the size and amount of fans that can be fitted in the bottom panel.

Please refer to manual for details.

*2: With optical drive installed, the deepest PSU recommended is 180mm.

Aluminum front panel, steel body

SST-GD08B (black)

SSI EEB, SSI CEB, Extended ATX, ATX, Micro ATX *1

Exposed

Internal

Side

Rear

Top

Bottom

7 + 1

USB 3.0 x 2, audio x 1, MIC x 1

Support standard PS2 (ATX) up to 220mm, recommend

depth is under 180mm *2

Support graphic cards up to 13.6 inches

138mm

440mm(W) x 175mm(H) x 425mm(D)

5.25" x 2 (support optical drive only)

3.5" x 8, 2.5” x 2

1 x 120mm intake fans, 900rpm, 18dBA

1 x 120mm fan slot

2 x 80mm fan slot

oversized vents

3 x 120mm intake fans, 900rpm, 18dBA

(backwards compatible with 1 x 120mm fan

+ 3 x 80mm fans, or 6 x 60mm fans)

Produkspesifikasjoner

Merke:	SilverStone
Kategori:	Computerbehuizing
Modell:	Grandia GD08
Vekt:	7000 g
Bredde:	440 mm
Dybde:	425 mm
Høyde:	175 mm
Innebygde høyttalere:	Nei
Lydutgang:	Ja
Materiale:	Aluminium, Steel
Støttede HDD-størrelser:	2.5, 3.5 "
Antall utvidelsesspor:	8
Innebygd HDD-dokkingstasjon:	Nei
Produktfarge:	Sort
Innebygd kortleser:	Nei
Harmonisert system (HS)-kode:	84733080
Formfaktor:	HTPC
tilbakestillingsknapp:	Ja
Modell/Type:	PC
Belysning:	Nei
Av/på-bryter:	Ja
Støttet systemdisk formfaktorer:	ATX, EATX, Micro ATX, SSI CEB, SSI EEB
Antall USB 3.2 Gen 1 (3.1 Gen 1)Type-A-porter:	2
Lydkontakter:	Ja
Strømforsyning medfølger:	Nei
Antall 3.5" bays:	8
Antall 2.5" bays:	2
Siderute:	Nei
Maksimal høyde CPU-kjøler:	138 mm
Maksimal lengde PSU:	110 mm
Antall bakvifter som støttes (maks.):	2
Bakre viftediametere som støttes:	80 mm
Antall 5.25" bays:	2
Antall interne 3,5" brønner:	8
Installerte bunnvifter:	2x 120 mm
Antall sidevifter som støttes (maks.):	2
Sideviftediametere som støttes:	120 mm
Transporteringshjul:	Nei
Antall bunnvifter som støttes (maks.):	2
Kapasitet for flytende nedkjøling:	Nei
Bakplan-støtte:	Nei
Installerte sidevifter:	1x 120 mm
