ezIP IP ONE-WAY 8” CEILING SPEAKER
EZ-SPC8
INTRODUCTION
The EZ-SPC8 ezIP One-Way 8” Ceiling Speaker
enables voice access to a single zone of one-way
paging over an IP-based network. The enclosure is
made of steel with a durable white powder coated
finish. Power is provided to the EZ-SPC8 via a
Power over Ethernet (PoE) switch meeting the
802.3af specification.
SPECIFICATIONS
Access Methods
• SIP – enabled telephone system
• Valcom ezIP Page Controller
• Valcom ezIP Interactive Console
• Valcom ezIP Multicast Page Group
Features
• RJ-45 network connection
• Power over Ethernet (POE) 802.3af compatible
• High Efficiency Class-D Amplifier
• Upgradable to full Valcom IP capability,
including full-duplex talkback communication
DIMENSIONS/WEIGHT
• 13.0” Dia x 3.8” D
(33.0cm Dia. x 9.7cm D)
• Weight: 2.5 lbs (1.13 kg)
Environment
Temperature: 0 to +40° C
Humidity: 0 to 85% non-precipitating
Precautionary Designations
INSTALLATION
FCC Information
This equipment has been tested and found to
comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference when
the equipment is operated in a commercial
environment. This equipment generates, uses
and can radiate radio frequency energy and if
not installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area
may cause harmful interference in which case
the user will be required to correct the
interference at his own expense.
2 9471008
MOUNTING
Cut an 8.50” diameter hole in ceiling tile. After
connections have been made to the speaker, attach
speaker to ceiling tile using the mounting hardware
provided. (A metal backbox with rails is available
separately as model V-9916M).
Network Connection
The EZ-SPC8 has one RJ-45 network connector on
the rear panel. Use a standard patch cable to
connect the EZ-SPC8 to an Ethernet switch
providing Power over Ethernet (PoE) meeting the
802.3af specification. If the switch does not provide
power, a mid-span power injector may be used.
(See Figure 1)
Call Switch Connection
NOTE: Call Switch input and Talkback
functionality referenced below requires
purchase of the Talkback Upgrade license to
enable full Valcom VIP Protocol. Call Switch
input and Talkback is not functional without the
upgrade.
For IP Speakers using Talkback functionality, a call
switch input via screw terminals is provided, labeled
Switch 1 and Ground.
Mute Out Connection: The Mute Out may
optionally be connected to the mute input of
Valcom Classroom audio management systems to
suspend locally originated classroom audio during
intercom announcements.
LED (+) and (-) Connection: LED (+) and
(-) is a current limited output designed to illuminate
an optional LED. The LED is intended to provide
visual indication of call progress. The LED
illumination will flash when the call switch is
pressed and will continue to flash until the call is
answered. The LED illumination will be solid while
a connection to the IP Talkback Speaker is
established.
-10 dB Line Level Out Connection:
The -10dBm Line Level Out may be connected to
up to 40 Valcom Self Amplified Speakers to provide
additional sound reinforcement in an area.

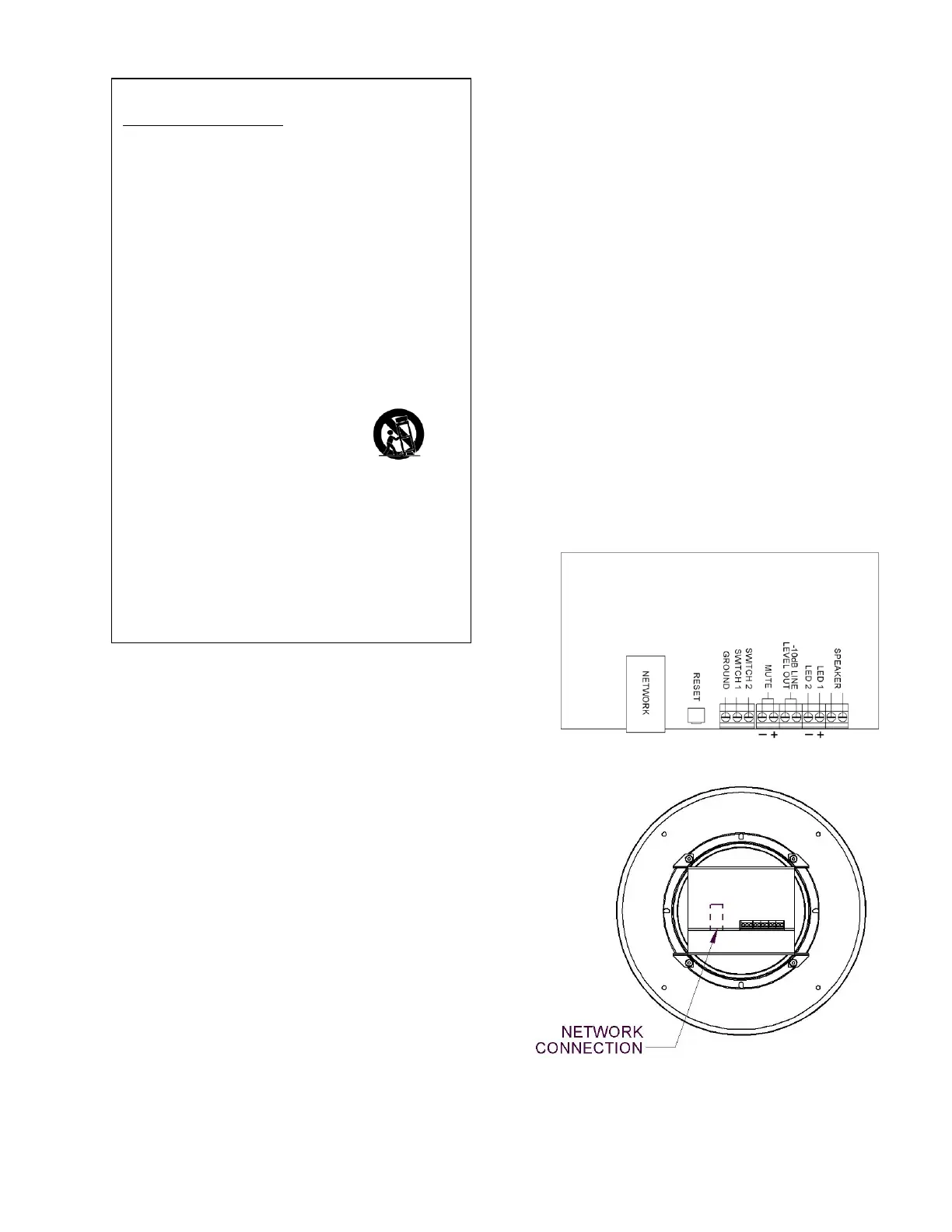

Figure 1. EZ-SPC8 Connections
IMPORTANT SAFETY INFORMATION
CONSIGNES DE SÉCURITÉ IMPORTANTES
1. Read these instructions.
Lisez ces instructions.
2. Keep these instructions.
Conservez ces instructions.
3. Heed all warnings.
Respectez tous les avertissements.
4. Follow all instructions.
Suivez toutes les instructions.
5. Do not use this apparatus near water.
Ne pas utiliser cet appareil près de l'eau.
6. Clean only with dry cloth.
Nettoyer avec un chiffon sec.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
Ne pas bloquer les ouvertures de ventilation. Installer formément aux instructions du
fabricant.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other
apparatus (including amplifiers) that produce heat.
Ne pas installer à proximité de sources de chaleur telles que radiateurs, registres de
chaleur, poêles ou autres appareils (y compris les amplificateurs) produisant de la chaleur.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong. The wide blade and the third prong are provided for your safety. If
the provided plug does not fit into your outlet consult an electrician for replacement of the
obsolete outlet.
Ne pas contourner le dispositif de sécurité de la fiche polarisée ou de mise à la terre. Une
fiche polarisée possède deux lames dont une plus large que l'autre. Une fiche de terre a
deux lames et une troisième broche de mise à la terre. La lame large et la troisième
broche sont fournies pour votre sécurité. Si la fiche fournie ne rentre pas dans votre prise,
veuillez consulter un électricien pour le remplacement de la prise obsolète.
10.Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles and the point where they exit from the apparatus.
11.Only use attachments/accessories specified by the manufacturer.
N'utilisez que des fixations / accessoires spécifiés par le fabricant.
12. Use only with the cart, stand, tripod, bracket or table specified
by the manufacturer or sold with the apparatus. When a cart is
used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
Utilisez uniquement avec le chariot, stand, trépied, support ou table spécifié par le
fabricant ou vendu avec l'appareil. Quand un chariot est utilisé, Soyez prudent lorsque
vous déplacez l'ensemble chariot / appareil pour éviter des blessures dues au
renversement.
13. Unplug this apparatus during lightning storms or when unused for a long period of time.
Débranchez cet appareil pendant les orages ou lorsqu'il n'est pas utilisé pendant une
longue période de temps.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way. Such as when the power supply cord or plug is
damaged, liquid has been spilled, objects have fallen into the apparatus or the
apparatus has been exposed to rain or moisture and does not operate normally or has
been dropped.
Confiez toute réparation à un personnel qualifié. Une réparation est nécessaire lorsque
l'appareil a été endommagé de quelque façon. Par exemple lorsque le cordon
d'alimentation ou la fiche est endommagé, du liquide a été renversé, si des objets sont
tombés dans l'appareil ou le appareil a été exposé à la pluie ou à l'humidité et ne
fonctionne pas normalement ou s'il est tombé.
