Issue 1
1 947529
ONE-WAY
V-1097
One-Way
Page
Control
Unit
AMPLIFIED
Tip - Brown
Ring - White
Ring - Green
Tip - Red
OUTPUT
INPUT
SPEAKER
TALKBACK
V-1097
Talkback
Page
Control
Unit
SPEAKER
Tip - Brown
Ring
Ring
Tip - Red
OUTPUT
INPUT
V-1097
SLIDE VOLUME CONTROL
INTRODUCTION
The V-1097, Slide Volume Control, is a Valcom
Volume Control Unit which can be mounted into
a single-gang electrical box. This unit is
compatible with all Valcom one-way and two-way
speakers.
NOTE: The V-1097 is not designed to
connect directly to the output of high
powered amplifiers.
SPECIFICATIONS
Applications
To control volume of one-way amplified
speaker assemblies in inaccessible areas
To control large groups of one-way amplified
speaker assemblies
To control volume of Valcom talkback
speakers
Dimensions/Weight
4.50"H x 2.75"W x 1.25"D
(11.43cm H x 6.99cm W x 3.18mm D)
Weight: .25 lbs. (0.11 kg)
Connections
Connections when using a One-Way
Control Unit
(Refer to Figure 1)
Connect wall mount volume control input tip
and ring to desired zone output leads from
page control.
Connect wall mount volume control output
tip and ring to speakers.
Connections when using a Talkback Control Unit
(Refer to Figure 2)
Connect wall mount volume control tip input
terminal to tip output lead of talkback page
control unit.
Connect wall mount volume control tip
output terminal to tip lead of talkback
speaker.
Connect ring output of talkback page control
directly to ring of talkback speaker, (do not
connect to V-1097).
Mounting
Surface Mounting - Mount standard single-gang
electrical box. Install faceplate onto electrical
box.
Flush Mounting - Install faceplate onto standard
single-gang electrical box.

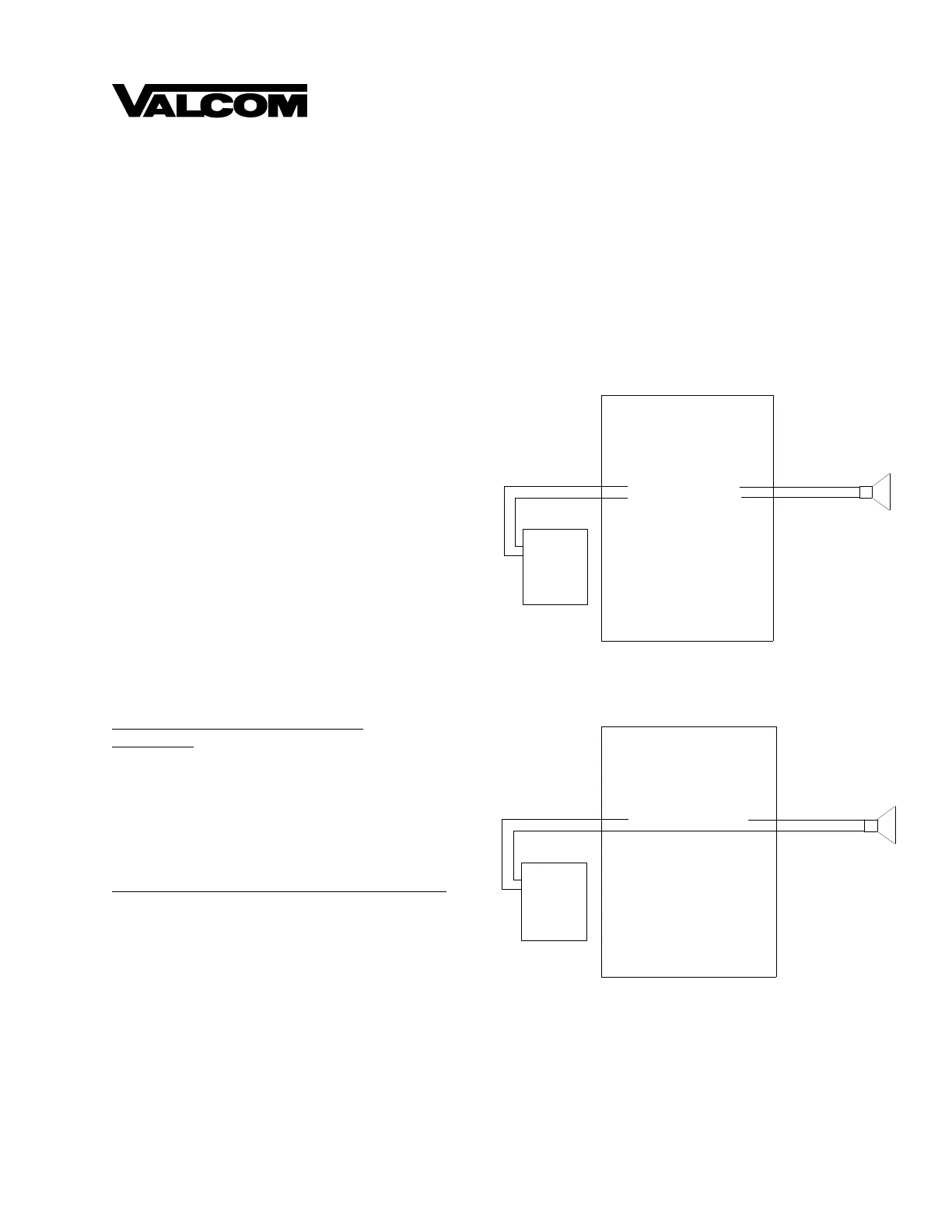

Figure 1. One-Way Connection
Figure 2. Talkback Connection
2 947529
VALCOM LIMITED WARRANTY
Valcom, Inc. warrants its products only to the original purchaser, for its own use, to be free from defects in materials and workmanship under conditions of
normal use and service for a period of one year from the date of shipment. This Limited Warranty obligation shall be limited to the replacement, repair or
refund of any such defective device within the warranty period, provided that:
1. inspection by Valcom, Inc. indicates the validity of the claim;
2. the defect is not the result of damage, misuse or negligence after the original shipment;
3. the product has not been altered in any way or repaired by others and that factory sealed units are unopened (a service charge plus parts
and labor will be applied to units defaced or physically damaged);
4. freight charges for the return of products to Valcom are prepaid;
5. all units 'out of warranty' are subject to a service charge. The service charge will cover minor repairs (major repairs will be subject to
additional charges for parts and labor).
This Limited Warranty is in lieu of and excludes all other warranties, expressed or implied and in no event shall Valcom, Inc. be liable for any
anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection with the purchase, operation,
maintenance, installation, removal or use of the product. The maximum liability of Valcom under this warranty is limited to the purchase price of the
specific Product covered by the warranty.
Disclaimer. Except for the Limited Warranty provided herein, the product is provided “as-is” without any warranty of any kind whatsoever including, without
limitation, any WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT.
This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the carrier should be notified
immediately. Claims for such damage should be filed with the carrier involved in accordance with the F.O.B. point.
Headquarters:
Valcom, Inc.
5614 Hollins Road Roanoke, VA 24019-5056
Phone: (540) 563-2000 FAX: (540) 362-9800
TECHNICAL ASSISTANCE
When trouble is reported, verify the unit is
properly connected and there are no broken
connections leading to this unit.
If trouble still exists, using two clip leads, short
tip in to tip out and ring in to ring out and test
page. If the page works, replace the V-1097. If
the system still does not work continue
troubleshooting. If a spare unit is available,
substitute the spare unit for the suspected unit.
If the trouble has not been located, refer to
Table 1. Identify the symptoms and perform the
actions indicated.
Assistance in troubleshooting is available from
the factory. When calling, you should have a
VOM and a test set and call from the job site.
Call (540) 563-2000 and press 1 for
Technical Support or visit our website at
http://www.valcom.com.
VALCOM equipment is not field repairable.
Valcom, Inc. maintains service facilities in
Roanoke, VA. Should repairs be necessary,
attach a tag to the unit clearly stating your
company name, address, phone number, contact
person and the nature of the problem. Send the
unit to:
Valcom, Inc.
Repair and Return Dept.
5614 Hollins Road
Roanoke, VA 24019-5056
TABLE 1 - TROUBLESHOOTING CHART
Problems
Possible Causes
Verifications
Possible Solutions
No audio output to
speaker.
Open input path.
Place handset across V-1097
input terminals; No audio
present.
Check cabling and cross-
connections to V-1097.
Open output path.
Place handset across speaker
terminal; No audio present.
Check cabling and cross-
connections from V-1097
to speaker.
