Side 1/4

Issue 4

1 947780

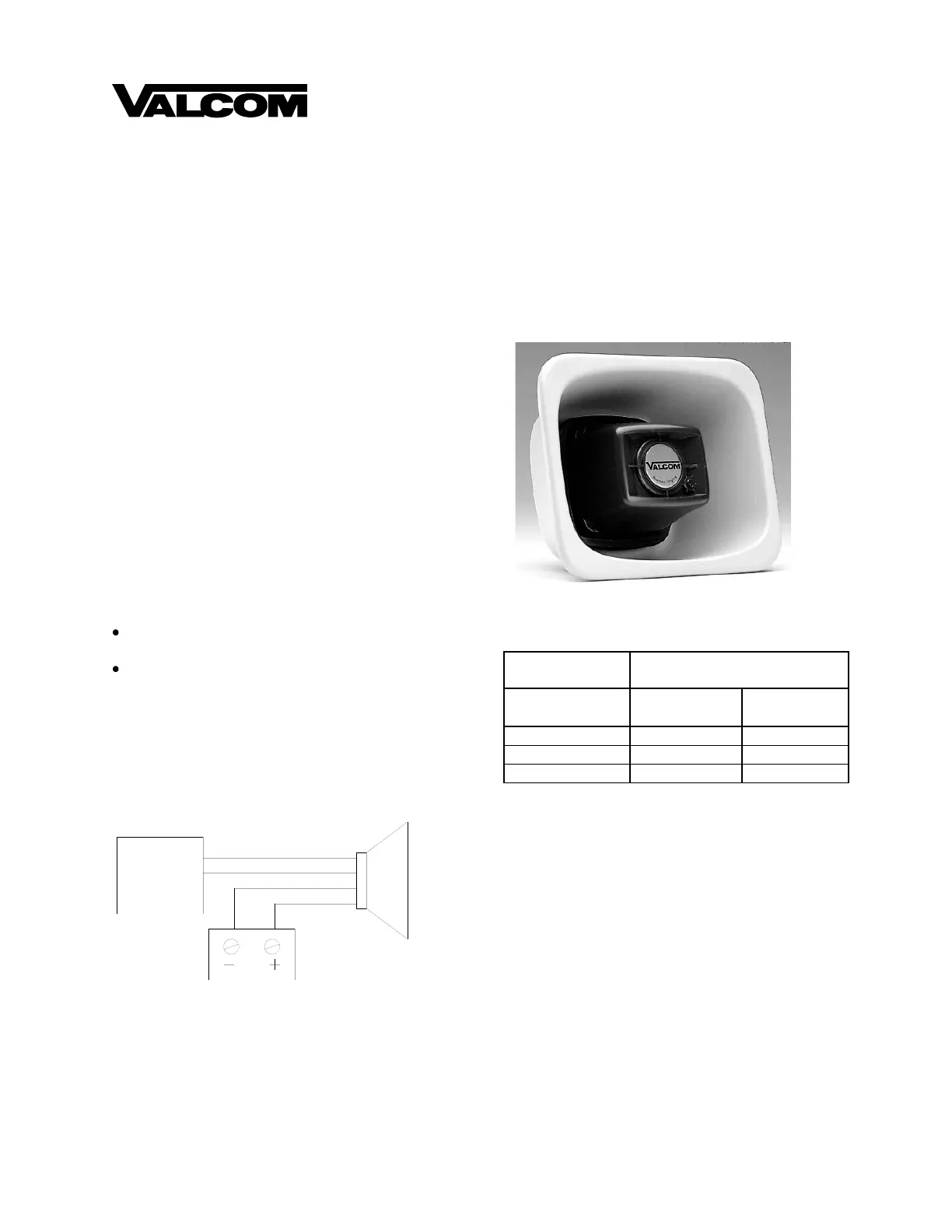

V-1080 FLEXHORN

THREE WATT ONE-WAY PAGING HORN

INTRODUCTION

The Valcom V-1080 Flexhorn is a one-way

self-amplified paging horn designed to provide

voice paging as well as background music. This

horn is weatherproof and can be used indoors or

outside in environments ranging from -20 to

+55°C. A volume control is accessible on the

front of the cone. The horn is offered in gray,

beige and white.

Model V-1080-GY Gray

Model V-1080-BG Beige

Model V-1080-W White

Dimensions/Weight

6.80"H x 8.30"W x 3.30"D

(17.27cm H x 21.08cm W x 8.38cm D)

2.1 lbs. (0.95 kg)

The V-1080 requires -24VDC, 150mA (3 Valcom

Power Units) and is FCC Part 68 Registered

under BAFUSA-69358-KX-N.

CONNECTIONS

NOTE: Do not connect this speaker directly to

a 25/70/100 Volt amplifier as damage to both

the amplifier and speaker may occur. A V-1095

can be used to provide an interface between a

centrally amplified speaker line and Valcom

self-amplified horns.

POWER WIRE RUN

# Horns per

Power Run

Wire Run Length (feet)

V-1080

(3 Watts)

24 AWG

22 AWG

250

400

500

800

760

1200

MOUNTING INSTRUCTIONS

FLUSH MOUNT

Using the template packaged with the speaker,

draw the speaker outline on the wall to be cut.

Make appropriate wiring connections and test the

speaker for operation. Using appropriate

mounting screws (not furnished) drill and mount

the flange as shown.

UNIVERSAL BRACKET

Loosen or separate the universal bracket leaves

by loosening or removing the handle and

hardware. Using the back leaf as a template,

mark the wall through the mounting holes, drill

and mount to the wall using appropriate screws

(not furnished) or mount directly to a junction box.

(Tip/A) Green

(Ring/B) Red

(-24VDC) White

(GND) Black

One-Way

Amplified

Speaker

Page

Out

Valcom Page

Control

Valcom -24VDC

Power Supply

Produkspesifikasjoner

Merke:	Valcom
Kategori:	Ikke kategorisert
Modell:	V-1080 FlexHorn
Vekt:	1250 g
Bredde:	211 mm
Dybde:	84 mm
Høyde:	173 mm
Impedans:	600 Ω
Høyttalerplassering:	Vegg.monterbar
Forsterker:	Innebygget
Produktfarge:	Hvit
Driftstemperatur (T-T):	-20 - 55 °C
Signal-til-støy-forhold (SNR):	-70 dB
Kroppsmateriale:	Polypropylene (PP), Stainless steel
Relativ luftfuktighet under drift (H-H):	0 - 95
Lyd-utgang kanaler:	1.0 kanaler
RMS-rangert strøm/utgangseffekt:	3 W
Utjevner/frekvenskorrigerer:	Nei
Høyttaler type:	1-veis
Frekvensrekkevidde:	400 - 10000 Hz
